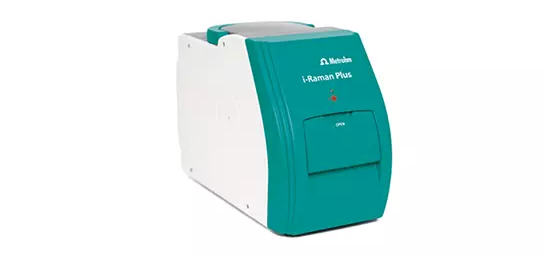

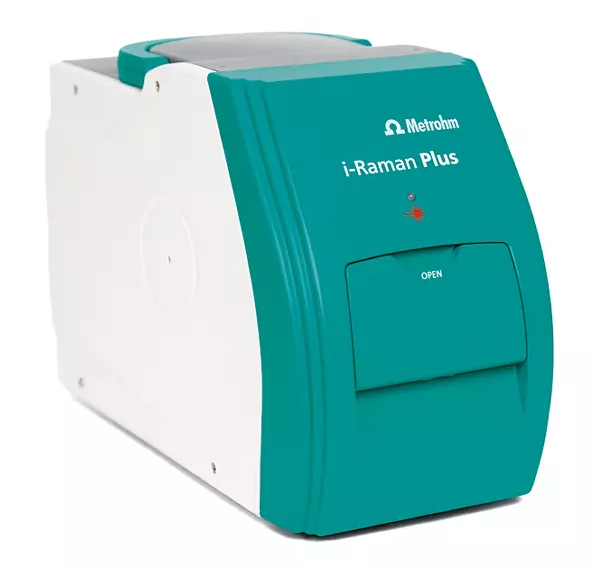

The i-Raman Plus delivers research-level capabilities within a compact and lightweight design.
- Broad spectral coverage and superior resolution for accurate results
- Accessories compatible with the fiber optic probe allow flexible sampling
- Advanced data analysis tools enabled by SpecSuite software
- Samples may be examined at the point of need
Benefits
Accessible, Research-Grade Raman
The i-Raman Plus integrates high spectral resolution with an expansive spectral range, providing comprehensive Raman spectra that are simple to decipher. It is a valuable tool in materials science and pharmaceutical analysis due to its low-frequency Raman cut-on at 65 cm-1, which provides additional chemical and structural insights.
Image Credit: Metrohm AG

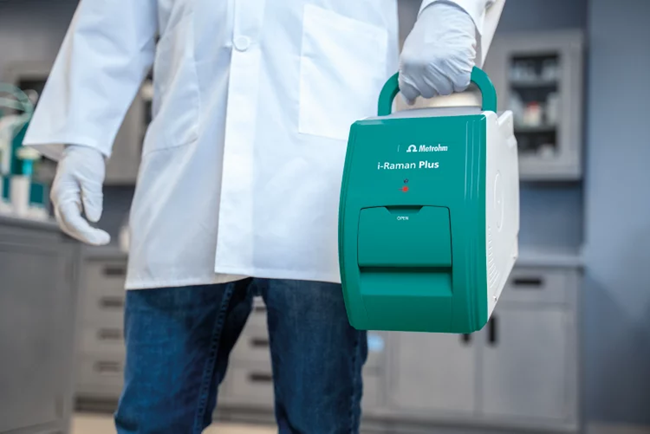

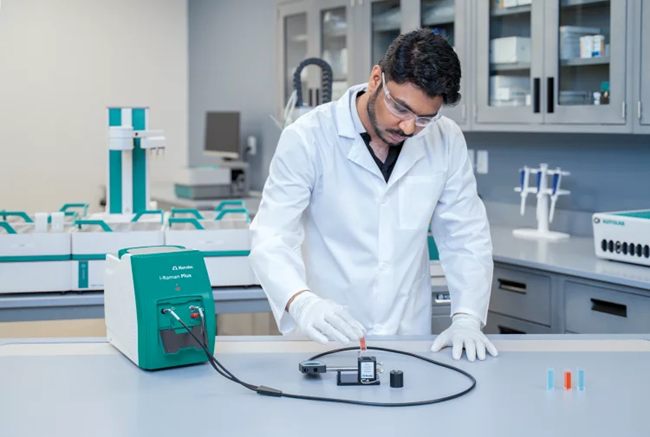

Raman for the Lab and On the Go
A research-grade Raman instrument may be used anywhere, thanks to the i-Raman Plus's portable design and low power consumption. In fields like geology, forensics, and art conservation, where maintaining sample and environmental integrity is crucial, the i-Raman Plus is an excellent choice for moving between lab and outdoor settings.
Image Credit: Metrohm AG
Software Solutions Made Simple
Metrohm's all-inclusive platform, SpecSuite software, facilitates Raman measurements from normal operation to exploratory analysis. SpecSuite is designed to be easy to use and intuitive for users of all skill levels.
The i-Raman Plus with SpecSuite software is a perfect setup for introducing the basic principles of Raman spectroscopy at the undergraduate level.
Systems
Image Credit: Metrohm AG
i-Raman Plus 532
29550010
The compact, portable i-Raman Plus 532 is a research-grade Raman spectrometer that combines wide spectrum coverage and excellent resolution. With a 532 nm laser and a spectral range of 65 to 3400 cm-1, it is ideal for electrochemical research, academic teaching, and materials science.
i-Raman Plus 785HR
29550020
The i-Raman Plus 785HR is a high-performance Raman spectrometer that delivers the highest resolution in a compact, portable design. Equipped with a 785 nm laser and a high-quantum efficiency CCD array detector with TE cooling, it delivers low-noise performance, so it is well-suited for detecting weak Raman signals.
i-Raman Plus 785S
29550030
The i-Raman Plus 785S is a tiny, portable, high-resolution, research-grade Raman spectrometer designed for accuracy and adaptability. With a 785 nm laser and a wide spectral range of 65–3350 cm-1, it delivers excellent performance for quantitative and qualitative analysis.
Options and Upgrades
Sampling
Comprehensive Sampling Options
i-Raman Plus instruments can be employed with a variety of sampling accessories to broaden analysis capabilities to different sample types, including vials, cuvettes, plastic bags, and opaque containers.
Additionally, i-Raman devices may be used to create trace analysis using surface-enhanced Raman spectroscopy (SERS) due to their sensitivity and small size. Trace-level detection is made possible by signal augmentation of up to 106 using SERS substrates.
Software
All the Raman Tools in One Place
SpecSuite is an integrated, robust software platform that supports Raman analysis from discovery through routine operation. Its modules include:
Quantitative and Routine Analysis: Develop reliable calibration models and streamline daily QC and on-site inspection.
Explore: Real-time data visualization and straightforward data acquisition control
Spectral Libraries and Identification: Identify the components of the sample, create and maintain specialized spectral databases, or utilize the Metrohm Comprehensive Raman Library, which contains over 27,000 compounds.
