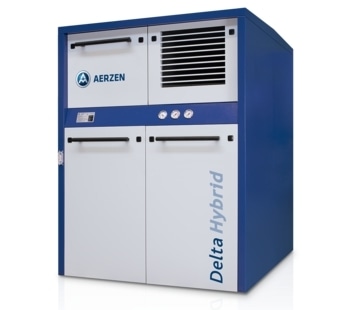

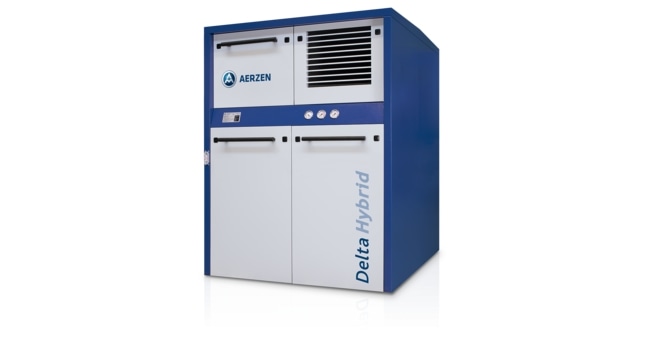

Rotary Lobe Compressors – Delta Hybrid

The Delta Hybrid range of rotary lobe compressors are used in many key industrial production processes. Its design is based upon efficiency.

It is estimated that about 90% of the costs incurred over the lifecycle of a compressor are for the energy it consumes. This presents a huge cost and must be faced in designing for competitiveness and ecological sustainability of a process, in the global arena. For these reasons, AERZEN has focused on making compressors that are energy efficient, saving up to 15% of energy costs. This magnitude of energy reduction means that the return on investment for a machine in this range is 100% within just two years, depending of course upon the volume flow and pressure levels required in the workflow. This epitomizes the outstanding features of the Delta Hybrid.

The Delta Hybrid is a cutting-edge rotary lobe compressor which combines the best of the rotary lobe blower and the screw compressor, thus generating pressure or vacuum in a highly innovative manner with the benefits of both approaches in one.

Low pressure is created by the Roots principle which calls for isochoric compression, while the generation of higher or positive pressures requires internal compression which is most successfully applied by the screw-type compressor. The two-in-one unit is packaged with all required components as standard because of the success of its renowned predecessor, the AERZEN Delta blower and Delta screw compressor, with even better design.

The Delta Hybrid advantages

The Delta Hybrid compressor offers many benefits such as:

  • Unmatched efficiency of energy consumption, with up to 15% savings
  • Reduced costs over the lifecycle of the machine
  • Much larger range of applications and pressures, permitting a control range from 25% to 100%
  • Strong and reliable operation with long periods between scheduled maintenance
  • Oil-free and absorption material-free operation allowing for uncontaminated process air

Technical data

  • Type of technology: the Delta Hybrid is a rotary lobe compressor
  • Design: It operates on negative and positive pressures
  • Volume flow: It handles between 110 and 9,000 m3/h
  • Medium: it compresses air and neutral gases.
  • Conveyance: it is oil-free.
  • Negative pressure: It can achieve up to -700 mbar.
  • Positive pressure: It can produce up to 1500 mbar pressure.

Properties

Driving Processes Economically: From Our Installation to Your Satisfaction

The Delta Hybrid range allows operators to handle it easily and requires minimal maintenance, which has a positive effect upon the profitability and efficiency of the process. This is traceable to the design features which AERZEN focused upon while developing these machines, resulting in a range of compressors which are user-friendly and bring smiles at the sight of a healthy bottom line.

Energy Efficiency

The Delta Hybrid achieves up to 15% savings on energy consumption. It offers a control range between 25% and 100%. Its use leads to reduced losses of pressure and air flow. It uses advanced IE3 engines which are of premium performance. It features a belt drive which helps ensure precise volume flow.

More Pressure Ranges, More Applications

The Delta Hybrid extends the range of applications to positive pressures of up to 1500 mbar and vacuums of up to -700 mbar. It can handle outlet temperatures from 160°C to 230°C.

No Absorption Material

The absence of absorption material in this compressor means that the noise level is reduced as the discharge muffler redirects process air rather than the absorption material. Also, the air rerouted is free of this material and therefore free of contaminants, which is an important consideration in the food industry, for instance. It is certified as a spark extinguisher in compliance with ATEX specifications.

Reliability and Durability

The Delta Hybrid has a sturdy construction and its patented bearings help to give it a lifespan of over 60 000 hours when functioning at differential pressures of 1.000 mbar. Its driving chamber and conveying chamber seals are also patented for long life. Its operation is completely oil-free and therefore class 0 as per ISO 8573-1.

In short, the Delta Hybrid lends itself to use in many industrial processes, especially when they require for air or neutral gases to be conveyed in an oil-free manner. It is available in nominal sizes ranging from DN 100 to DN 300 for both negative and positive pressures.

Applications

Some of the applications for which the Delta Hybrid is suitable include:

  • Sewage treatment
  • Purification of potable water
  • Conveying bulk materials via vacuum or pressure pneumatics
  • Aeration of rivers or lakes
  • Industrial sewage treatment
  • Chemical production or processing
  • Glass/paper manufacturing facilities
  • Environmental purification or sustainable technologies

Many other applications are also coming up in new fields.

Performances and Dimensions

Negative Pressures

  • Type of technology: Rotary lobe compressors
  • Series: Rotary lobe compressors Delta Hybrid
  • Design: Negative pressure (6)
  • Medium: Air, neutral gases
  • Conveying / compression: Oil-free

1. D 12E

Performance Data

  • Pressure difference: -700 mbar
  • Volume flow: 650 m3/h
  • Motor power: 18 kw
  • Sound pressure: max.72 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

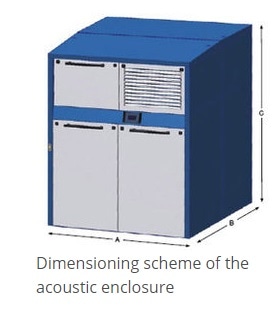

Dimensions and Weights

  • Width (A) 1250 mm
  • Depth (B) 1350 mm
  • Height (C): 1500 mm
  • Nominal size DN 100
  • Weight 590 kg

2. D 24 E

Performance Data

  • Pressure difference: -700 mbar
  • Volume flow: 1320 m3/h
  • Motor power: 37 kw
  • Sound pressure: max.73 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1250 mm
  • Depth (B) 1350 mm
  • Height (C): 1500 mm
  • Nominal size DN 125
  • Weight 635 kg

3. D 36 E

Performance Data

  • Pressure difference: -700 mbar
  • Volume flow: 2000 m3/h
  • Motor power: 55 kw
  • Sound pressure: max.76 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1500 mm
  • Depth (B) 1800 mm
  • Height (C): 1980 mm
  • Nominal size DN 150
  • Weight 1098 kg

4. D 62 E

Performance Data

  • Pressure difference: -700 mbar
  • Volume flow: 3300 m3/h
  • Motor power: 90 kw
  • Sound pressure: max.79 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and weights

  • Width (A) 1700 mm
  • Depth (B) 2055 mm
  • Height (C): 2111 mm
  • Nominal size DN 200
  • Weight 1400 kg

5. D 98 E

Performance Data

  • Pressure difference: -700 mbar
  • Volume flow: 5500 m3/h
  • Motor power: 132 kw
  • Sound pressure: max.78 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1900 mm
  • Depth (B) 2200 mm
  • Height (C): 2345 mm
  • Nominal size DN 250
  • Weight 3300 kg

6. D 152 E

Performance Data

  • Pressure difference: -700 mbar
  • Volume flow: 8500 m3/h
  • Motor power: 160 kw
  • Sound pressure: max.79 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 2100 mm
  • Depth (B) 2850 mm
  • Height (C): 2345 mm
  • Nominal size DN 300
  • Weight 4050 kg

Positive Pressures

  • Type of technology: Rotary lobe compressors
  • Series: Rotary lobe compressors Delta Hybrid
  • Design: Positive pressure (16)
  • Medium: Air , neutral gases
  • Conveying / compression: Oil-free

1. D 12 H

Performance Data

  • Pressure difference: 1500 mbar
  • Volume flow: 670 m3/h
  • Motor power: 37 kw
  • Sound pressure: max.73 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1250 mm
  • Depth (B) 1350 mm
  • Height (C): 1500 mm
  • Nominal size DN 100
  • Weight 590 kg

2. D 12 S

Performance Data

  • Pressure difference: 1000 mbar
  • Volume flow: 690 m3/h
  • Motor power: 30 kw
  • Sound pressure: max.72 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1250 mm
  • Depth (B) 1350 mm
  • Height (C): 1500 mm
  • Nominal size DN 100
  • Weight 590 kg

3. D 17 L

Performance Data

  • Pressure difference: 800 mbar
  • Volume flow: 810 m3/h
  • Motor power: 30 kw
  • Sound pressure: max.66 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1250 mm
  • Depth (B) 1350 mm
  • Height (C): 1500 mm
  • Nominal size DN 125
  • Weight 600 kg

4. D 24 H

Performance Data

  • Pressure difference: 1500 mbar
  • Volume flow: 1370 m3/h
  • Motor power: 75 kw
  • Sound pressure: max. 76 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1250 mm
  • Depth (B) 1350 mm
  • Height (C): 1500 mm
  • Nominal size DN 125
  • Weight 635 kg

5. D 24 S

Performance Data

  • Pressure difference: 1000 mbar
  • Volume flow: 1390 m3/h
  • Motor power: 55 kw
  • Sound pressure: max.74 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1250 mm
  • Depth (B) 1350 mm
  • Height (C): 1500 mm
  • Nominal size DN 125
  • Weight 635 kg

6. D 28 L

Performance Data

  • Pressure difference: 800 mbar
  • Volume flow: 1340 m3/h
  • Motor power: 45 kw
  • Sound pressure: max. 70 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1250 mm
  • Depth (B) 1350 mm
  • Height (C): 1500 mm
  • Nominal size DN 125
  • Weight 1026 kg

7. D 36 H

Performance Data

  • Pressure difference: 1500 mbar
  • Volume flow: 1900 m3/h
  • Motor power: 110 kw
  • Sound pressure: max. 76 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1500 mm
  • Depth (B) 1800 mm
  • Height (C): 1980 mm
  • Nominal size DN 150
  • Weight 1098 kg

8. D 36 S

Performance Data

  • Pressure difference: 1000 mbar
  • Volume flow: 2150 m3/h
  • Motor power: 75 kw
  • Sound pressure: max. 76 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1500 mm
  • Depth (B) 1800 mm
  • Height (C): 1980 mm
  • Nominal size DN 150
  • Weight 1098 kg

9. D 46 L

Performance Data

  • Pressure difference: 800 mbar
  • Volume flow: 2350 m3/h
  • Motor power: 75 kw
  • Sound pressure: max. 70 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1700 mm
  • Depth (B) 2055 mm
  • Height (C): 2111 mm
  • Nominal size DN 150
  • Weight 1305 kg

10. D 62 H

Performance Data

  • Pressure difference: 1500 mbar
  • Volume flow: 3400 m3/h
  • Motor power: 160 kw
  • Sound pressure: max. 81 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1700 mm
  • Depth (B) 2055 mm
  • Height (C): 2111 mm
  • Nominal size DN 200
  • Weight 1400 kg

11. D 62 H

Performance Data

  • Pressure difference: 1000 mbar
  • Volume flow: 3500 m3/h
  • Motor power: 110 kw
  • Sound pressure: max. 79 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1700 mm
  • Depth (B) 2055 mm
  • Height (C): 2111 mm
  • Nominal size DN 200
  • Weight 1400 kg

12. D 75 L

Performance Data

  • Pressure difference: 800 mbar
  • Volume flow: 3870 m3/h
  • Motor power: 132 kw
  • Sound pressure: max. 77 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1900 mm
  • Depth (B) 2200 mm
  • Height (C): 2345 mm
  • Nominal size DN 250
  • Weight 2015 kg

13. D 98 H

Performance Data

  • Pressure difference: 1500 mbar
  • Volume flow: 5600 m3/h
  • Motor power: 250 kw
  • Sound pressure: max. 81 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1900 mm
  • Depth (B) 2200 mm
  • Height (C): 2345 mm
  • Nominal size DN 250
  • Weight 3300 kg

14. D 152 H

Performance Data

  • Pressure difference: 1500 mbar
  • Volume flow: 8700 m3/h
  • Motor power: 400 kw
  • Sound pressure: max. 81 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 2100 mm
  • Depth (B) 2850 mm
  • Height (C): 2345 mm
  • Nominal size DN 300
  • Weight 4050 kg

15. D 152 S

Performance Data

  • Pressure difference: 1000 mbar
  • Volume flow: 8900 m3/h
  • Motor power: 315 kw
  • Sound pressure: max. 80 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 2100 mm
  • Depth (B) 2850 mm
  • Height (C): 2345 mm
  • Nominal size DN 150
  • Weight 4050 kg

These performance data may change with technical alterations in the product. The weight and dimensions are of the machine with the acoustic enclosure. The weight given is an estimate and does not include the motor and belt drive.
