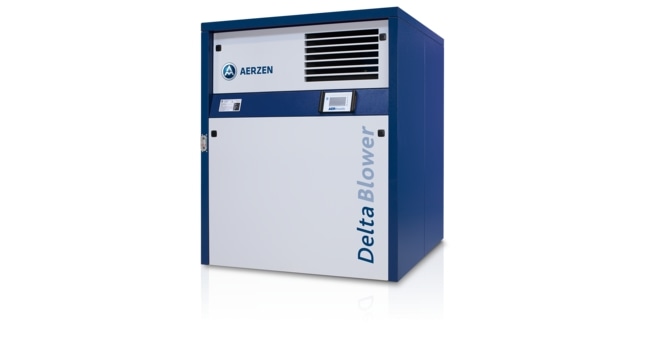

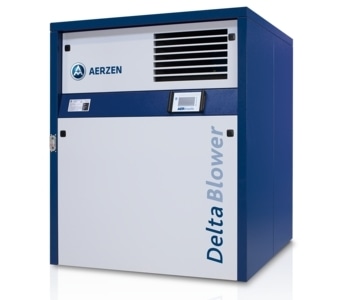

Rotary Lobe Blowers for Air and Neutral Gases - Delta Blower Generation 5

The Delta Blower Generation 5 rotary lobe blowers are sturdy and long-lived machines capable of running through innumerable compressor cycles without faltering. They represent the acme of technical innovation aimed at future customer needs, combined with decades of experience in designing successive generations of blowers, and thus deliver undiluted success. Aerzener Maschinenfabrik is the first company to manufacture compact blower units back in 1960, and this has been part of its flagship range ever since. The Delta Blower Generation 5 brings down this tradition of success to the fifth generation.

Advantages

The AERZEN Delta Blower Generation 5 offers unique benefits:

  • The noise levels are reduced by careful engineering
  • The operation is simple and the maintenance needs are low
  • The machine incorporates a mechanical fan
  • It does not use absorption material
  • It can be configured in a side-by-side design which helps it fit into confined installation spaces

It is highly flexible to various applications and its design can be adapted to deliver even more benefits such as:

  • Energy optimization
  • Base support from Aerzen  which has been certified as spark arrester for applications conforming to ATEX
  • Oil-free operation making it a class 0 device according to ISO 8573-1 certifications
  • Blower stage has been patented for its reduced pulsation due to the unique operating mode
  • Standard application for energy-conserving motors class IE3

It has automatic belt retention because of the hinged motor mounting plate

Technical Data

  • Type of technology: the Delta Generation 5 Blower is a positive displacement blower.
  • Design: It operates on negative and positive pressures.
  • Volume flow: It handles between 30 and 15,000 m3/h.
  • Medium: it compresses air and neutral gases.
  • Conveyance: it is oil-free.
  • Negative pressure: It can achieve up to -500 mbar.
  • Positive pressure: It can produce up to 1000 mbar pressure.

Properties

Adaptability

All blowers are not the same by any means.

  • The Delta Generation 5 Blower from Aerzen is built like a workhorse to serve a range of applications requiring from 25% to 100% power.
  • It can be modified in many different ways to customize its use.

Compact Footprint

It is also designed for small spaces, and can be adapted to fit side-by-side in cramped installations, thus requiring smaller engine rooms.

User-Friendly Design

  • It is designed to run easily and with low maintenance, with the controls and maintenance tools being located on the front of the machine.
  • The oil levels can be read easily from the outside and with the machine operating.
  • It is plug-and-play, meaning it is pre-configured, with the parameters already specified, making it ready to run as soon as installed.

No Absorption Material

  • It does not use absorption material which makes it suitable for use in conveying bulk food items pneumatically, since it does not introduce any contaminants
  • This also means it can be used for water treatment securely and without energy losses, because no absorption material is present to deposit on the aeration plates, clog up filters, or cause pressure losses

Eco-Friendly Machines

  • The Delta Generation 5 Blowers are fitted with class IE3 motors as standard, making them very energy-efficient
  • The new E-design enhances their efficiency even more

Low noise Levels

  • The reduction in noise makes these machines suitable for installation even in strictly regulated areas such as those with a considerable population and in compliance with noise standards in production plants
  • The optimized acoustic hood allows minimal noise levels
  • The patented blower stage in this series allows for an integrated process which reduces pulsations

Applications

Universal Application

The Delta Generation 5 blowers are suitable for any geographical zone with their robust construction and patented non-pulsatile technology. Compact but adaptable, they can be used outdoors even in harsh terrain, as well as in insulated indoors installations. They may be used as independent units or as part of large assembled batteries. They can be used in earthquake-prone regions just as safely as on board a naval vessel or any other moving equipment setup.

Applications

Some of the most common applications include:

  • Treatment of water and wastewater
  • Pneumatic transport of bulk materials along a conveyor tract
  • Aeration
  • Backwashing of filter media
  • Conveying gas
  • Removal of dust
  • Production of vacuum
  • Biogas treatment

Industrial Applications

  • Sewage treatment
  • Chemical facilities
  • Process technology
  • Power production
  • Cement and lime production
  • Foodstuffs
  • Paper

Performances and Dimensions

Positive/ Negative Pressure Blowers

1. GM 3 S-G5

Performance Data

  • Pressure difference: -500 mbar
  • Volume flow: 210 m3/h
  • Motor power: 7.5 kw
  • Sound pressure: max.68 dB(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

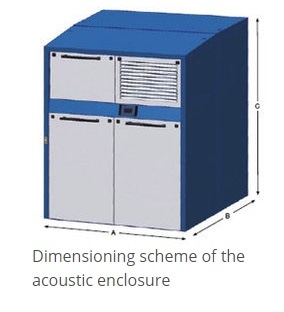

Dimensions and Weights

  • Width (A)800 mm
  • Depth (B) 800 mm
  • Height (C): 1055 mm
  • Nominal size DN 50
  • Weight 212 kg

2. GM 4 S-G5

Performance Data

  • Pressure difference: 1000 mbar
  • Volume flow: 342 m3/h
  • Motor power: 15 kw
  • Sound pressure: max.70 dB(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 925 mm
  • Depth (B) 1135 mm
  • Height (C): 1280 mm
  • Nominal size DN 80
  • Weight 299 kg

3. GM 7 L-G5

Performance Data

  • Pressure difference: 700 mbar
  • Volume flow: 493 m3/h
  • Motor power: 15 kw
  • Sound pressure: max.70 dB(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 925 mm
  • Depth (B) 1135 mm
  • Height (C): 1280 mm
  • Nominal size DN 80
  • Weight 304 kg

4. GM 10 S-G5 / DN 80

Performance Data

  • Pressure difference: 1000 mbar
  • Volume flow: 542 m3/h
  • Motor power: 30 kw
  • Sound pressure: max.70 dB(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 925 mm
  • Depth (B) 1135 mm
  • Height (C): 1280 mm
  • Nominal size DN 80
  • Weight 328 kg

5. GM 10 S-G5 / DN 100

Performance Data

  • Pressure difference: 1000 mbar
  • Volume flow: 696 m3/h
  • Motor power: 30 kw
  • Sound pressure: max.73 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1250 mm
  • Depth (B) 1350 mm
  • Height (C): 1500 mm
  • Nominal size DN 100
  • Weight 496 kg

6. GM 15 L-G5

Performance Data

  • Pressure difference: 700 mbar
  • Volume flow: 1038 m3/h
  • Motor power: 30 kw
  • Sound pressure: max.73 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1250 mm
  • Depth (B) 1350 mm
  • Height (C): 1500 mm
  • Nominal size DN 100
  • Weight 511 kg

7. GM 25 S-G5

Performance Data

  • Pressure difference: 1000 mbar
  • Volume flow: 1452 m3/h
  • Motor power: 55 kw
  • Sound pressure: max.73 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1250 mm
  • Depth (B) 1350 mm
  • Height (C): 1500 mm
  • Nominal size DN 125
  • Weight 567 kg

8. GM 30 L-G5

Performance Data

  • Pressure difference: 700 mbar
  • Volume flow: 2,082 m3/h
  • Motor power: 75 kw
  • Sound pressure: max.75 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1500 mm
  • Depth (B) 1800 mm
  • Height (C): 1900 mm
  • Nominal size DN 150
  • Weight 1020 kg

9. GM 35 S-G5

Performance Data

  • Pressure difference: 1000 mbar
  • Volume flow: 2418 m3/h
  • Motor power: 90 kw
  • Sound pressure: max.75 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1500 mm
  • Depth (B) 1800 mm
  • Height (C): 1900 mm
  • Nominal size DN 150
  • Weight 1110 kg

10. GM 50 L-G5/DN 150

Performance Data

  • Pressure difference: 700 mbar
  • Volume flow: 2610 m3/h
  • Motor power: 75 kw
  • Sound pressure: max.75 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1500 mm
  • Depth (B) 1800 mm
  • Height (C): 1900 mm
  • Nominal size DN 150
  • Weight 1160 kg

11. GM 50 L-G5/DN 200

Performance Data

  • Pressure difference: 700 mbar
  • Volume flow: 3306 m3/h
  • Motor power: 90 kw
  • Sound pressure: max.78 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1700 mm
  • Depth (B) 2055 mm
  • Height (C): 2111 mm
  • Nominal size DN 200
  • Weight 1475 kg

12. GM 60 S-G5

Performance Data

  • Pressure difference: 1000 mbar
  • Volume flow: 3540 m3/h
  • Motor power: 132 kw
  • Sound pressure: max.78 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1700 mm
  • Depth (B) 2055 mm
  • Height (C): 2111 mm
  • Nominal size DN 200
  • Weight 1605 kg

13. GM 80 L-G5

Performance Data

  • Pressure difference: 700 mbar
  • Volume flow: 5034 m3/h
  • Motor power: 160 kw
  • Sound pressure: max.80 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1900 mm
  • Depth (B) 2200 mm
  • Height (C): 2308 mm
  • Nominal size DN 250
  • Weight 2200 kg

14. GM 90 S-G5

Performance Data

  • Pressure difference: 1000 mbar
  • Volume flow: 5418 m3/h
  • Motor power: 200kw
  • Sound pressure: max.81 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 1900 mm
  • Depth (B) 2200 mm
  • Height (C): 2308 mm
  • Nominal size DN 250
  • Weight 2270 kg

15. GM 130 L-G5

Performance Data

  • Pressure difference: 600 mbar
  • Volume flow: 8040 m3/h
  • Motor power: 200 kw
  • Sound pressure: max.84 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 2100 mm
  • Depth (B) 2850 mm
  • Height (C): 2345 mm
  • Nominal size DN 300
  • Weight 3410 kg

16. GM 150 S-G5

Performance Data

  • Pressure difference: 1000 mbar
  • Volume flow: 9120 m3/h
  • Motor power: 355 kw
  • Sound pressure: max.84 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 2100 mm
  • Depth (B) 2850 mm
  • Height (C): 2345 mm
  • Nominal size DN 300
  • Weight 3750 kg

17. GM 220L

Performance Data

  • Pressure difference: 1000 mbar
  • Volume flow: 12,800 m3/h
  • Motor power: 400 kw
  • Sound pressure: max.82 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 2800 mm
  • Depth (B) 4304 mm
  • Height (C): 3500 mm
  • Nominal size DN 400
  • Weight 8240 kg

18. GM 240 S

Performance Data

  • Pressure difference: 1000 mbar
  • Volume flow: 15, 000 m3/h
  • Motor power: 400 kw
  • Sound pressure: max.80 db(A)
  • Sound pressure level without blow-off noise, with acoustic enclosure.

Dimensions and Weights

  • Width (A) 2800 mm
  • Depth (B) 4304 mm
  • Height (C): 3500 mm
  • Nominal size DN 400
  • Weight 8630 kg

These performance data may change with technical alterations in the product. The weight and dimensions are of the machine with the acoustic enclosure. The weight given is an estimate and does not include the motor and belt drive.
