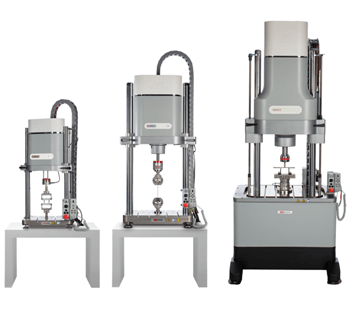

With over ten years of performing tests over billions of cycles, ElectroPuls systems are the proven materials testing instruments using patented linear motor technology. Offering high-frequency fatigue testing and slow-speed static, this versatile testing capability means ElectroPuls systems are suitable for any lab or office space. Select from axial only or combined axial-torsion systems that can supply up to 10 kN and 100 Nm. Available in three sizes, just pick the one that's appropriate for your needs. The ElectroPuls is a simpler, smarter, safer way to meet your testing requirements.
Simpler
Redefining the Test Space
Smarter
Redefining the Testing Experience
Capability without Complexity
Safer
Safety Without Sacrificing Usability
Secure Workflow with Low & High drive power
ElectroPuls Applications
ElectroPuls systems offer excellent versatility in testing solutions in a range of different industries, including consumer electronics, orthopedics, biomedical, and research institutions. To help users explore numerous different customer applications running on ElectroPuls, the company has grouped them into the following categories: Validation, Materials, Simulation, and Universal.
| |
|
 |
 |
 |
| |
|
E1000 |
E3000 |
E10000 |
| Dynamic Linear Force Capacity |
±N |
1000 |
3000 |
10000 |
Torque Capacity
(on bi-axial variants) |
±Nm |
- |
25 |
100 |
| Linear Stroke |
mm |
60 |
60 |
60 |
| Torsional Rotation |
- |
- |
up to ±16 revolutions |
up to ±16 revolutions |
| Mounting |
- |
Table |
Table |
Floor |
