The VibroGo® from Polytec is a battery-powered vibrometer, truly portable and suitable for field studies with faster and easier condition monitoring of machines and facilities on the run. Noise and vibrations are detected by the portable sensors and the values are directly displayed in the time and frequency domain.
The system also enables on-board analysis in the field, whilst enveloping a broad frequency, ranging up to 320 kHz. The exceptional resolution accompanied by high linearity across the entire frequency range offers a simple and accurate analysis tool.
The VibroGo® can be employed for an enhanced understanding of the dynamics and acoustics in nature and technology for product development, research and quality assurance.
Highlights
- Touch screen and autofocus enables simple operation
- Facilitates on-board storage and faster analysis of measurement data
- Accurate analysis of acoustics and dynamics in the field or laboratory
- The system is lightweight, versatile and outdoor-proof (IP64), and has an optional mobile power supply, standing up to 3 hours
- Enables measuring of DC up to 320 kHz and velocities up to 6 m/second, from a safe distance of up to 30 m
- Facilitates wireless measurement and remote control options from any place
- Acceleration and displacement are added as additional output signals
- Executes analog and digital signal outputs
On-Board Data Recording and Monitoring
Connectivity may become challenging at any place and time. The system enables measurement on the run and records vibration measurement data for several hours, simultaneously checking and verifying the signals and finetuning the settings instantly.
The completely self-sufficient operation ensures the delivery of valuable data for further processing and sharing

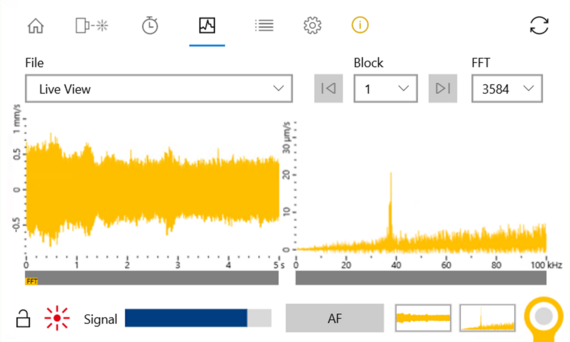

Integrated data recorder and monitoring of data on-board and via any web browser. Image Credit: Polytec
Measuring Acoustics and Dynamics on the Go
The VibroGo is an ideal system with portability, multi-purpose and non-contact vibration sensor characteristics. The lightweight tripod can be used for quick setup. Mobile power supply facilitates independent operation for 3 hours.
The system enables a safe measurement of machinery vibration at difficult-to-access or hazardous regions due to high voltage, temperature or radiation from a sufficient distance. Ethernet and wireless connectivity options enable measurement and remote control from anywhere, for comfortable sensor configuration including data transfer.

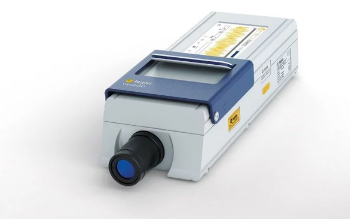

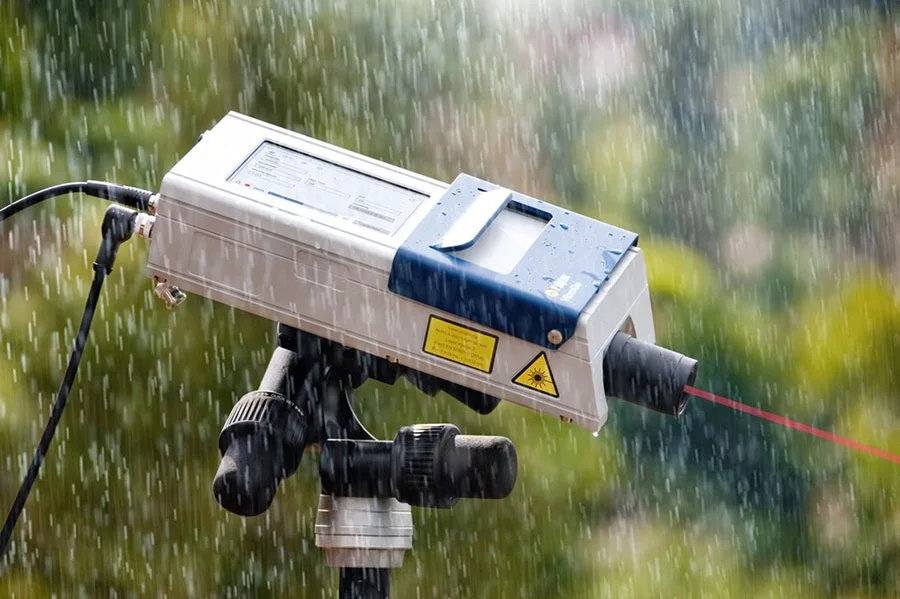

VibroGo laser vibration sensor for stand-off condition monitoring. Image Credit: Polytec
VibroGo with on-board recording and monitoring of measurement data. Image Credit: Polytec

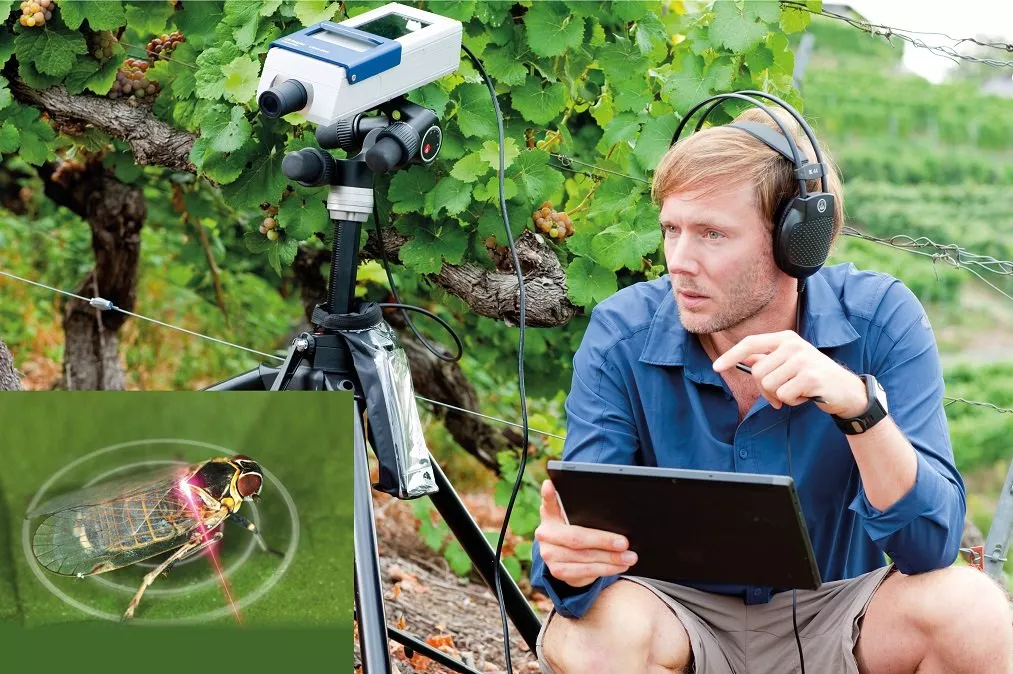

Field measurements like entomology for pest control with VibroGo. Image Credit: Polytec

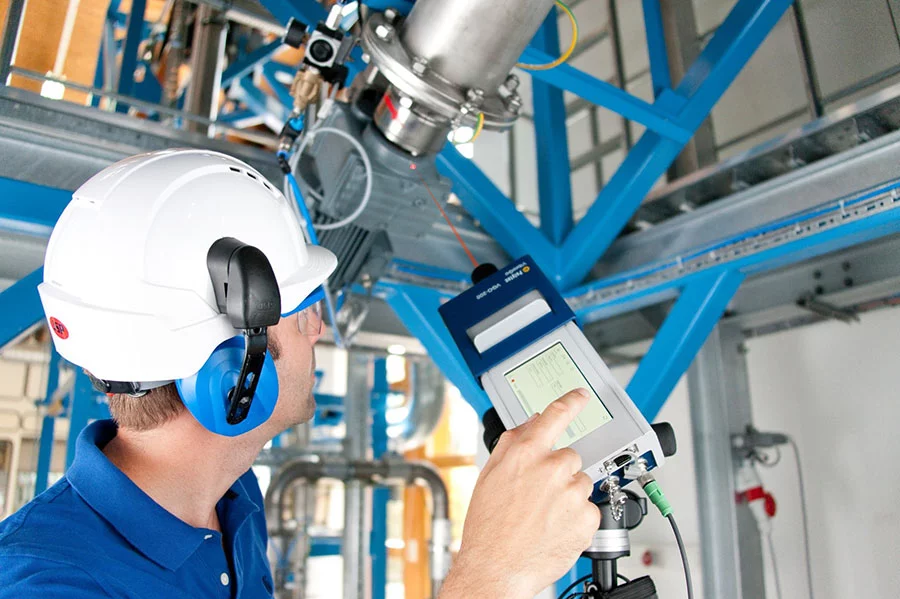

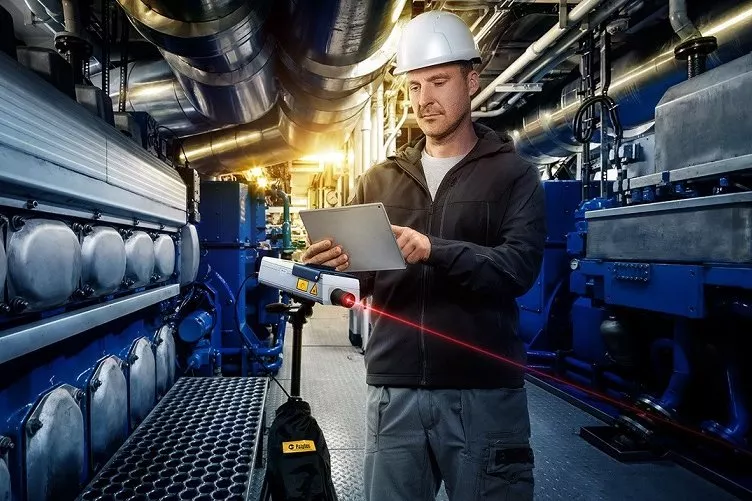

Condition monitoring in industrial plants and on the machine with portable laser vibration sensor VibroGo. Image Credit: Polytec
Outdoor, battery-powered measurement for biological research and entomology. Image Credit: Polytec

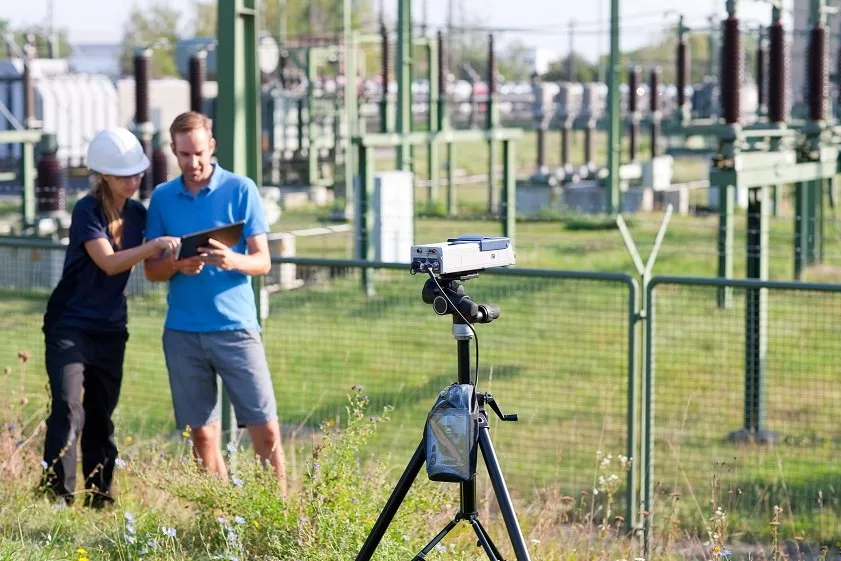

Remote inspection in hazardous areas from a safe distance. Image Credit: Polytec
Truly Portable Laser Vibration Measurement — VibroGo®
On the go with VibroGo® – Truly portable vibration measurement
Video Credit: Polytec
Related Areas of Applications
- Biology and medicine
- Industrial quality assurance
- Electronics, semiconductors and solar
Accessories and Components
Compliance with Standards
Source: Polytec
| . |
. |
| Laser safety |
IEC/EN 60825-1 |
| Electrical safety |
IEC/EN 61010-1 |
| EMC |
IEC/EN 61326-1. Emission: Limit class A
IEC/EN 61000-3-2 and 61000-3-3.
Immunity: IEC/EN 61000-4-2 to 61000-4-6 and IEC/EN 61000-4-11 |

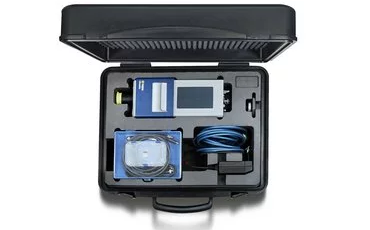

Transportation Case
The VIB-A-CAS16 is a robust transportation case for VibroGo, which is included with the sensor.
Image Credit: Polytec
Optical Accessories

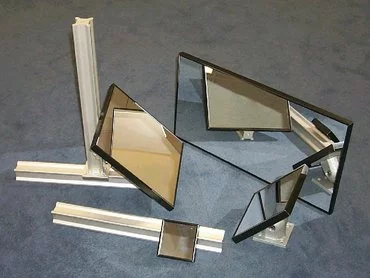

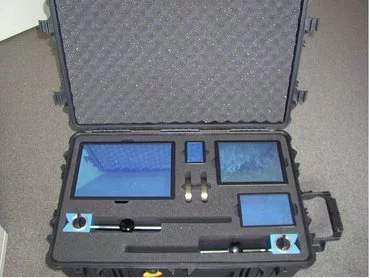

A-MIR-xxxx Mirror Sets
The mirror sets from Polytec comprise different sizes of mirrors to support the setup of the measurement.
Image Credit: Polytec
OFV-036-M Pan/Tilt Adjustable Mirror
This component has a mirror diameter of 25 mm.
Image Credit: Polytec
Tripods, Test Stands, Positioning Stages

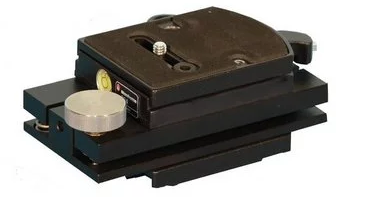

VIB-A-P01 Tripod Mountable Tilt Stage
Image Credit: Polytec

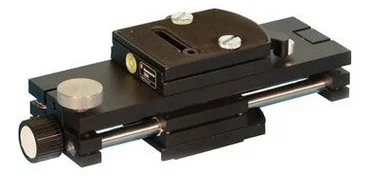

VIB-A-P02 Tripod Mountable Traverse/Tilt Stage
Image Credit: Polytec
VIB-A-P06 Tripod Mountable X/Y/Tilt Stage
Image Credit: Polytec

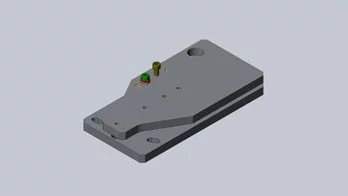

VIB-A-P07 Pan/Tilt Adjustable Mounting Plate
This piece of equipment is designed for installation in industrial production lines, enabling fine adjustment of the tilt and rotation angles by ±1.3°.
Image Credit: Polytec

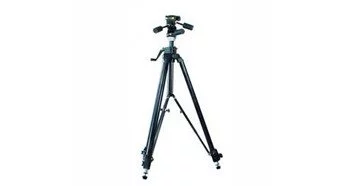

VIB-A-T02 Tripod with Pan/Tilt Head
Image Credit: Polytec

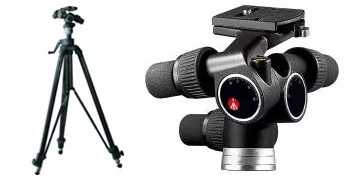

VIB-A-T05 Tripod with Geared Pan/Tilt Head
Image Credit: Polytec

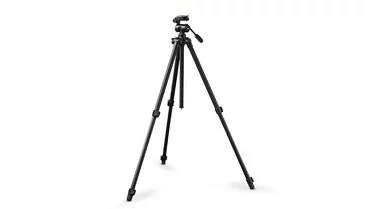

VIB-A-T08 Tripod
Image Credit: Polytec
Software, Data Acquisition

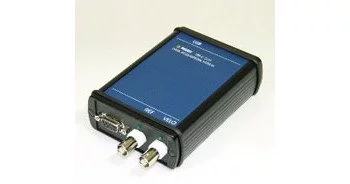

Data Acquisition and Analysis Software
The system includes an easy-to-use vibration analysis software loaded with 2-channel USB data acquisition ranging up to 20 kHz.
Image Credit: Polytec
Cables
A-CBL-0001 Ethernet Cable RJ 45/M12 5 m
Ethernet cable provided for the transfer of digital data between VibroGo and a computer (requires VibSoft 5.5 or newer).
Image Credit: Polytec
A-CBL-0002 Ethernet Cable RJ 45/M12 10 m
An Ethernet cable to facilitate digital data transfer between a computer and VibroGo (requires VibSoft 5.5 or newer).
Image Credit: Polytec
VGO-C-200-C04 Trigger Cable 1.5 m
This cable is used for connection with the Trigger input (CON 4) and is included in the scope of delivery of VibroGo.
Image Credit: Polytec
Power Supply

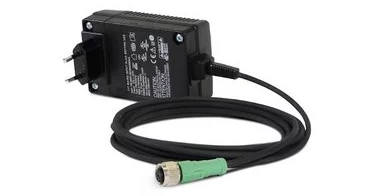

A-PPS-01 Plug-in Power Supply
A plug-in power supply with 12 V AC/DC capability is included in the scope of delivery of VibroGo.
Image Credit: Polytec

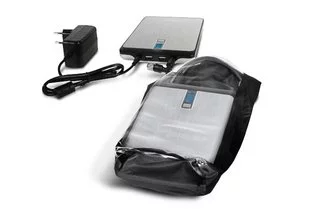

A-MPS-001 Mobile Power Supply
The system comes with a high-performance lightweight rechargeable battery (lithium polymer, A-MPS-PB1) to facilitate mobile power supply.
Image Credit: Polytec
Wireless Connectivity

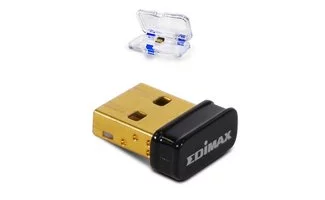

A-WIC-001 WLAN-Stick CE
CE-certified WLAN stick enables wireless access. This component is for use in all countries in the EU and Switzerland, South Africa, India, Qatar and Oman.
Image Credit: Polytec

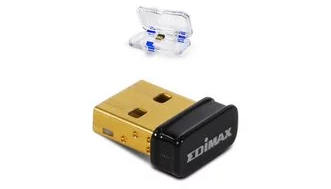

A-WIC-002 WLAN-Stick FCC
FCC-certified WLAN stick facilitates wireless access for countries like the United States, Canada and the Republic of Taiwan.
Image Credit: Polytec
Miscellaneous
A-LAG-0633 Laser Adjustment Goggle
This component enables accurate pointing of the laser on the device under test.
Image Credit: Polytec
A-RET-xxxx Retro-Reflective Supplies
This component enables the selection of tape, sprays, sheets and micro glass beads for the enhancement of signal-to-noise ratio during the measurement of uncooperative surfaces.
Image Credit: Polytec
