Thermo Scientific ParticleMetric is an application designed for the analysis of particles.

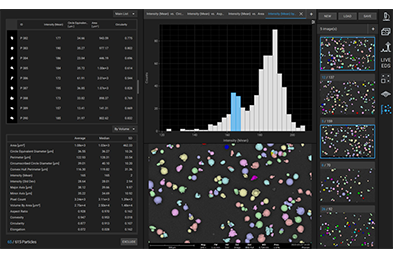

First, images are acquired using the SEM. Second, images are analyzed in ParticleMetric. For each particle, the software calculates multiple physical properties, and the user can generate graphs. Finally, a report is generated automatically when the user saves the data.
Phenom ParticleMetric Software enables fast and easy access to particle information, thereby facilitating quality control and R&D.
Key Features
Intuitive Algorithm
Particle detection via image analysis is greatly simplified.
Comprehensive Analysis
Correlate particle features such as diameter, circularity, aspect ratio and convexity.
Specifications
| . |
. |
|
Particle size range
|
|
|
Particle detection
|
- 8/16 bit image processing
|
|
Speed
|
- More than 1,000 particles per minute
|
|
Measured properties
|
|
|
Particle parameters
|
- Area, circle equivalent diameter, surface area, circumscribed circle diameter, volume by area, circumference, aspect ratio, circularity, elongation, intensity, major axis, minor axis, convex hull, gravity center (x,y), pixel count, and convexity.
|
|
Digital image detection
|
- Scatter plots and histograms of any parameter
- SEM image of individual particle
|
|
Output
|
- Report in docx format, TIFF image format, CSV file
|
