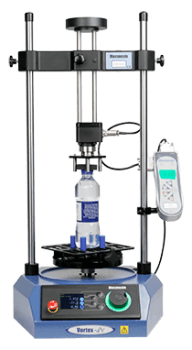

The Vortex-d range is a fundamental motorised torque test system used to measure rotary and static torque up to 10N.m, and integrates with Mecmesin's universal display to ensure precise and consistent results. Even though it features a simple operation mode, the Vortex-d range has several advantages due to advanced test features in order to satisfy common testing requirements.
The main advantages of the company's motorized systems are:
-
User-friendly innovative keypad interface
-
Flexible 'smart' transducer section
-
High accuracy speed controller
-
Top-loading feature
-
RS-32 data output

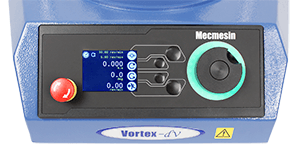

The keypad design is such that testing is rapid and simplified. A large-sized LCD screen shows clearly clockwise or anti-clockwise speeds and displacement data. There is an option to choose between 1.5, 6 and 10 N.m transducers that can be interchanged easily in order to precisely evaluate between sensitive and powerful applications. Speeds can be adjusted in tiny increments, then this function can be locked to prevent sudden adjustment before as well as during the test. Set loads can be applied to evaluate child-resistant closures. Export data can be exported to a PC for additional analysis and reporting.
The Vortex-d is used along with Mecmesin's digital torque display, the AFTI for additional advanced test options are:
-
Pass/Fail alarms
-
Memory function 500 readings
-
View initial and ultimate max readings
-
Compatible with Mecmesin's data acquisition software
The test data can be further evaluated using Mecmesin's Emperor Lite data acquisition software.
The technical specifications of the Vortex-d range are:
-
Maximum load of 10N.m
-
Transducer capacities: 1.5N.m, 6N.m, 10N.m (13lbf.in, 52lbf.in, 90lbf.in)
-
Maximum sample height of 450mm (17.7") *
-
Width between columns of 280mm (11")
-
Capacity of upper mounting table from 8 to 55mm (0.31 - 2.16")
-
Capacity of lower mounting table from 10 to 190mm (0.39 - 7.48")
-
Load accuracy is ±0.5% of full scale
-
Display resolution is 1:5000
-
Speed range of 0.1 - 20 revs/min (clockwise and counter-clockwise)
-
Maximum displacement of 2500 revs
-
5kg top loading capability
-
Weight 18kg (40lb)
