In sectors where corrosion, erosion, and material degradation present constant challenges, ultrasonic thickness (UT) gauging remains one of the most effective NDT strategies for monitoring the health of industrial infrastructure.

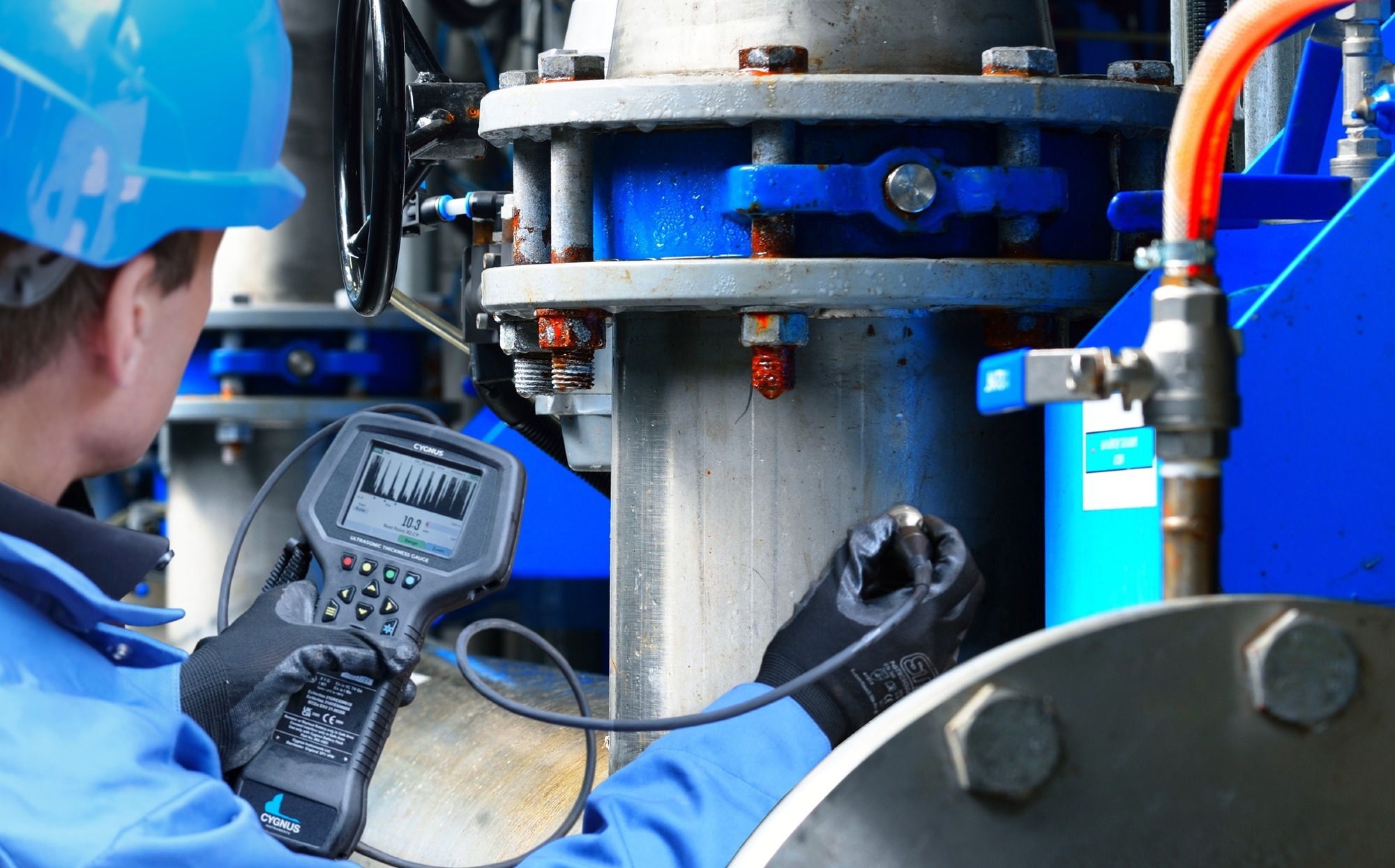

Image Credit: Cygnus Instruments Ltd.
When inspections are performed infrequently, due to budget constraints, manufacturing pressures, or a lack of perceived risk, significant consequences can arise, including unexpected failures, expensive repairs, unplanned downtime, and even safety incidents.
An ultrasonic thickness gauge (UTG) is a non-destructive testing (NDT) method used to carry out wall thickness checks on vessels, storage tanks, boilers, and structural components without causing damage.
The data from ultrasonic thickness measurements, when acquired as part of an ongoing inspection regimen, enables corrosion-rate monitoring and the prediction of when equipment will require repair or replacement.
Infrequent inspections may mean that accelerated corrosion goes unnoticed: localized pitting, erosion, flow-assisted corrosion, or microbiologically influenced corrosion may develop far more rapidly than expected. Without precise trending data, maintenance decisions become reactive rather than proactive.
This often results in unanticipated equipment failure, emergency shutdowns, environmental incidents, and substantially more expensive maintenance.
Oil and Gas: Preventing Pipeline Failures
The oil and gas sector relies greatly on ultrasonic thickness surveys to monitor pipelines, separators, pressure vessels, and offshore infrastructure.
Internal corrosion resulting from water, hydrogen sulfide, carbon dioxide, or sand erosion can remove several millimeters of wall thickness over relatively short periods. If inspections are carried out only every three to five years, operators may fail to identify accelerated corrosion before the minimum allowable wall thickness is achieved.
A pipeline leak necessitates costly emergency repairs as well as manufacturing losses, environmental clean-up expenses, regulatory fines, and reputational damage. Routine ultrasonic thickness monitoring enables the early identification of deteriorating sections, allowing repairs during planned maintenance shutdowns instead of emergency interventions.
Production: Avoiding Unplanned Downtime
Production facilities often continuously operate aging process equipment for months between shutdowns. Steam lines, chemical transfer pipes, compressed air systems, and heat exchangers are all prone to corrosion and erosion.
Delaying ultrasonic thickness inspections may cause thinning pipework to fail unexpectedly during manufacturing. A single ruptured steam pipe can halt an entire production line, leading to manufacturing disruptions and financial losses.
Regular thickness gauging allows maintenance teams to prioritize repairs based on actual condition rather than relying only on equipment age or visual inspection.
Power Generation: Safeguarding Key Infrastructure
Power stations experience elevated temperatures, pressure cycling, and harsh operating environments that speed up material degradation.
Boiler tubes, feedwater systems, condensate lines, and high-pressure pipework require routine wall-thickness monitoring to identify flow-accelerated corrosion before catastrophic failure occurs.
Unanticipated boiler tube failures can force emergency shutdowns, disrupting electricity generation and resulting in significant repair expenses. Scheduled ultrasonic thickness inspections deliver important trend data that helps engineers predict remaining service life and optimize maintenance planning.
Water and Wastewater Treatment: Extending Asset Life
Water treatment facilities commonly assume that corrosion advances slowly. However, the chemicals employed during treatment, along with fluctuating flow conditions, can cause localized attacks inside pipelines, storage tanks, and process vessels.
Without regular ultrasonic thickness surveys, thinning may be overlooked until leaks appear. Water loss, contamination risks, emergency repairs, and service interruptions rapidly outweigh the modest cost of routine inspections.
Condition-based monitoring allows infrastructure owners to maximize asset life while maintaining regulatory adherence and service dependability.
Marine and Offshore: Addressing Corrosion in Extreme Settings
Marine environments, a specialist area for Cygnus Instruments’ ultrasonic thickness gauges, are one of the most corrosive operating conditions for steel structures.
Ship hulls, offshore platforms, ballast tanks, and loading systems are constantly exposed to saltwater, oxygen, and humidity. Corrosion rates can fluctuate substantially depending on coating condition and operating environment.
Routine ultrasonic thickness gauging helps detect structural deterioration before it jeopardizes safety or Classification Society requirements. Infrequent inspections increase the risk of extensive steel replacement projects, dry docking delays, UWILD, and costly structural repairs.
The Financial Effects of Delayed Inspections
Many organizations delay inspections to try to minimize maintenance costs. However, this frequently results in substantially higher long-term expenditure.
The financial impacts of inadequate ultrasonic thickness monitoring include:
- Emergency repairs that are significantly more expensive than planned maintenance
- Unplanned manufacturing downtime
- Environmental remediation and regulatory penalties
- Increased risk to health and safety
- Premature replacement of indispensable assets
- Higher insurance premiums following failures
- Decreased customer confidence and contractual penalties
In comparison, regular ultrasonic thickness gauging represents a relatively affordable investment that supports informed maintenance decisions and minimizes lifecycle expenses.
Building a Predictive Maintenance Approach
Modern asset management increasingly relies on predictive maintenance instead of fixed inspection intervals. Ultrasonic thickness measurements obtained at regular intervals establish corrosion trends, allowing corrosion rates to be calculated and future wall thicknesses to be forecast.
By using this data-driven method, maintenance budgets can be focused on assets that genuinely require intervention while extending the safe operating life of equipment that remains in good condition.
Instead of viewing ultrasonic thickness gauging as a periodic compliance exercise, leading organizations incorporate it into comprehensive asset integrity programs supported by risk-based inspection approaches.
Conclusion
Infrequent ultrasonic thickness gauging introduces unnecessary uncertainty into asset integrity management (AIM). Infrequent measurements can allow corrosion and erosion to advance unnoticed until failures occur, frequently resulting in expensive repairs, operational disruption, and increased safety risks.
Across sectors such as oil and gas, production, power generation, water treatment, and marine operations, regular ultrasonic thickness inspections deliver the dependable data required to make informed maintenance decisions, extend equipment life, and reduce whole-life expenses.
While meeting inspection requirements is an important benefit of investing in regular ultrasonic thickness gauging, safeguarding assets, enhancing dependability, minimizing downtime, and ultimately reducing the total cost of ownership are also key advantages.
This information has been sourced, reviewed, and adapted from materials provided by Cygnus Instruments Ltd.
For more information on this source, please visit Cygnus Instruments Ltd.
