Thermal analysis consists of various techniques that quantify a sample's chemical or physical properties as a function of time or temperature. It offers labs with beneficial outcomes and new data in quality control and assurance, product and process development, and research. METTLER TOLEDO thermal analysis Excellence instruments facilitate the characterization of sample materials over an extensive temperature range.
Thermal Analysis System DSC 5+
The New Standard
- MultiStar™ sensor comprising 136 thermocouples: Outstanding sensitivity for the measurement of weak effects
- Power compensation: Offers excellent resolution for separation of close-lying effects
- Patented electrical heat flow adjustment: Offers superior precision and saves time
Image Credit: Mettler Toledo - Thermal Analysis
Overview
Specifications

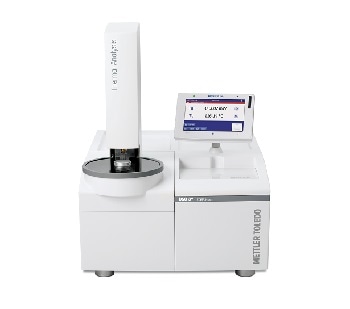

Thermal Analysis System DSC 5+. Source: Mettler Toledo - Thermal Analysis
| . |
. |
| Temperature Range |
-155 °C – 700 °C |
| Temperature accuracy (±) |
+/-0.2 K |
| Signal Time Constant |
0.7 s |
| TAWN resolution |
4 |
| TAWN sensitivity |
66 |
| Technique |
Differential Scanning Calorimetry (DSC) |
| Sensor Output |
Heat Flow |
| Data Sampling |
Max. 50 data pts/sec |
| Applications |
Glass Transition
Heat Capacity (cp)
Crystallization
Kinetics
Oxidation Induction Time (OIT)
Temperature Modulated DSC |
| Sensor Types |
MMS 1 |
| Temperature precision (+/-) |
0.02 K |
FlexMode™ Technology
Choose heat flux or power compensation mode for ideal DSC performance
Image Credit: Mettler Toledo - Thermal Analysis
Time-Saving FlexCal™ Adjustment
Ensures precise outcomes under every measurement condition
Image Credit: Mettler Toledo - Thermal Analysis
Unrivaled Modular Concept
Custom-made solutions for future and current needs
Image Credit: Mettler Toledo - Thermal Analysis
Wide Temperature Range
Between -155 and 700 °C in one measurement
Image Credit: Mettler Toledo - Thermal Analysis
Robot with Gas-Purged Sample Chamber
The optional sample robot safeguards samples from the environment and functions reliably all the time.
Image Credit: Mettler Toledo - Thermal Analysis
CombiCooler
This option is an integrated LN2 cooling and intercooler that allows access to the complete temperature range with minimized liquid nitrogen consumption.
