IEM 10
The IEM 10 from Inovenso has the following features:
- Auto stage: X, Y, T Axis
- Click and move stage control
- Magnification up to x 100,000
- High definition image : 5120 X 3840 Pixel
- Auto function: filament memory, focus, brightness, contrast
Specifications
- Magnification: x20 ~ x100,000 (Efficient: ~x50,000)
- Acc Voltage: 1 ~ 30 kV (1 kV increments)
- Electron Gun: Tungsten Filament (W)
- Detector: SE Detector
- Stage: Auto Stage (X: 35 mm,Y: 35 mm,T: 0 to 45o) Manual Stage (Z: 5 to 50 mm)
- Image Shift: X, Y, R (Rotation)
- Operating System: Microsoft Windows 7
- Dimensions (mm): 400(W) x 600(L) x 550(H)
- Dimensions (inch): 15,74(W) x 23,62(L) x 21,65(H)
- Weight: 85(kgs) - 187 (lbs)
Stage Position
Users can effortlessly locate the sample on the stage.
![Stage Position](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/1-1.jpg)
Click and Move
By applying the auto stage, stage is controlled easily with a mouse click.
![Click and Move](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/4.JPG)
Auto Focus and Fine Focus
Auto focus function allows easy operation and clearer images can be obtained even at the greater magnifications.
![Auto Focus and Fine Focus](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/2-1.jpg)
![Auto Focus and Fine Focus](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/3.jpg)
Filament Memory
Filament’s saturation point is automatically stored and then activated.
![Filament Memory](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/5.jpg)

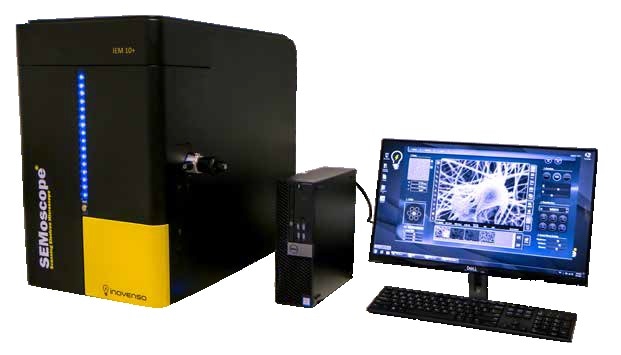

IEM 10+
The IEM 10+ from Inovenso has the following features:
- Auto stage: X, Y, T Axis
- Click and move stage control
- Magnification up to x 100,000
- High definition image: 5120 X 3840 Pixel
- Thermo EDS Detector: 133 eV at Mn, B(5) ~ U(92)
- Auto function: filament memory, focus, brightness, contrast
![IEM 10+](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/Untitled.jpg)
Specifications
- Electron Gun: Tungsten Filament (W)
- Detector: SE and EDS Detectors
- Stage: Auto Stage (X: 35 mm,Y: 35 mm,T: 0 to 45o) Manual Stage (Z: 5 to 50 mm)
- Magnification: x20 ~ x100,000 (Efficient: ~x50,000)
- Acc Voltage: 1 ~ 30 kV (1 kV increments)
- Image Shift: X, Y, R (Rotation)
- Operating System: Microsoft Windows 7
- Weight: 95(kgs) - 210(lbs)
- Dimensions (mm): 400(W) x 600(L) x 550(H)
- Dimensions (inch): 15,74(W) x 23,62(L) x 21,65(H)
Rapid EDS Analysis
Point and shoot analysis with NORAN System 7 software uses standardless quantitative analysis to allow rapid identification of different regions within a material.
Extracted Linescans
![Extracted Linescans](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/6.jpg)
![Extracted Linescans](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/7.jpg)
Extracted Area Analysis
![](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/8.jpg)
![Extracted Area Analysis](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/9.jpg)
![Extracted Area Analysis](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/10.jpg)
![Extracted Area Analysis](https://d12oja0ew7x0i8.cloudfront.net/image-handler/picture/2017/11/11.jpg)
|
Point #1 |
Point #2 |
Point #3 |
C-K |
2.1 |
2.2 |
1.9 |
O-K |
58.3 |
61.8 |
61.3 |
Mg-K |
0.7 |
|
|
Al-K |
12.6 |
1.1 |
0.5 |
Si-K |
18.3 |
6.7 |
33.9 |
K-K |
4.2 |
0.1 |
0.1 |
Co-K |
|
0.1 |
|
Fe-K |
3.7 |
27.0 |
2.3 |
Cu-K |
|
0.9 |
|
Weight percentages |
|
|
|
EDS Analysis with NORAN
System 7 Spectral Imaging
The UltraDry Compact EDS detector provides exceptional elemental mapping within just a few minutes. With Spectral Imaging, where a complete EDS spectrum is stored at every pixel, samples can be analyzed after they are removed from the microscope. NORAN System 7 tools offer a number of analytical methods for the best results.
