Creating Sample Nanofiber Membranes with the Nanospinner 24

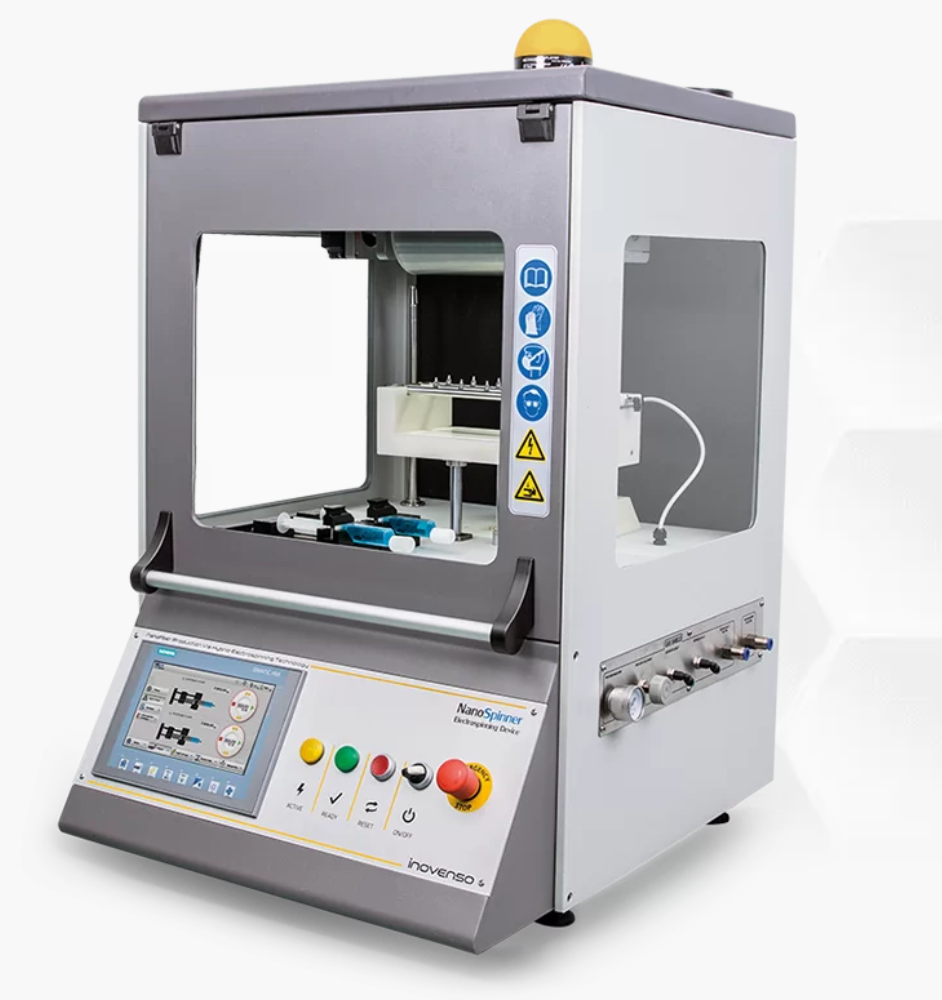

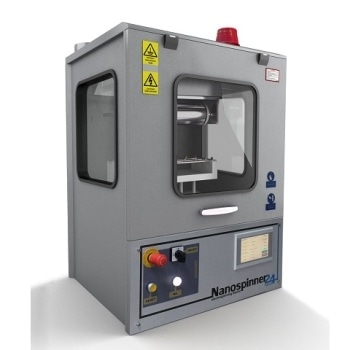

Inovenso’s Nanospinner 24 electrospinning machine is capable of creating sample nanofiber membranes that are mainly used in the air filtration and textile industries, but also in medicine, medical, agriculture, chemistry and construction industries.

The R&D departments of companies and universities researching nanofibers and the electrospinning process can effortlessly maintain their research for 24 hours with a consistent electrospinning process using the Nanospinner 24. Furthermore, all parameters are adjustable automatically while in operation.

It offers flexible researching capability. There are also various models for a number of areas and products. Multi-nozzle feeding allows high production rates of electrospun nanofiber membranes and high surface area coatings.

Unique Properties Benefits
Standalone unit Extra equipment is not required to begin production. Plug and Play time bench top or standalone units.
Bottom-up spinning Prevents solvent dropping on sample media during the process as any dropping of solvent will cause defects on nanofiber web surface
Programmable touch screen control panel Easy to use, feedback information, precise control
Up to 12 concurrently feeding multi-nozzles High-throughput nanofiber production for higher production capacity in less time
Single nozzle electrospinning option Easy to swap and shift to single nozzle spinning for the demo polymer solutions
376 mm by 280 mm coating area Almost A3 size wide area nanofiber samples can be used for some commercial nanofiber applications
High-speed rotating drum up to 2000 RPM Helps to get parallelized nanofiber webs in varying morphologies
Modifiable horizontal movement between 30-80 mm and 5-50 mm/second Precise modification of homogeneity for creating very uniform nanofiber membrane samples in thickness
Automatic modifiable spinning distance between 30 – 230 mm. Nozzle to collector. During the polymer solution optimization precisely adjusting one of the most vital parameters as distance offers thinnest nanofibers
Recipe saving and loading option Easy recall of prior work parameters automatically. Need to manually adjust all parameters one by one is not required.
Extra safety options Warning lights and safe-door lock to prevent electrical discharges or injuries
