The product features 0-40" thru 835' WC, Stainless Steel Sensor, PUR Cable Standard, and Housing.
The Model 590 Detachable Level Transmitter allows for a fast sensor swap without having to remove the installed polyurethane standard cable. FEP and PVC cables are also available. Both 590/591 have the deepest level rating at 835'. Sensor head and/or cable can be ordered independently. A full range of accessories for use in level applications are available, a number of them from stock.
Features
- Detachable
- All Stainless Steel construction
- IP-68 Rated
- RoHS Compliant
- Low Pressure Applications

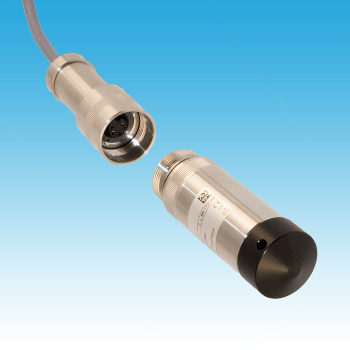

The Model 590 Detachable Level Transmitter enables a quick sensor swap without the removal of the installed cable. No special tools are needed. Just pull up the sensor, twist the sensor coupling sleeve until it is no longer engaged and then just divide the two halves.
The Model 590 is built with stainless steel housing and sensor module, with a polyurethane cable as standard. Different cable materials and o rings are offered.
Use it to measure liquid level and depth for water and waste water applications, at lift stations, rivers, holding ponds, reservoirs and dams, wells, in-ground/above ground tanks and with inventory tank gauging.
Ranges from 0-40" WC thru 15' WC have collective accuracy of +/- 0.50% FSO
Ranges more than 15' WC have combined accuracy of +/- 0.35% FSO
Viatran also offers a full range of accessories for use in level applications such as a surge protector, meters, cable hangers and weights, and junction boxes.
Replacement sensor heads and/or cables can be bought individually.
Performance
| . |
. |
| Pressure Ranges |
0 - 40" W.C. up to 0 - 835 Ft W.C. |
(Or equivalent in Meters or PSI) |
| Accuracy [Combined Non-Linearity (BFSL), Hysteresis & Repeatability] |
For ranges ≥ 15 Ft. W.C. |
≤ +/-0.35% FSO |
| For ranges < 15 Ft. W.C. |
≤ +/- 0.50% FSO |
| Compensated Temperature Range |
32° to 158 °F (0 to 70 °C) |
| Operating Temperature Range |
-4° to 158 °F (-20 to 70 °C) |
Note: Medium must not freeze near sensor |
| Storage Temperature Range |
-13° to 158 °F (-25 to 70 °C) |
| Long Term Stability (%FSO) |
≤ +/- 0.1% FSO / year |
At reference conditions) |
| Thermal Effect on Zero |
≤ +/- 0.8% FSO per 100 °F |
| Thermal Effect on Span |
≤ +/- 0.8% FSO per 100 °F |
Electrical
| . |
. |
| Output Signal |
4-20 mA |
| Supply Voltage |
8 -32 Vdc |
| Power Supply Regulation |
< +/- 0.005% FSO per volt |
| Circuit Protection |
Reverse polarity protected, CE marked |
| RFI / EMI |
CE EMC compliant as per IEC EN 61326 |
| Voltage Spike Protection |
Withstand 1000 volt spike per EN 61000 |
| Response Time |
<10 mSec |
Mechanical
| . |
. |
| Pressure Connection |
Protective POM cap |
| Ingress Protection |
IP 68 |
| Overpressure Limit |
4x Minimum (>525 Ft. range = 3.2x) |
| Burst Pressure |
5x Minimum (> 525 Ft. range = 4.8x) |
| Weight |
0.9 lbs. (without cable) |
Materials of Construction
| . |
. |
| Housing |
316L stainless steel |
| Sensor Diaphragm |
316L stainless steel |
| O-ring Seals |
FKM (Standard) or EPDM (Optional) |
| Protective Cap |
POM (Polyoxymethylene) |
Options
| . |
. |
| EA |
Special Calibration Run |
| PW |
Calibrate Transmitter with Meter / Display |
| ZB |
1/2" NPT Conduit Adapter |
