Model 245: DigiComp Pressure Sensor

The Model 245 DigiComp pressure sensor from Viatran is one of the company’s most precise pressure transmitters developed for industrial test and research applications.

The 245 DigiComp pressure sensor quantifies gage and absolute pressure from 3 to 5,000 PSI, or 0.2 to 345 bar, with a standard precision of ≤±0.06% FSO.


All stainless-steel construction
High precision
Suitable for low pressure applications
Shunt calibration circuit option
Several options are available


External adjustments in the Model 245 DigiComp pressure sensor enable users to further tune the zero reading with the help of a potentiometer. The pressure sensor also includes adjustments for span, and an embedded calibration circuit enables calibration on the field.

The Model 245 DigiComp pressure sensor can be custom-made for outputs anywhere from −10 to +10 VDC, with unlimited electrical and process connection options.


Table 1. Source: Viatran

. .
Full Scale Pressure Ranges 0-3 thru 5000 PSIG (PSIS FOR >500 PSI) (0.2 thru 345 bar)

0-15 thru 0-5000 PSIA (0-1.0 thru 0-345 bar)

0-15 PSIV (0-1.03 BarV)
Nonlinearity (Best Fit Straight Line) ≤±0.06% FSO
Hysteresis & Repeatability ≤±0.06% FSO
Full Scale Output (FSO) 5 Vdc at 70°F (21°C) ≤±0.10% FSO standard
Resolution Infinite
Long Term Stability ≤±0.3% FSO per 6 months
Compensated Temperature Range 32°F to 170°F (0° to 77°C)
Process Media Temperature Range -40°F to 250°F (-40°C to 121°C)
Ambient Operating Temperature Range -40°F to 185°F (-40°C to 85°C)
Storage Temperature Limits -40°F to 250°F (-40°C to 121°C)
Temperature Effect on Zero ≤±1.0% FSO per 100°F
Temperature Effect on Span ≤±1.0% FSO per 100°F



Table 2. Source: Viatran

. . .
Supply Voltage 8 to 30 Vdc at 3.5 mA nominal, 5 mA max

(12 to 30 Vdc for 10 Vdc output option)
Power Supply
≤±0.01% FSO per volt change over the supply voltage range
Output Signal 0 - 5 Vdc standard (see options)
Load Resistance 100K Ohms min
Zero Adjustment ±5% FSO min
Span Adjustment ±5% FSO min
Calibration Signal 80% of FSPR, by shorting calibration pins
Calibration Signal Accuracy ≤±0.1% of the stated value
Circuit Protection Input polarity may be reversed. Output may be short-circuited indefinitely Over voltage protection to 1000 volts according to EN61000-4-5
Insulation Resistance ≥200 MegOhms to case ground
Response Time <2 mSec to reach 90% of full scale
RFI / EMI Suppression CE EMC compliant per IEC EN 61326. CE marked
Electrical Connection Bendix PT02E-10-6P, mates PT06E-10-6S (SR)
Pin Outs Pin A + Power
Pin B - Power
Pin C + Signal
Pin D - Signal
Pin E Calibrate
Pin F Calibrate


Materials of Construction

Table 3. Source: Viatran

. .
Wetted Parts 316 stainless steel
Housing 304 SS with an Aluminum alloy, black zinc-cobalt plated electrical connector
Weight 10 oz (283 g)
Identification Laser etched onto body



Table 4. Source: Viatran

. . .
Pressure Connection 1/4" - 18 NPT female
Proof Pressure ≤500 PSI (35 bar)

>500 PSI (35 bar)
3 times range or 1,200 PSI (80 bar) max

3 times range or 10,000 PSI (700 bar) max
Burst Pressure ≤500 PSI (35 bar)

>500 PSI (35 bar)
5 times range or 2,400 PSI (170 bar) max

5 times range or 10,000 PSI (700 bar) max
Pressure Cavity
≤500 PSI (35 bar)

>500 PSI (35 bar)
3.3 ml

4.2 ml
Mounting May be supported by process piping



Table 5. Source: Viatran

. . .
BF (K)PTIH-10-6P
BG DIN 43650
BL WK6-32S
BN (K)PTIH-8-4P
BQ (K)PT02H-10-6P
BR CF3102E-14S-6P
ZU Direct Cable (175°F max temperature) (79°C)
Y() Multiple pressure ports available. Consult factory
DA Isolated shunt
DC Extended Compensated Temperature Range (Cold) -40°F to 170°F (-40°C to 77°C)
DG Improved temp performance to 0.005% FSO per 1°F
DH Special ranging
DK Special shunt calibration setting
DM Modified full scale output
DN Improved non-linearity
DQ Cleaning for oxygen service
EA Special calibration run
EH Extended Compensated Temperature Range (Hot) +70°F to 185°F (21°C to 85°C)
NH Customer specified identification
PW 1/8 DIN digital indicator
Note: Application of some available options may affect standard performance. Consult your Viatran representative for details.

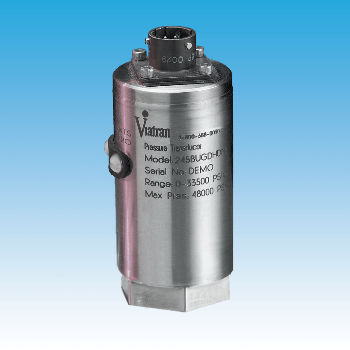

Model 245: DigiComp Pressure Sensor
