Model 24B: Versatile Pressure Transducer

The Model 24B pressure transducer from Viatran is one of the most flexible pressure transducers offered by the company for industrial applications. The 24B pressure transducer quantifies from 0–100 PSI to 0–30,000 PSI with standard linearity of ≤ ±0.25% FSO.


Compliant to RoHS standard
All stainless steel construction
Shunt calibration circuit option available



Table 1. Source: Viatran

. .
Full Scale Pressure Ranges 0-100 thru 15,000 PSIG (PSIS FOR ≥ 1500 PSI) (7 thru 1000 bar)
Nonlinearity (Best Fit Straight Line) ≤±0.25% FSO
Hysteresis & Repeatability ≤±0.10% FSO
Full Scale Output (FSO) 5 Vdc at 70°F (21 °C) ≤±0.10% FSO
Resolution Infinite
Long Term Stability ≤±0.3% FSO per 6 months
Compensated Temperature Range 70°F to 170°F (21°C to 77°C)
Process Media Temperature Range -40°F to 250°F (-40°C to 121°C)
Ambient Operating Temperature Range -40°F to 185°F (-40°C to 85°C)
Storage Temperature Limits -40°F to 250°F (-40°C to 121°C)
Temperature Effect on Zero ≤±2.0% FSO per 100°F
Temperature Effect on Span ≤±2.0% FSO per 100°F



Table 2. Source: Viatran

. . .
Supply Voltage 8 to 30 Vdc at 3.5 mA nominal, 5 mA max (12 to 30 Vdc for 10 Vdc output option)
Power Supply Regulation ≤±0.01% FSO per volt change over the supply voltage range
Output Signal 0 - 5 Vdc standard (see options)
Zero Adjustment ±5% FSO min
Circuit Protection Input polarity may be reversed. Output may be short-circuited indefinitely Over voltage protection to 1000 volts according to EN61000-4-5
Insulation Resistance <5 nSec to case ground
Response Time <2 mSec to reach 90% of full scale
RFI / EMI Suppression CE EMC compliant per IEC EN 61326. CE marked
Electrical Connection Bendix PT02E-10-6P, mates PT06E-10-6S (SR)
Pin Outs Pin A + Power
Pin B - Power
Pin C + Signal
Pin D - Signal
Pin E No connection
Pin F No connection
Shell Ground


Materials of Construction

Table 3. Source: Viatran

. .
Wetted Parts 15-5 PH stainless steel
Housing 304L SS
Weight 10 oz (283 g)
Identification Pressure sensitive label



Table 4. Source: Viatran

. .
Pressure Connection 1/4" - 18 NPT female
Proof Pressure 1.5 times range or 20,000 PSI (1379 bar) max
Burst Pressure 3 times range or 35,000 PSI (2400 bar) max
Pressure Cavity Volume 4.5 ml
Mounting May be supported by process piping



Table 5. Source: Viatran

. . .
BF (K)PTIH-10-6P
BG DIN 43650
BL WK6-32S
BN (K)PTIH-8-4P
BQ (K)PT02H-10-6P
BR CF3102E-14S-6P
DA Isolated shunt
DC Extended Compensated Temperature Range (Cold)
-40°F to 170°F (-40°C to 77°C)
DG Improved temp performance to 0.005% FSO per 1°F
DH Special ranging
DK Special shunt calibration setting
DM Modified full scale output
DN Improved non-linearity
DQ Cleaning for oxygen service
EA Special calibration run
EH Extended Compensated Temperature Range (Hot)
+70°F to 185°F (21°C to 85°C)
NH Customer specified identification
PW 1/8 DIN digital indicator
Y() Multiple pressure ports available. Consult factory

Direct Cable (175°F max temperature) (79°C)
Note: Application of some available options may affect standard performance. Consult your Viatran representative for details.

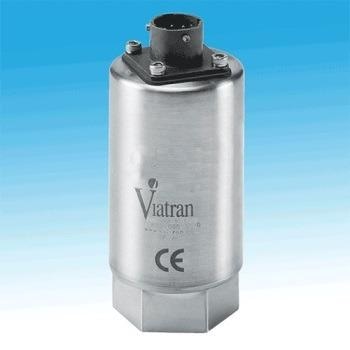

Model 24B: Versatile Pressure Transducer
