People Counting for Retail, Transportation Hubs, Smart Buildings: Brickstream 3D Gen 2

FLIR Systems’ Brickstream 3D Gen 2 sensor helps users take effective decisions to grow their business. The sensor enables obtaining people counting traffic, people flow, and occupancy metrics for optimizing retail operations, smart buildings and transportation hubs.

The high level of accuracy and advanced feature set offered by the FLIR Brickstream 3D Gen2 sensor ensures real-time footfall traffic data to a number of businesses around the world compared to any other sensor. The latest advances to the sensor are the Employee Filtering feature and Wi-Fi connectivity capability.

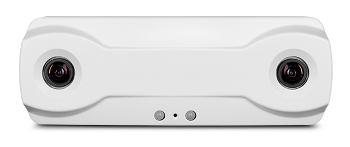

FLIR Brickstream 3D Gen 2: The Next Gen 3D Stereo-Vision Sensor for People Counting & Tracking

Video Credit: FLIR Systems

Metrics to Grow Users’ Business

The accurate, real-time data offered by the Brickstream 3D Gen 2 sensor allows users to quantify, predict and take decisions on enhancing customer experiences and sales conversion, improving staffing levels and understanding successful marketing campaigns.

Retail, Transportation Hubs, Smart Buildings, and More

The Brickstream 3D Gen2 is perfect for transportation hubs, retail stores, shopping malls, smart buildings and anywhere it is crucial to understand occupancy levels, visitor traffic, queue times and people flow.

Newest Advances: Employee Filtering and Wi-Fi Connectivity

The Employee Filtering feature makes sure that only customers and not staff such as those close to the door (for example, greeters and security personnel) are counted. The latest Wi-Fi connectivity capability renders installation faster, easier, and economical by avoiding the disruption of wiring ethernet cables and the related cost.

Specifications

Source: FLIR Systems

Overview
Dimensions (H x W x D) 59 x 162 x 40.5 mm; 2.3 x 6.4 x 1.6 in
Employee Filtering Yes
Part Number 2510 M-25 W
Protocols TCP/IP, DHCP, HTTP Proxy
Queuing Metrics Yes
Tailgating Alerts Yes
Weight 0.25 kg; 0.5lb
Communications
Addressing DHCP or Static IP
Data Delivery HTTP, SMTP, FTP HTTPS, FTPS
I/O Ports No
Imaging
Lens Options 2.5 mm
Time Synchronization SNTP, Daytime Protocol, Proprietary
Physical
Enclosure White Plastic
Power
Power Maximum 6 W; Power over Ethernet (PoE Class 2)



Accessories

  • Wi-Fi/BLE USB Dongle
  • Brickstream 3D Gen 2 Recessed Mount
  • Brickstream 3D Gen 2 Outdoor Mount
