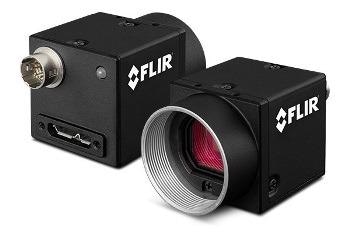

The Blackfly® S camera from FLIR Systems takes advantage of the industry’s next-generation sensors in an ice-cube form factor.
Packed with rugged features, the Blackfly® S camera enables users to easily create their preferred, exact images and expedite their application development. This comprises both accurate manual control and automatic control across on-camera pre-processing and image capture. The Blackfly® S now comes in USB3, GigE, board-level and cased variants.
The Exact Images Needed by Users
The Blackfly® S camera offers a choice of polarization, CMOS global shutter, and high sensitivity BSI sensors, and besides this, color transformation tools guarantee true-to-life color. Accurate manual control and sophisticated auto-algorithms are also included in the camera.
Develop Once, Deploy Anywhere
The Blackfly® S camera has been designed to support an array of host system hardware architectures and operating systems. Users can effortlessly switch to board-level versions for built-in systems. Streamlined product iteration with reliable form factor is ensured across different sensor sizes.
Accelerate Application Development
The Blackfly® S camera is compatible with third-party hardware and software. Rugged on-camera features reduce code-writing jobs. Customized applications can be rapidly developed with descriptive API logging and a rich sample code.
FLIR Blackfly S Family: Develop Once, Deploy Everywhere
Video Credit: FLIR Systems
Specifications
Source: FLIR Systems
| Overview |
| ADC |
8-bit, 10-bit, 12-bit |
| Chroma |
Color |
| Frame Rate |
522 |
| Lens Mount |
CS-mount |
| Megapixels |
0.4 |
| Part Number |
BFS-U3-04S2C-CS |
| Pixel Size |
6.9 |
| Readout Method |
Global shutter |
| Required Accessories |
Lens, Cable, Host Adapter (USB 3.1 Gen 1), Tripod Mount Adapter (ACC-01-0003) |
| Resolution |
720 × 540 |
| Sensor Format |
1/2.9" |
| Sensor Name |
Sony IMX287 |
| Sensor Type |
CMOS |
| Compliance and Certifications |
| Compliance |
CE, FCC, KCC, RoHS. The ECCN for this product is: EAR099. |
| Machine Vision Standard |
USB3 Vision v1.0 |
| Warranty |
3 years |
| Environmental |
| Operating Humidity |
20 to 80% (no condensation) |
| Operating Temperature |
0° to 50°C |
| Storage Humidity |
30 to 95% (no condensation) |
| Storage Temperature |
-30° to 60°C |
| Features |
| Acquisition Modes |
Continuous Single Frame Multi Frame |
| Exposure Range |
4 µs to 30 seconds |
| Flash Memory |
6 MB non-volatile memory |
| Gain Range |
0 db to 47 dB |
| Image Buffer |
240 MB |
| Image Processing |
Color correction matrix, gamma, lookup table, saturation and sharpness |
| Partial Image Modes |
Pixel binning, decimation, ROI |
| User Sets |
2 user configuration sets for custom camera settings |
| Performance |
| Absolute Sensitivity Threshold (y) |
7.55 |
| Dynamic Range dB |
74.35 |
| Quantum Efficiency Blue |
49.86 (460 nm) |
| Quantum Efficiency Green |
56.96 (530 nm) |
| Quantum Efficiency Red |
45.11 (625 nm) |
| Saturation Capacity (e-) |
22436 |
| Temporal Dark Noise (e-) |
3.80 |
| Physical |
| Auxiliary Output |
3.3 V, 120 mA maximum |
| Dimensions [W x H x L] |
29 mm × 29 mm × 30 mm |
| Interface |
USB 3.1 Gen 1 |
| Mass |
36 grams |
| Non-isolated I/O Ports |
1 bi-directional, 1 input |
| Opto-isolated I/O Ports |
1 input, 1 output |
| Power |
| Power Consumption |
3 W |
| Power Requirements |
8-24 V via GPIO or 5 V via USB3 |
| Recommended System Configuration |
| CPU |
3.1 GHz or equivalent CPU |
| Hard Drive |
200 MB hard drive space |
| Operating System |
Windows or Linux (32–bit or 64–bit) |
| Port |
USB 3 Port |
| RAM |
2 GB RAM or more |
Accessories
Cables
- USB 3.1 locking cable (cast metal connectors)
- USB 3.1 locking cable
GPIO Cables
- Hirose HR10 (6 Pin) GPIO cable
Lenses
- Fujinon 12.5-mm 2/3″ C-mount lens
Host Adapters
- USB 3.1 Host Controller Card
Optical Mounts
- CS to C-Mount 5-mm spacer adapter
Tripod Adapters
- Tripod adapter for BFS (30mm), BFLY, CMLN, CM3, FFMV, FL2, FL3 and FMVU
- Tripod adapter for 39-mm Blackfly® S Models
Connectors
- Hirose HR10 Circular GPIO connector
