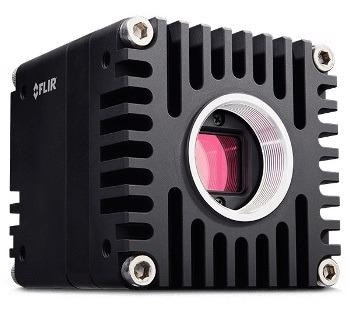

With the award-winning Oryx 10GigE camera range, systems designers can now leverage the state-of-the-art sensors that support transfer speeds of up to 10 Gbit/second and help capture 4K resolution, 12-bit images at more than 60 FPS.
The 10GBASE-T interface from Oryx is an established and extensively deployed standard that allows consistent image transfer at cable lengths of more than 50 m on cost-effective CAT6A, or higher than 30 m on CAT5e.
On-camera features, such as full compatibility with well-known third-party software that supports GigE Vision as well as IEEE1588 clock synchronization, provide system designers with the required tools to rapidly develop novel solutions.
High-Speed 10GIGE Interface
Transfer speeds at 10 Gbit/second support 4K60 (12-bit), and long cable lengths support CAT5e and CAT6A cables.
Reliability and Simplicity
Massive 10GBASE-T install base supports the desired consumer ecosystem. The system is compatible with full GigE Vision, and packet resend function enables consistent transmission of images.
Flexibility for Integrators
The IEEE1588 Clock Synchronization ensures accurate timing across numerous devices. Host-side processing needs are reduced by Color Correction Matrix, Gamma, Sharpness and Saturation.
FLIR Oryx 10GigE Camera: First Look
Video Credit: FLIR Systems
Specifications
Source: FLIR Systems
| Overview |
| ADC |
8-bit, 10-bit, 12-bit |
| Chroma |
Color |
| Frame Rate |
216 |
| Lens Mount |
C-mount |
| Megapixels |
3.2 |
| Part Number |
ORX-10GS-32S4C-C |
| Pixel Size |
3.45 |
| Readout Method |
Global shutter |
| Required Accessories |
Lens, Cable, Host Adapter (10GigE), Power Supply (ACC-01-9013 ) |
| Resolution |
2048 × 1536 |
| Sensor Format |
1/1.8" |
| Sensor Name |
Sony IMX252 |
| Sensor Type |
CMOS |
| Compliance and Certifications |
| Compliance |
CE, FCC, KCC, RoHS, REACH. The ECCN for this product is: EAR099. |
| Machine Vision Standard |
GigE Vision v1.2 |
| Warranty |
3 years |
| Environmental |
| Operating Humidity |
20 to 80% (no condensation) |
| Operating Temperature |
0° to 70°C (case) |
| Storage Humidity |
20 to 95% (no condensation) |
| Storage Temperature |
-30° to 60°C (ambient) |
| Features |
| Acquisition Modes |
Continuous Single Frame Multi Frame |
| Exposure Range |
17 µs to 30 seconds |
| Flash Memory |
4 MB non-volatile memory |
| Gain Range |
0 db to 47 dB |
| Image Buffer |
240 MB |
| Image Processing |
Color correction matrix, gamma, lookup table, saturation, and sharpness |
| Partial Image Modes |
Pixel binning, decimation, ROI |
| Serial Port |
1 (over non-isolated I/O) |
| User Sets |
2 user configuration sets for custom camera settings |
| Performance |
| Absolute Sensitivity Threshold (y) |
4.67 |
| Dynamic Range dB |
71.89 |
| Quantum Efficiency Blue |
48 (470 nm) |
| Quantum Efficiency Green |
59 (525 nm) |
| Quantum Efficiency Red |
45 (630 nm) |
| Saturation Capacity (e-) |
10787 |
| Temporal Dark Noise (e-) |
2.24 |
| Physical |
| Auxiliary Output |
3.3 V, 120 mA maximum |
| Dimensions [W x H x L] |
60 mm × 60 mm × 64 mm |
| Interface |
10 GigE |
| Mass |
386 grams |
| Non-isolated I/O Ports |
1 bi-directional, 1 input |
| Opto-isolated I/O Ports |
2 input, 2 output |
| Power |
| Power Consumption |
11.8 W (11.3 W nominal); GPIO power only |
| Power Requirements |
12-24 V, via GPIO interface |
| Recommended System Configuration |
| CPU |
4th Generation Intel Core i7 (or newer) |
| Hard Drive |
200 MB hard drive space |
| Operating System |
Windows or Linux (32–bit or 64–bit) |
| Port |
10GBASE–T Ethernet Port |
| Power Sourcing Equipment |
Camera Power Supply (12 V 1.5 A, 12–pin Hirose) |
| RAM |
8 GB RAM or more (dual channel) |
Accessories
Cables
- GigE locking cable
- GigE cable
GPIO Cables
Hirose HR10 (12-pin) circular connector
Lenses
- Fujinon 12.5-mm 2/3″ C mount lens
- Fujinon 25-mm 2/3″ C mount lens
- Tamron 16-mm 2/3″ C mount lens
- Tamron 25-mm 2/3″ C mount lens
Host Adapters
- 10 GigE Network Interface Cards
Power Supplies
- Includes 12 V power supply with a 12-Pin HR10 connector
Optical Mounts
