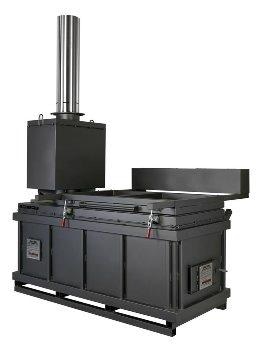

The I8-140G Model from Inciner8 is the first of its series of high-capacity general waste incinerators with suitability for various waste streams such as wood, paper, cardboard and plastics.
The bulk capacity, advanced secondary chamber technology and provision for automatic waste loading offer an effective and sustainable waste disposal method for several industries that produce a high daily volume of waste. The system delivers clean and tidy effective waste solutions, making the investment invaluable.
Typical General Waste Applications
- Universities and colleges
- Military operations
- Communities of <500 people
- Remote housing
- Industrial waste <1000 kg per day
All Inciner8 Incinerators are Hand-Built in the United Kingdom by Time-Served Welders and Fabricators
Inciner8’s award-winning design team readily provides advice and technical knowledge to ensure users get their projects up and running without delay. They can also support users in the preparation for their planning or permit application where needed.
Technical Specifications
Source: Inciner8 Limited
| Operational Specs |
| Combustion Chamber Volume (m3) |
1.35 m3 |
| Burn Rate* |
100 kg per hour |
| Average Fuel Consumption |
14 - 19 ltrs p/h |
| Operational Temperature |
>850 °C |
| Gas Retention in Secondary Chamber |
2 secs |
| Temperature Monitoring |
Yes |
| Average ash residue (%) |
3% |
|
| Thermostatic Device |
Yes |
| Physical Specs |
| External Length (mm) |
2540 mm |
| External Width (mm) |
1100 mm |
| External Height (mm) |
4180 mm |
| Door Size (mm) |
1450 x 750 mm |
| Shipping Weight |
3100 kg |
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
