The RM5 Raman Microscope

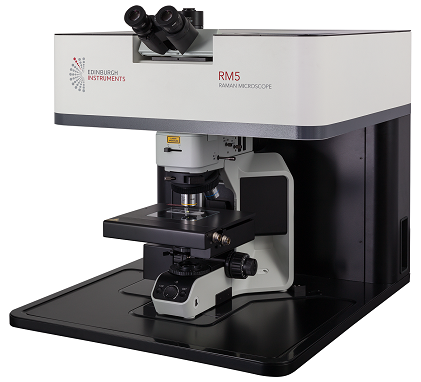

The RM5 is a compact and fully automated Raman microscope for analytical and research purposes. The confocal design of the RM5 is one-of-a-kind to the market and offers uncompromised spatial resolution, spectral resolution, and sensitivity.

Features of the RM5 Raman Microscope

  • Truly confocal – With a variable slit and multiple position adjustable pinholes for higher image definition, better fluorescence rejection, and application optimization
  • Integrated narrowband Raman lasers – Up to three computer-controlled lasers are available for user-friendliness, improved stability, and decreased footprint
  • 5-Position grating turret – For an unmatched spectral resolution of <0.3 cm-1 and optimization over the entire spectral range, from <50 cm-1 to 15,000 cm-1
  • Integrated detectors – Up to two integrated detectors, such as EMCCD, high-efficiency CCD, and InGaAs arrays for increased speed, low noise, high sensitivity, and extensive spectral range

Product Description

The Raman microscope builds on the expertise of strong and proven building blocks, integrated with advanced optical design considerations. It also concentrates on speed, accuracy, and function. The outcome is a modern Raman microscope that stands independently in both specifications and user-friendliness.

RM5 Raman Microscope

Video Credit: Edinburgh Instruments Ltd

Additional Features

  • Four-position Raman filter turret – Completely automated notch and edge filters to match the Raman range to the excitation laser wavelength
  • Internal standards and auto-calibration – To guarantee the highest quality data
  • High-performance microscope – Consistent with all the new accessories
  • Ramacle® software – One strong software package for full system control, data acquisition, analysis, and comfort of upgrade

Technical Specifications

Source: Edinburgh Instruments Ltd

Laser Specification
Lasers Up to 3 narrow-band lasers, including 532 nm, 638 nm, 785 nm
Other wavelengths available on request
Laser selection is fully computer-controlled
Laser Rejection Filters Up to 3 laser rejection filters included
Filter exchange is fully computer-controlled
Laser Attenuation 4 orders of magnitude, continuous
Fully computer-controlled


Spectral Resolution   From <0.3 cm-1
Spectral Range   <50 cm-1 – 15,000 cm-1*
Spectrograph Type
Focal Length
Asymmetric Czerny-Turner
225 mm
5-position grating turret, fully computer-controlled
Continuously adjustable, fully computer-controlled
Confocal Imaging   Adjustable confocal pinhole, fully computer-controlled


Detectors Standard Detector High sensitivity ultra low noise CCD
1650 x 200 pixels, TE-cooled -60 °C (standard) OR
2000 x 256 pixels, TE-cooled -60 °C (enhanced sensitivity and spectral range)
Optional Second Detector EMCCD detector, InGaAs and others available on request
Selection of detectors, fully computer-controlled


Raman Polarisation Optional Polarisation kit available, fully computer-controlled
Internal Calibration   Wavelength calibration standard (Neon)
Raman shift standard (Silicon)
Sensitivity validation standard (Silicon)
Automated laser alignment
Microscope System Functionality Full upright microscope with brightfield and darkfield illuminator
Polarisation, Differential Interference Contrast (DIC) capability and fluorescence imaging
10x and 100x objective included as standard; up to 5 can be included
Optional Objective(s) Trinocular eyepiece, embedded CMOS video camera, second video camera optional
Sample Viewing XY manual stage
Sample Stage XYZ motorized stage (75 mm x 50 mm XY), confocal Raman mapping
Optional Temperature-controlled sample stages available
Software Ramacle® Comprehensive all-in-one, intuitive software package
Operating System Windows®
Functionality Data acquisition, spectrograph control, graphical display, data processing
Optional Chemometric, spectral library packages – KnowItAllTM
Laser Safety Without Laser Enclosure
With Laser Enclosure
Class 3B
Class 1
Dimensions W x D x H †
Weight †
600 mm x 800 mm x 600 mm
† 63 kg
* depending on the grating, laser and CCD selection
† without laser enclosure
