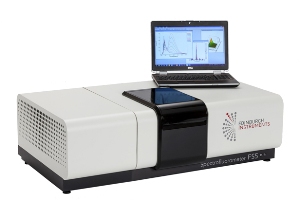

Fully Integrated Steady State FS5 V2 Spectrofluorometer

The FS5 v2, which builds on the success of the original FS5, raises the bar for fluorescence spectroscopy with its improved sensitivity, increased capabilities, and small, user-friendly design.

The FS5 v2 is designed to thoroughly characterize various samples, such as solids, liquid solutions, powders, and thin films. Its quick-exchange sample holders and advanced automation make it adaptable to a variety of industry and research needs.

Key Features

  • Unmatched Sensitivity: The FS5 v2 features an outstanding signal-to-noise ratio of 12000:1, allowing it to detect even the faintest signals.
  • Widest Spectral Coverage: The FS5 v2 creates new opportunities for examining a wider variety of samples, thanks to its extended NIR detection range of up to 2.05 µm.
  • Advanced Automation: The most recent version of the “Fluoracle” software provides complete instrument control, from data collection to sophisticated analysis, increasing the efficiency of experiments beyond all previous levels.
  • Two Key Abilities in One Unit: FS5 v2 eliminates the need for a separate spectrophotometer by providing absorption and fluorescence spectra.
  • Comprehensive Capabilities: The FS5 v2 supports a wide range of applications, including steady-state fluorescence, quantum yield, phosphorescence, and time-resolved measurements.

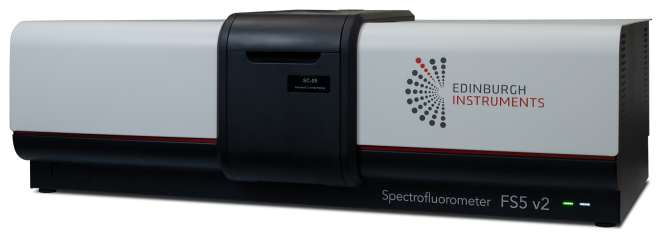

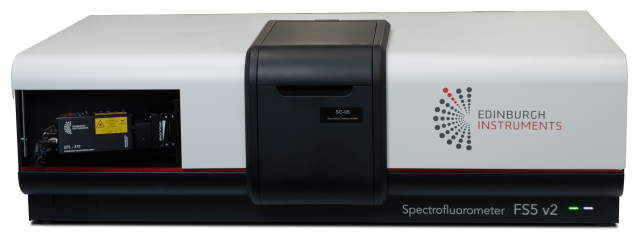

Fully Integrated Steady State FS5 V2 Spectrofluorometer

Image Credit: Edinburgh Instruments Ltd.

All New FS5 v2 from Edinburgh Instruments

Video Credit: Edinburgh Instruments Ltd.

Specification

Source: Edinburgh Instruments Ltd.


Optics All-reflective for a wavelength-independent focus with high brightness (small focus) at the sample
Source 150 W CW Ozone-free xenon arc lamp (UV-enhanced ozone generating option available)
Monochromators Czerny-Turner design with dual grating turret; plane gratings for accurate focus at all wavelength and minimum stray light
Spectral Coverage - Excitation <230 nm - 1000 nm
Spectral Coverage - Emission 200 nm - >870 nm
Filter Wheels Fully automated; included in both the excitation and emission monochromators
Bandpass - Excitation/Emission 0 to 30 nm, continuously adjustable
Wavelength Accuracy - Excitation/Emission  ± 0.5 nm
Scan Speed - Excitation/Emission 100 nm/s
Integration Time 1 ms - 200 s
Emission Detector Photomultiplier, spectral coverage 200 nm - 870 nm, cooled and stabilized
Reference Detector UV-enhanced silicon photodiode
Transmission Detector UV-enhanced silicon photodiode
Signal-to-Noise Ratio of Water Raman Signal SNR SQRT >12,000:1
Dimensions 104 cm (w) x 59 cm (d) x 32 cm (h)
Weight 65 kg

* standard water Raman measurement conditions: Excitation wavelength = 350 nm, Excitation and emission bandwidths = 5 nm, step size = 1 nm, integration time = 1 s, emission wavelength = 397 nm, noise measured at 450 nm and calculation based on the SQRT method
