When choosing a Raman instrument, a number of factors influence the selection process, including factors such as:
- Performance
- Cost
- Size
- Target sample
- Measurement setup limitation

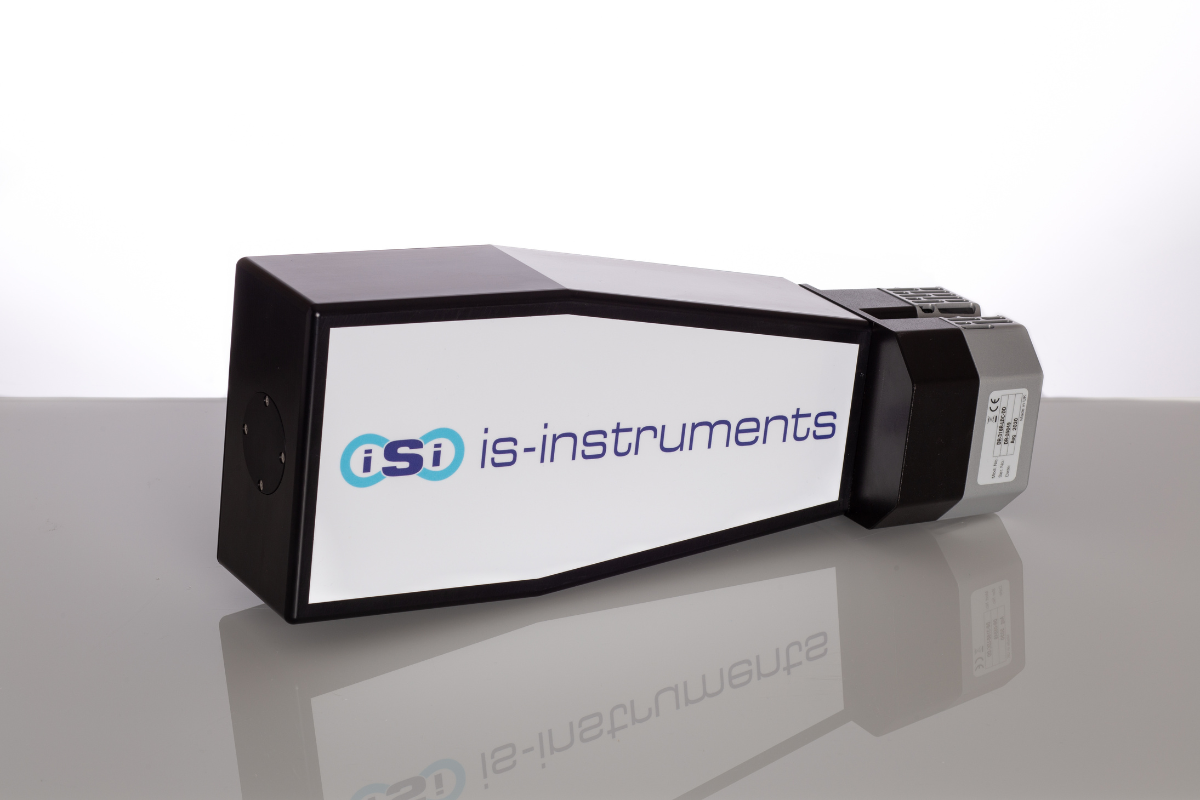

Image Credit: is-instruments
However, determining instrument performance can also be challenging due to the range of factors or specifications that may influence the use of an instrument. For example, a 50 mW handheld Raman unit may have excellent performance given the laser power being used, but will be comfortably outperformed by an instrument using a 500 mW source.
The IS-Instruments HES range confers a significant etendue advantage over classic dispersive spectrometers. This has allowed ISI to develop a new RP40 probe (which uses a F1:1# input optic with no reduction in system resolution.

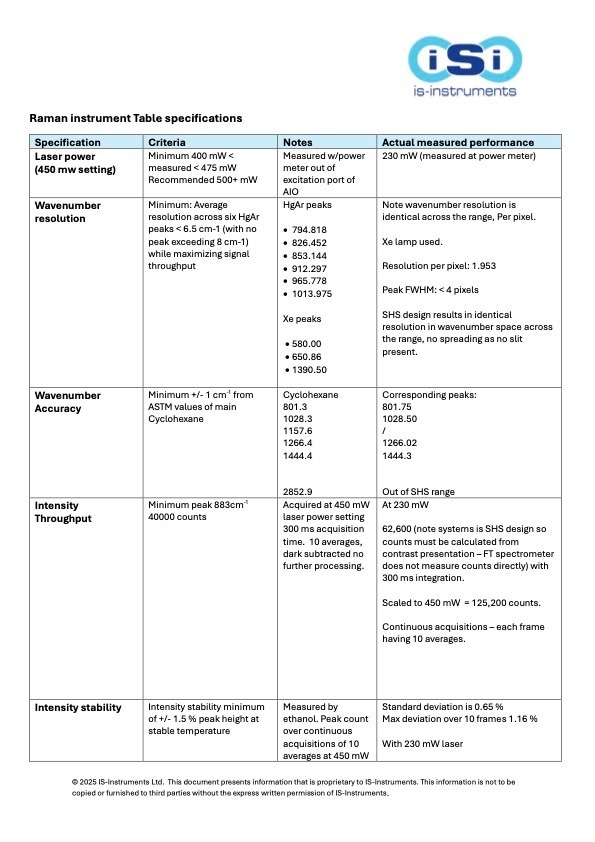

How the HES2000 device performs is given in the table here.
Image Credit: is-instruments
For further information or to discuss your requirements, please contact ISI on 01732 600474 or email us at [email protected].
