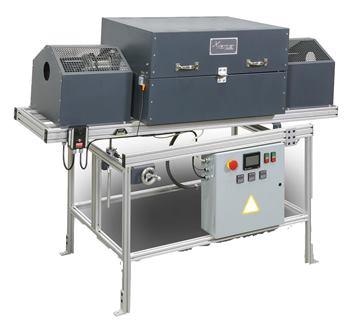

The Lab Scale Rotary Furnaces from Harper International deliver superior temperature uniformity.
Higher Degree of Innovation
As far as Harper is concerned, temperature is not the only thing that is able to rise to the challenge. Therefore, the optimization of process parameters is vital before investing in thermal process equipment to guarantee that demands related to capability and quality are met. Rotary furnaces from Harper International provide remarkable reliability, versatility and energy efficiency.
Source: Harper International
| Temperature |
Up to 1200 °C |
| Full Dimensions |
40.5” W x 84.5” L x 61” H (1030 mm W x 2150 mm L x 1550 mm H) @ 0 ° inclination |
| Heated Length |
Up to 30 in (762 mm) |
| Tube Diameter |
Up to 4 in (102 mm) |
| Tube Material Design |
Alloy, Ceramic or Quartz |
| Input Power |
46.3 FLA at 208 Volts or 51.7 FLA at 240 Volts +/- 5%, 50/60 Hertz |
| Control |
3 Zone, Independent control loops
Type K Thermocouples
Advanced Profile programming with ramp, soak, jump cycle, hold and event function for each step (up to 64 steps per profile) |
| Data & Features |
Paperless Recorder/Data Logger (CFR21 Part 11 & AMS 2750E)
Trend viewer/data viewer
File transfer/backup via LAN/WAN/Cloud |
| Optional Upgrades |
Volumetric Feeding Equipment
Gas-tight Rotary Seals package
Atmosphere Supply package for Inert, Hydrogen, or other gasses
Collection canister with air-lock valve |
