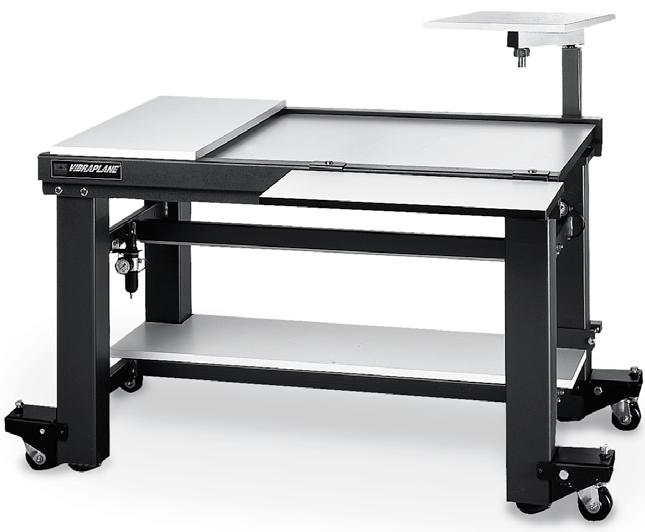

The 1200 Series LabMate Workstation is a tested performer, offering a dependable and vibration-free work environment.
Typical Applications
Surface plates, analytical balances, cell injection, wafer probing, roundness checkers, mask aligners, CMMs, confocal microscopes, electrophysiology, optical microscopes, tunneling microscopes, and prober applications
Features and Benefits
- Ideal for moving loads and higher centers of gravity
- Isolation efficiencies nearing 99 %
- Ultra-low vertical natural frequencies
- Automatic leveling and height control
- High-performance Active-Air Suspension
- VibraDamped for enhanced functionality
- 1 ” thick vibra-damped steel or 4 ” granite tabletops
- Select from 20 common sizes — Custom sizes are also offered
- Compatible with Class 100 cleanrooms — Class 10 available
Specifications

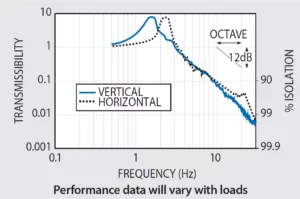

Performance Data. Source: Kinetic Systems, Inc.
| Min. Load @ 20 psi |
| Vertical Natural Frequency |
2.1 Hz |
| Isolation Efficiency @ 5 Hz |
43 % |
| Isolation Efficiency @ 10 Hz |
89 % |
| Horizontal Natural Frequency |
3.5 Hz |
| Isolation Efficiency @ 5 Hz |
40 % |
| Isolation Efficiency @ 10 Hz |
80 % |
| Max. Load @ 80 psi |
| Vertical Natural Frequency |
1.6 Hz |
| Isolation Efficiency @ 5 Hz |
76 % |
| Isolation Efficiency @ 10 Hz |
93 % |
| Horizontal Natural Frequency |
2.5 Hz |
| Isolation Efficiency @ 5 Hz |
75 % |
| Isolation Efficiency @ 10 Hz |
88 % |
| Gross Load Capacity @ 80 psi |
| 1201 |
1300 lbs. (590 kg) |
| 1202 |
2800 lbs. (1270 kg) |
| Finish |
| Standard |
Charcoal
Grey
Medium
Textured
Polyurethane |
| Class 10 |
White Epoxy
Powder Coat |
Note: Typical performance efficiencies are for microdisturbances.

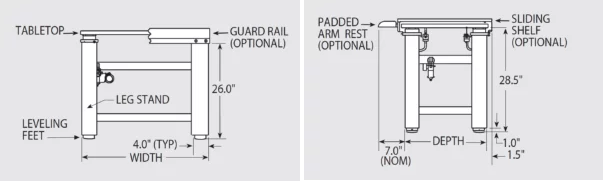

Image Credit: Kinetic Systems, Inc.
Image Credit: Kinetic Systems, Inc.

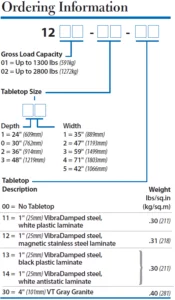

Configurations
Image Credit: Kinetic Systems, Inc.
