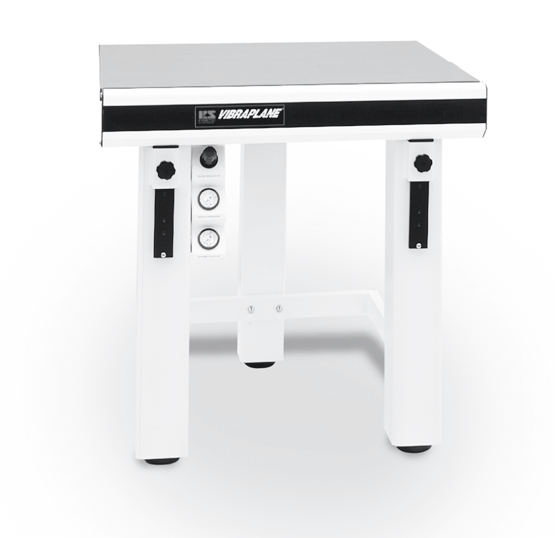

When floor space is limited, the 9200 Series Personal LabMate Vibration Isolation Workstation is the perfect choice. The load range for it is up to 440 lbs.
Typical Applications
Surface profilometers, roundness checkers, cell injection, balances, and optical microscopes.
Features and Benefits
- High-performance Active-Air Suspension
- Vertical and horizontal vibration isolation
- Ergonomic design
- 1” Thick VibraDamped steel tabletop
- Automatic leveling
- Compatible with Class 100 cleanrooms — Class 10 available
- Standard front guard rail
- Leveling feet
- Tabletop uplimit travel restrictions
Specifications
Performance Data. Source: Kinetic Systems, Inc.
| Min. Load @ 20 psi |
| Vertical Natural Frequency |
2.1 Hz |
| Isolation Efficiency @ 5 Hz |
72 % |
| Isolation Efficiency @ 10 Hz |
95 % |
| Horizontal Natural Frequency |
1.8 Hz |
| Isolation Efficiency @ 5 Hz |
82 % |
| Isolation Efficiency @ 10 Hz |
93 % |
| Max. Load @ 80 psi |
| Vertical Natural Frequency |
1.5 Hz |
| Isolation Efficiency @ 5 Hz |
85 % |
| Isolation Efficiency @ 10 Hz |
97 % |
| Horizontal Natural Frequency |
1.6 Hz |
| Isolation Efficiency @ 5 Hz |
84 % |
| Isolation Efficiency @ 10 Hz |
94 % |
| Gross Load Capacity @ 80 psi |
| 600 lbs. (272 kg) |
|
| Finish |
| Standard |
Linear White
Smooth Polyurethane |
| Class 10 |
White Epoxy
Powder Coat |
Note: Typical performance efficiencies are for microdisturbances.
Image Credit: Kinetic Systems, Inc.
Image Credit: Kinetic Systems, Inc.
Configuration
Image Credit: Kinetic Systems, Inc.
