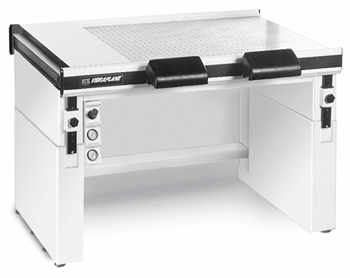

Typical applications of the 2000 Series Variable Height Workstations include metrology, microscopy, optical microscopes, mask aligning, confocal microscopes, atomic force microscopes, cell injection, wafer probing, and patch clamping.
Features and Benefits
- High-performance Active-Air Suspension
- VibraDamped steel construction
- Select from ten tabletops available in twelve standard sizes
- Infinitely modifiable over a 12-inch range
- Automatic leveling control
- Class 100 Cleanroom Compatible — Class 10 available
- Tabletop uplimit travel restraints
- Rear and front guard rails standard
Specifications

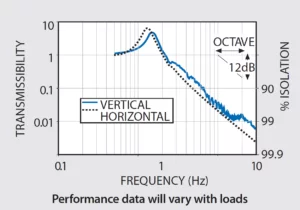

Performance Data. Source: Kinetic Systems, Inc.
| Min. Load @ 20 psi |
| Vertical Natural Frequency |
1.9 Hz |
| Isolation Efficiency @ 5 Hz |
70 % |
| Isolation Efficiency @ 10 Hz |
90 % |
| Horizontal Natural Frequency |
2.2 Hz |
| Isolation Efficiency @ 5 Hz |
64 % |
| Isolation Efficiency @ 10 Hz |
90 % |
| Max. Load @ 80 psi |
| Vertical Natural Frequency |
1.5 Hz |
| Isolation Efficiency @ 5 Hz |
85 % |
| Isolation Efficiency @ 10 Hz |
97 % |
| Horizontal Natural Frequency |
1.2 Hz |
| Isolation Efficiency @ 5 Hz |
91 % |
| Isolation Efficiency @ 10 Hz |
97 % |
| Gross Load Capacity @ 80 psi |
| 2001 |
800 lbs. (363 kg) |
| 2002 |
1300 lbs. (590 kg) |
| Finish |
| Standard |
Linear White
Smooth
Polyurethane |
| Class 10 |
White Epoxy
Powder Coat |
Note: Typical performance efficiencies are for microdisturbances.
Image Credit: Kinetic Systems, Inc.
Image Credit: Kinetic Systems, Inc.
