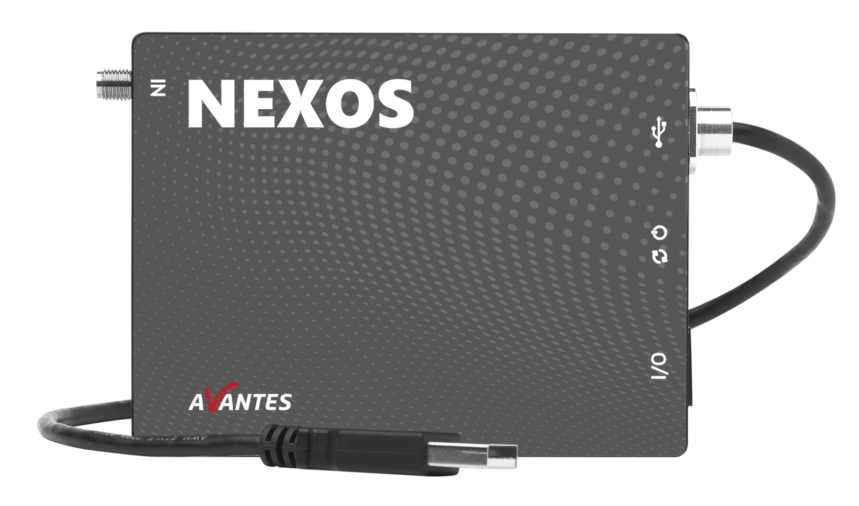

The NEXOSTM is a next-generation photonics backbone spectrometer enhancing numerous applications across multiple sectors. The most recent automation techniques from Avantes are used in the production of this device to guarantee excellent inter-instrument repeatability.
Compact Size, Limitless Possibilities
The powerful and lightweight NEXOSTM spectrometer from Avantes provides top-notch performance for spectroscopy integration. With integration durations of up to 9 μs, minimum stray light as low as 0.1%, and an excellent signal-to-noise ratio of 375:1, the spectrometer offers high-speed performance.
Avantes light sources, accessories, and AvaSoft software are all compatible with the NEXOSTM, allowing customers to tailor their setups to specific measuring needs.
This robust and adaptable spectrometer features USB2 connectivity. There are additional communication protocols (such RS232/SPI) that are tailored for Original Equipment Manufacturer (OEM) uses.
With over 15 types of gratings and six slit diameters, this device can be tailorored to exact specifications. For non-OEM products, the replacement slit option is standard.
The spectroscopic device can be used in conjunction with Software Development Kits (AvaSoft) and is ideal for OEM applications.
Avantes can create large quantities of the NEXOSTM spectrometer with exceptional accuracy and repeatability at a faster efficiency rate due to the manufacturing process's automation.
Product Variations

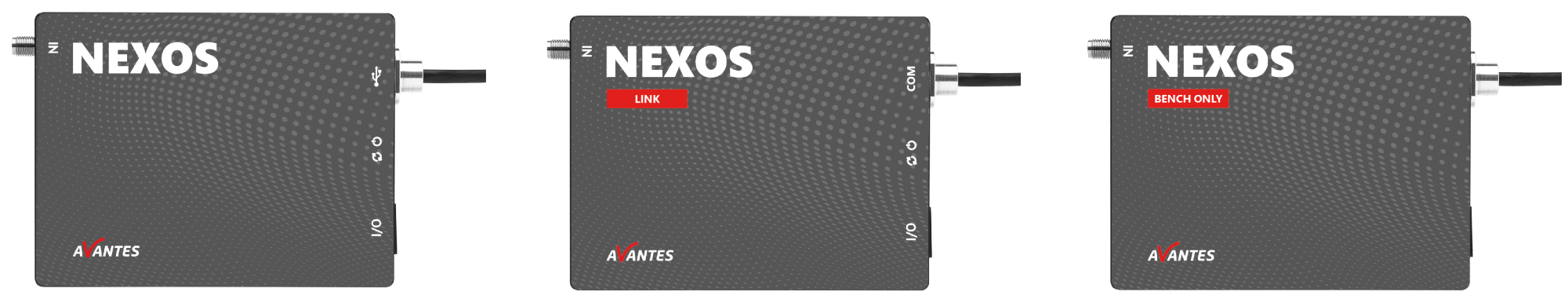

Avantes also introduces the NEXOSTM-Link and NEXOSTM-Bench Only in addition to the USB-powered NEXOSTM. For OEM clients, the Link version provides alternative communication protocols (RS232 or SPI). The Bench Only version is designed for easy implementation on either the Avantes AS7010 electronic board or the customer's own electronic board.
Image Credit: Avantes
Product Information
Technical Data
Source: Avantes
| |
NEXOS™ 2K |
NEXOS™ 4K |
| Optical bench |
Symmetrical Czerny-Turner, 75 mm focal length; spectrometer bench |
Symmetrical Czerny-Turner, 75 mm focal length; spectrometer bench |
| Wavelength range |
190-1100 nm |
190-1100 nm |
| Stray light |
0.1-1% (typical value 300 l/mm, blaze 300 nm < 0.3%) |
0.1-1% (typical value 300 l/mm, blaze 300 nm < 0.3%) |
| Detector |
HAM S11639, CMOS linear array, 2048 pixels (14 x 200 µm) |
HAM S13496, CMOS linear array, 4096 pixels (7×200 µm) |
| Signal/noise |
375:1 |
365:1 |
| Dynamic Range |
4500 |
4500 |
| Dark noise |
15 cnts |
15 cnts |
| AD converter |
16 bit, 6 MHz |
16 bit, 6 MHz |
| Integration time |
9 µs-30 sec |
9 µs-30 sec |
| Interface |
USB 2.0 (480 Mbps), pigtailed (38 cm) USB-A |
USB 2.0 (480 Mbps), pigtailed (38 cm) USB-A |
| Sample speed with on-board averaging |
0.36 ms/scan |
0.70 ms/scan |
| Data transfer speed |
0.79 ms/scan |
1.12 ms/scan |
| Digital I/O |
5 bidirectional programmable I/O; 1 Analog out, 1 Analog in, 1x5 V |
5 bidirectional programmable I/O; 1 Analog out, 1 Analog in, 1x5 V |
| Power supply |
Default USB power, 500 mA |
Default USB power, 500 mA |
| Dimensions, weight |
105 x 80x 20 mm, 277,5 grams |
105 x 80x 20 mm, 277,5 grams |
| Operating temperature range |
5-55 °C |
5-55 °C |
Gratings
Source: Avantes
| Use |
Useable range (nm) |
Spectral range (nm) |
Lines/mm |
Blaze (nm) |
Order code |
| UV/VIS/NIR |
190-1100** |
910** |
300 |
300 |
MN0300-0.30 |
| UV/VIS |
190-780 |
544-540* |
600 |
300 |
MN0600-0.30 |
| UV |
190-532 |
261-256* |
1200 |
250 |
MN1200-0.25 |
| UV |
190-472 |
168-152* |
1800 |
UV |
MN1800-0.25 |
| UV |
190-423 |
121-103* |
2400 |
UV |
MN2400-0.25 |
| UV |
190-337 |
72-57* |
3600 |
UV |
MN3600-0.25 |
| UV/VIS |
280-852 |
536-532* |
600 |
400 |
MN0600-0.40 |
| VIS/NIR |
300-1100** |
800** |
300 |
500 |
MN0300-0.50 |
| VIS |
350-959 |
529-519* |
600 |
500 |
MN0600-0.50 |
| VIS |
320-776 |
247-216* |
1200 |
500 |
MN1200-0.50 |
| VIS |
360-641 |
147-121* |
1800 |
500 |
MN1800-0.50 |
| VIS |
360-489 |
96-89* |
2400 |
VIS |
MN2400-0.50 |
| NIR |
480-1066 |
515-506* |
600 |
750 |
MN0600-0.75 |
| NIR |
600-844 |
210-204* |
1200 |
750 |
MN1200-0.75 |
| NIR |
600-1100 |
339-300* |
830 |
800 |
MN0830-0.80 |
| NIR |
600-1100** |
500** |
300 |
1000 |
MN0300-1.00 |
| NIR |
600-1100 |
500 |
600 |
1000 |
MN0600-1.00 |
A selected set of possible start-stop ranges apply. Please contact us to discuss your options. * Depends on the starting wavelength of the grating; the higher the wavelength, the bigger the dispersion and smaller the range to select ** Please note that not all pixels will be used for the useable range
Resolution
Source: Avantes
| Slit size (µm) |
10 |
25 |
50 |
100 |
200 |
500 |
| |
2K resolution |
|
|
|
|
|
| 300 lines/mm grating |
1.0 |
1.4 |
2.25 |
4.8 |
9.2 |
21.3 |
| 600 lines/mm grating |
0.40-0.53* |
0.7 |
1.2 |
2.4 |
4.6 |
10.8 |
| 830 lines/mm grating |
0.32 |
0.48 |
0.93 |
1.7 |
3.4 |
8.5 |
| 1200 lines/mm grating |
0.20-0.28* |
0.27-0.38* |
0.52-0.66* |
1.1 |
2.3 |
5.4 |
| 1800 lines/mm grating |
0.10-0.18* |
0.20-0.29* |
0.34-0.42* |
0.8 |
1.6 |
3.6 |
| 2400 lines/mm grating |
0.09-0.13* |
0.13-0.17* |
0.26-0.34* |
0.44-0.64* |
1.1 |
2.7 |
| 3600 lines/mm grating |
0.06-0.08* |
0.10 |
0.19 |
0.4 |
0.8 |
1.8 |
| |
|
|
|
|
|
|
| |
4K resolution |
|
|
|
|
|
| 300 lines/mm grating |
0.50-0.70 |
1.4 |
2.25 |
4.8 |
9.2 |
21.3 |
| 600 lines/mm grating |
0.30-0.36* |
0.7 |
1.2 |
2.4 |
4.6 |
10.8 |
| 830 lines/mm grating |
0.25 |
0.48 |
0.93 |
1.7 |
3.4 |
8.5 |
| 1200 lines/mm grating |
0.14-0.18* |
0.27-0.38* |
0.52-0.66* |
1.1 |
2.3 |
5.4 |
| 1800 lines/mm grating |
0.09-0.11* |
0.20-0.29* |
0.34-0.42* |
0.8 |
1.6 |
3.6 |
| 2400 lines/mm grating |
0.07-0.09* |
0.13-0.17* |
0.26-0.34* |
0.44-0.64* |
1.1 |
2.7 |
| 3600 lines/mm grating |
0.05-0.06* |
0.10 |
0.19 |
0.4 |
0.8 |
1.8 |
*Depends on the starting wavelength of the grating; the higher the wavelength, the bigger the dispersion and the higher the resolution.
Ordering Information
Source: Avantes
| . |
. |
| AvaSpec-NXS2048CL |
Compact fiber-optic spectrometer, 75 mm focal length, 2048 pixel CMOS detector, USB 2 powered interface, needs DCL, second order suppressing, replaceable slit |
| AvaSpec-NXS4096CL |
Compact fiber-optic spectrometer, 75 mm focal length, 4096 pixel CMOS detector, USB 2 powered interface, needs DCL, second order suppressing, replaceable slit |
| *OEM AvaSpec-NXS2048CL |
OEM Compact fiber-optic spectrometer, 75 mm focal length, 2048 pixel CMOS detector, USB 2 powered interface, needs DCL, second order suppressing, fixed slit |
| *OEM AvaSpec-NXS4096CL |
OEM Compact fiber-optic spectrometer, 75 mm focal length, 4096 pixel CMOS detector, USB 2 powered interface, needs DCL, second order suppressing, fixed slit |
Options
Source: Avantes
| . |
. |
| SLIT-XX-PRS |
Replaceable Slit for non OSF configurations. Slit size, please specify XX = 10, 25, 50, 100, 200, 500 µm Slit size, please specify XX = 10, 25, 50, 100, 200, 500 µm |
| SLIT-XX-PRSF |
Replaceable Slit for OSF configurations. Slit size, please specify XX = 10, 25, 50, 100, 200, 500 µm |
| *SLIT-XX-P |
Fixed Slit for NEXOS. Slit size, please specify XX = 10, 25, 50, 100, 200, 500 µm |
| OSC |
Order sorting coating for grating MN 0600-0.50 |
| OSC-UA |
Order sorting coating for grating MN 0300-0.30 / MN 0300-0.50 |
| OSC-UB |
Order sorting coating for grating MN 0600-0.50 |
| OSF-YYY-3 |
Order sorting filter for reduction of second-order effects, please specify YYY = 305, 395, 47, 515, 550 or 600 nm,ndepends on range |
| DCL |
Detector Collection Lens. To be included |
Avantes NEXOS Spectrometer - Empowering Spectroscopy Solutions
Video Credit: Avantes
* Only for OEM customers Avantes will select needed second order suppression based on desired configuration.
