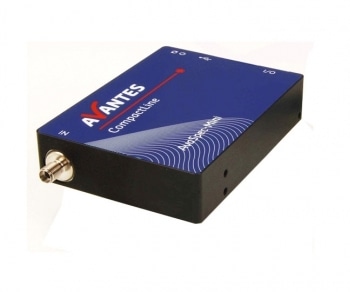

Avantes is happy to launch the next generation of AvaSpec-Mini spectrometers with CMOS detectors and sophisticated electronics and communications. Similar to the original AvaSpec-Mini, the CL series is merely the size of a deck of cards, yet it has excellent temperature and wavelength stability. The instrument is perfect for handheld applications, and users can easily take it anywhere they like.
CMOS Inside
The AvaSpec-Mini-CL series can either be fitted with the first on the market 4096-pixel array or a 2048 pixel CMOS detector. Users can enjoy the speed and improved native UV/NIR response of CMOS with excellent resolution to 0.1 nm which is not available anywhere else. The low stray light design enables less than 0.17% stray-light, and the fast response time has data transfer speeds as fast as 4.6 ms/ scan and integrations times ranging between 30 µs and 59 s.
The First of its Kind 4096 Pixel Mini
AvaSpec-Mini4096CL – the first on the market 4096 pixel CMOS array – is one of the most highly anticipated product releases of 2018.
Technical Information
| |
AvaSpec-Mini 2048CL |
AvaSpec-Mini 4096CL |
| Optical Bench |
Symmetrical Czerny-Turner,
75 mm focal length, MK II |
| Wavelength range |
200-1100 nm |
| Stray-light |
<0.2% |
| Sensitivity |
337.500 |
261.000 |
| Detector |
HAM S11639 , CMOS linear array,
2048 pixels (14x200 μm) |
HAM S13496 , CMOS linear array,
4096 pixels (7x200 μm) |
| Signal/Noise |
330:1 |
300:1 |
| AD converter |
16 bit, 6 MHz |
| Integration time |
30 μs - 50 s |
| Interface |
USB 2.0 (480 Mbps) / pigtailed (50 cm) USB-A |
| Sample Speed with on-board averaging |
3.0 ms/scan |
6.5 ms/scan |
| Data transfer speed |
4.6 ms /scan |
8.9 ms/scan |
| I/O |
5 bidirectional programmable I/O; 1 analog out; 1 analog in, 1x5 Vz |
| Power supply |
Default USB power, 500 mA |
| Dimensions, weight |
95 x 68 x 20 mm, 175 grams |
| Temperature range |
0-55 °C |
Gratings
| Use |
Useable range (nm) |
Spectral range (nm) |
Lines/mm |
Blaze (nm) |
Order code |
| 2048 CL |
| UV |
200-400 |
167 |
1800 |
250 |
MN 1800-0.25 |
| VIS |
330-900 |
530 |
600 |
500 |
MN 600-0.50 |
| NIR |
550-1100 |
520 |
600 |
1000 |
MN 600-1.00 |
| UV/VIS/NIR |
200-1100 |
900 |
300 |
300 |
MN 300-0.30 |
| VIS/NIR |
360-1100 |
720 |
300 |
500 |
MN 300-0.50 |
| 4096 CL |
| UV |
200-400 |
170 |
1800 |
250 |
MN 1800-0.25 |
| VIS |
330-900 |
535 |
600 |
500 |
MN 600-0.50 |
| NIR |
550-1100 |
525 |
600 |
1000 |
MN 600-1.00 |
| UV/VIS/NIR |
200-1100 |
900 |
300 |
300 |
MN 300-0.30 |
| VIS/NIR |
360-1100 |
720 |
300 |
500 |
MN 300-0.50 |
Resolutions
| Slit size (µm) |
| 2048CL |
| Grating (lines/mm) |
10 |
25 |
50 |
100 |
200 |
500 |
| 300 |
1.00 |
1.30 |
2.40 |
4.80 |
9.20 |
22.00 |
| 600 |
0.40-0.53 |
0.70 |
1.20 |
2.40 |
4.60 |
11.00 |
| 1800 |
0.10-0.18 |
0.22 |
0.34-0.42 |
0.80 |
1.60 |
3.60 |
| 4096CL |
| 300 |
0.50-0.70 |
1.20-1.30 |
2.17 |
4.60 |
9.00 |
20.00 |
| 600 |
0.30-0.36 |
0.58-0.60 |
1.17 |
2.20 |
4.50 |
10.00 |
| 1800 |
0.09-0.11 |
0.18 |
0.36-0.40 |
0.78 |
1.50 |
3.70 |
*Typical values. Small deviations are possible.
