Coating Testing

Featured Equipment
Semilab offers a unique modular optical platform, the SE-2000, which includes a spectroscopic ellipsometer with rotating compensator optics.
Lap offers a 3 - track thickness measurement gauge called CTG. The gauge is equipped with adjustable track positions. Width and length measurement can be added if required (CTLWG).
Other Equipment
The Bench Glossmeter is a simple to use compact instrument that analyze the surface finish of surfaces, in particular coated surfaces.
BYK-Gardner offers a wide variety of charts and drawdown cards for almost any application and coating material.
The MSP100 Microspectrophotometer and Thin Film Measurement System is used to characterize optical properties of thin films, thick coatings over a micron region area.
EP5, EP12 and EP20 tools from Semilab are based on Ellipsometric porosimetry (EP) having various degree of automation and wafer size capabilities. EP measures the change of the optical properties and thickness of the materials during adsorption and desorption of either an organic solvent or water at reduced pressure.
The LUMiFrac Adhesion Analyser from LUM is the winner of the Berlin-Brandenburg 2012 Innovation Award and is the new benchmark for determining adhesive and tensile strengths. The LUMiFrac employs centrifugal forces to stress multiple samples at once.
The micro-gloss has been an excellent industry standard in gloss measurement for several years.
VG Scienta offers an advanced and highly sensitive membrane permeation measurement instrument called VacuTRAN.
The Alpha SE™ is the newest addition to the JA Woollam line of ellipsometers. This new ellipsometer is designed to make SE measurements as fast and simple as possible. The Alpha-SE™ will measure both thickness and index with the use of the Alpha-SE software. With the compact, fully integrated design and USB connection make the ultimate table top tool.
Zetec’s MIZ-28 delivers more technology and performance for high-speed, high-efficiency inspection of heat exchanger tubing. Its data management features lead the industry with more on-board data storage and easy file transfer. And the MIZ-28 supports existing Zetec equipment and software already deployed for eddy current inspections.
This hydraulic pull-off type tester is fitted with a flexible hose, so that test can be performed on difficult to reach area, e.g. internal or external pipe surfaces.
The GES5E is the SOPRA core instrument for R&D applications. GES5E integrates advanced and well proven opto-mechanical designs coupled to high performance electronics, Spectrometers and spectrographs and user friendly Windows software. GES5E is the most recent model of 5 generations of spectroscopic ellipsometers developed by SOPRA.
The TALYS- ASP300 is a wet bath monitoring analyzer which is designed for use in semiconductor industry. It is also suitable for monitoring a wet etching, cleaning, and PR removal bath.
UNECS-3000A is an advanced, ultra-fast spectroscopic ellipsometer that uses snap shot measurement technique with automated mapping to measure optical and thickness parameters of thin films.
HORIBA Scientific has unveiled the Smart SE Spectroscopic Ellipsometer which is a powerful, versatile and cost-effective instrument for quick and precise thin film measurements.

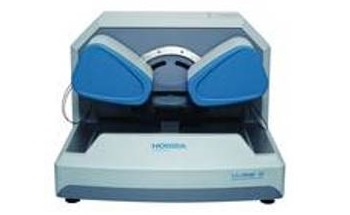

The UVISEL 2 available from HORIBA Scientific is a fully integrated and automated ellipsometer which has been specifically designed for industrial and research-oriented users.
The PosiTector 6000 is a rugged, weatherproof coating thickness gauges for accurate measurement of coating thicknesses on all metal substrates.
We manufacture our coating thickness gauges for convenience and ease-of-use in addition to accuracy, and design them in a variety of models (handheld, benchtop, multi-purpose).
The T3 is an advanced new eddy current probe and driver combination developed by Monitran Technology in partnership with QinetiQ.
The new Mikrotest 7 combines the proven measuring principle of magnetic attraction with digital technology. It offers both high resolution measurement and ease of use. The measurement principle is still based on the attraction force of a permanent magnet on steel as defined in all International Standards.
The SENresearch broadband spectroscopic ellipsometer family is designed to meet the requirements of modern research with special emphasis on speed and accuracy for an unmatched variety of applications.
A highly precise coating applicator is required to paint application onto a drawdown chart to achieve a consistent dry paint film.
The FilmTek™ 2000SE is a high performance spectroscopic ellipsometer for thin film characterization that measures from the deep UV to NIR (190-1700nm). Based on a rotating compensator design, the FilmTek™ 2000SE spectroscopic ellipsometer combines spectroscopic ellipsometry with multiple angle reflectometry to make it ideally suited for measuring the thickness and optical constants (n & k) of very thin films.
The Calotest, available from CSM Instruments, is used for determining coatings with thicknesses of 0.1 to 50 µm.
ETher NDE’s WeldCheck Eddy Current (ECT) flaw detector has been designed for users within a wide range of industries. The instrument is compact, lightweight and enclosed in a rugged aluminium alloy outer case.
The PATTI (Pneumatic Adhesion Tensile Testing Instrument) QUANTUM DDIGITAL is the mid level instrument from the Semicro PATTI range and is suited to measuring adhesion strength. The reduced weight of this instrument makes it more portable.
Admet single column electromechanical testing systems are ideal for determining the mechanical properties of a variety of materials in a divers set of applications. Systems are ideal for measuring the tensile, flexural, shear, creep, and compressive properties of materials, components, and devices.
The SR300 Spectroscopic Reflectometer & Film Thickness Measurement System can be used to measure the film thickness, refractive index, reflection, transmission and absorption spectra of thin films and coatings.
The P-A-T Paint Adhesion Test Kit produced by Gardco contains all of the tools and materials needed, except for the multi-tooth cutter blade, for conducting adhesion tests on paints applied to a flat, uniform surface in accordance with ASTM Test Method D 3359, method B and DIN Standard No. 53151.
The Phasec 3 series eddy current flaw detectors have been designed to detect flaws on ferrous and non-ferrous metals and is suitable for almost all eddy current applications. Phasec 3 offers full phase functionality in an ultra-compact package which can fit into a toolbox, briefcase, or even your pocket.
The PATTI (Pneumatic Adhesion Tensile Testing Instrument) QUANTUM is the entry level instrument from the Semicro PATTI range and is suited to measuring adhesion strength.

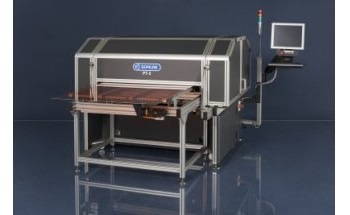

The PT-5 panel tester Gen5 is designed to measure properties of thin film solar cells that meet the GEN-5 standard. It incorporates an ellipsometer, a non-contact resistivity mapper and a haze meter.

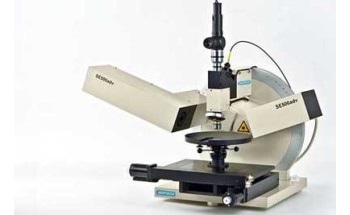

The SE 500adv can be operated as a laser ellipsometer, film thickness probe FTPadv or as a Combined Ellipsometry and Reflectometry (CER) ellipsometer. As a result, it offers maximum flexibility never reached by standard laser ellipsometers.

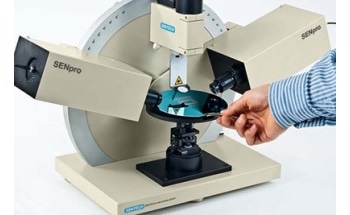

The spectroscopic ellipsometer SENpro represents a new generation of cost effective spectroscopic ellipsometers featuring simple operation, measurement speed and combined data analysis of ellipsometric measurements at single or multiple angle of incidence.
Equipped with a power digital closed-loop controller, ADMET’s Micro EP is a mini tester that can also adapt to many microscope stages. Micro EP models are available with force capacities to 5kN (1,125 Lb), optional crosshead strokes, testing speeds, thermoelectric heaters and coolers.
The WT-2000PVN is a tabletop measurement system, capable of performing a variety of measurements on PV cells, wafers, and blocks. The base system includes the overhead functions, and you configure the measurement capabilities to match your specific needs.
The Particle Insight available from Particulate Systems is an advanced image analyzer that is suitable for those applications where the shape of raw materials is an important criterion.
The ADMET eXpert 2600 series dual column testing machines tackle the toughest tests with their superior axial alignment, stiffness, and crosshead guidance. A simple design allows for lower cost, faster delivery, and years of maintenance free operation. All eXpert systems are capable of performing compression tension, and flexure tests.
Digital eddy current testing for the metal processing industry.
The Semilab AMS 3300 uses the exclusive SurfaceWave™ technology to measure the thickness and uniformity of thin film metals and dielectrics. It's a low cost but powerful product built expressly for copper, low k materials.
The Filmetrics F20s are general-purpose film thickness measurement instruments, and are used in thousands of applications worldwide. Thickness and refractive index can be measured in less than a second. Like all of our thickness measurement instruments, the F20 connects to the USB port of your Windows™ computer and sets up in minutes.
The Angstrom Sun Technologies Integrated Solution for In-Line Film Thickness Monitoring with Spectroscopic Reflectometer is an easy to use system for monitoring film thickness and refractive index.
EDDYCHEK S is a modern, high speed tester capable of a wide scope of applications ranging from one-coil inspection problems (e.g. weld-seam testing) to multichannel applications.
The ultimate eddy-current test system for use during production fastest material sorting an high-resolution crack detection.
The PATTI QUANTUM GOLD is the top of the line Pneumatic Adhesion Tensile Testing Instrument from Semicro. It has advanced features and comes with a Netbook pre-loaded with LabVIEW®-Generated analysis software.
Integrated probe for measurements on ferrous and non-ferrous materials, with automatic substrate recognition.
The SRM100 Film Thickness Mapping Measurement System can measure the film thickness and refractive index across samples as big as 300x300mm. Features and applications are provided herein.
The all new US-454A brings the best innovative multi-frequency eddy current technology to market. Built from the rugged US-454 architecture, UniWest's engineering team has transformed eddy current testing by offering single and multi frequency inspection, frequency mixing capabilities, enhanced signal to noise, USB, ethernet and data storage capability; along with unprecendented digital strip chart data collection.
The New Sheen Glossmaster range of glossmeters have been designed mainly with the user in mind. They now offer greater versatility and ease of use, these instruments have far superior data handling capabilities than ever before.
