Sample Preparation Techniques for Microscopic Analysis in Metallurgy

Embedding and polishing are commonly used flat sample preparation techniques for microscopic analysis. Embedding protects fragile or coated materials during preparation and provides good edge retention. It is also used to prepare samples of a consistent size such as clay, minerals, or other particles. Additionally, embedding enables sectioning samples for further interior analysis. The specimens are often embedded in a resin with a standard diameter of 1” (Figure 1).

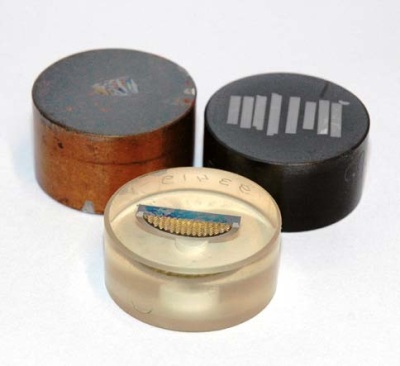

Figure 1. Samples embedded in a resin BSE Mode of β-processed Ti-6-4

The Phenom™ is equipped with a special metallurgical mount holder that can securely hold 1¼” (~32mm) samples (Figure 2).

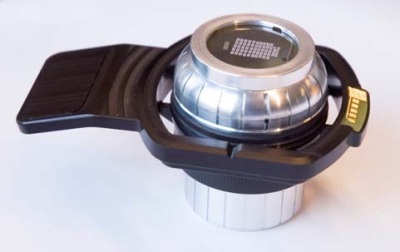

Figure 2. Special holder to support the polished metallurgical mounts up to 1¼”

Sample Preparation

Mechanical preparation is a commonly used technique for preparing metallographic samples for microscopic analysis. It involves using abrasive particles in successively finer steps to strip material from the surface until achieving the desired result.

Preparing materialographic/metallographic samples for light microscopy or SEM for hardness testing or image analysis is a challenging task. Nevertheless, the availability of more sophisticated and fully automatic systems makes things easier. However, it is a time-intensive process for sectioning, grinding, mounting, and polishing samples.

Grinding and Polishing

With grinding, saw marks and levels are removed and the sample surface is cleaned. The artifacts of grinding are eliminated with very little material removal through polishing. Fixed abrasives composed of abrasive particles bonded to the paper or plates are used in the grinding process for fast material removal. Abrasive particles in a liquid that are suspended on a cloth are used for polishing.

Depending on the hardness, it will take up to one hour for sectioning sample. The grinding and polishing process may require roughly 2 - 2½ hrs.

Microscopic Analysis

Image of a polished surface of glass in contact with glass furnace construction material (ZAC) is shown in Figure 3. The image is captured at 1000x in compositional mode, showing different phases with different grey levels.

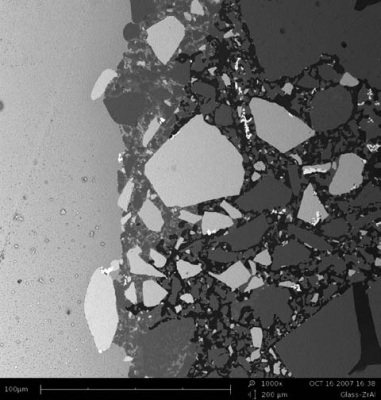

Figure 3. Image of a polished surface of glass (left) in contact with glass furnace construction material (right)

Glass-furnace diffusion zone is shown in Figure 4, wherein white portions represent the zirconium particles and dark grey portions represent the aluminum granules. As can be seen, the glass phase (on the left side) is diffusing into the granules.

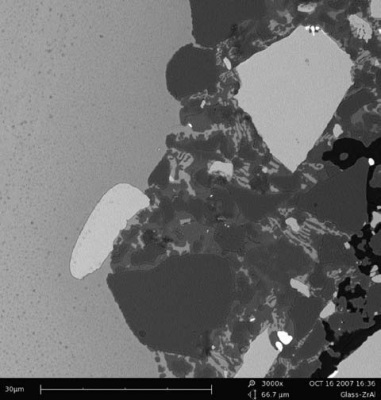

Figure 4. Glass-furnace diffusion zone

Figure 5 shows a picture captured in topographical mode, revealing the height variations between the phases after polishing.

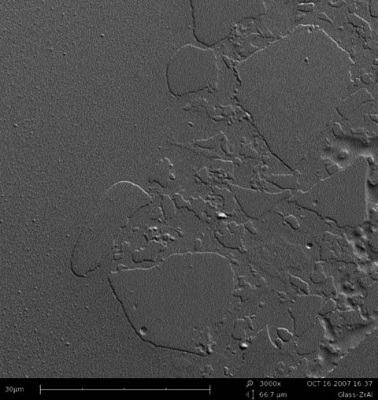

Figure 5. Topographical image showing the difference in height between the phases after polishing
