What is an Actuation Test?

An actuation test measures the process that occurs when a mechanical device operates. For example, the release of a hairspray aerosol, a liquid soap hand pump, an inhaler barrel, or a keyboard or camera button.

It is a non-destructive test, simply causing a device to function in the way in which it was designed and used to measure every aspect of interest of this function.

Why are Actuation Tests Important?

Many characteristics of actuation can be measured, and the parameters of interest depend on the product under investigation. In the case of an aerosol, hand pump, or inhaler, the main parameter required is the force used to expel its contents. The travel that occurs during actuation is also frequently important.

Dispensers – Pumps and Aerosols

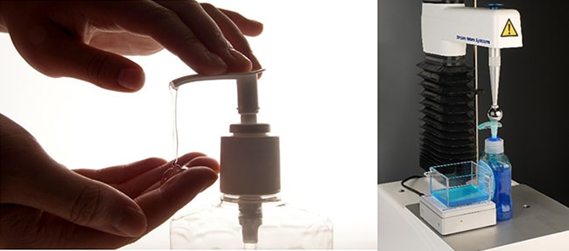

 Measuring the force to actuate and sample delivery weight.

Measuring the force to actuate and sample delivery weight. Image Credit: Stable Micro Systems Ltd​

Pump dispensers come in many shapes and sizes, designed to dispense a specific quantity of product with each pump. They are operated by a finger press, with the user pushing down to build up pressure on a piston within.

As with any packaging, changes in design occur to keep up with visual trends or to suit certain user groups such as children or the elderly. In these groups, users can find a sufficient force application and correct pump direction difficult to achieve without tipping or moving the dispenser.

The same principles apply to aerosol dispensers. An actuation test using a Texture Analyser is useful for such products to assess these issues. A hemispherical probe is most commonly used as representative of a finger press, providing an imitative test.

For packaging that dispenses a sample upon actuation, the use of a Dynamic Integrated Balance provides an additional high-speed weighing parameter. During the test, the deposited sample is simultaneously weighed while a force, distance, and time data are collected.

Post-test, users can view the product quantity and deposition rate on a second axis alongside force data.

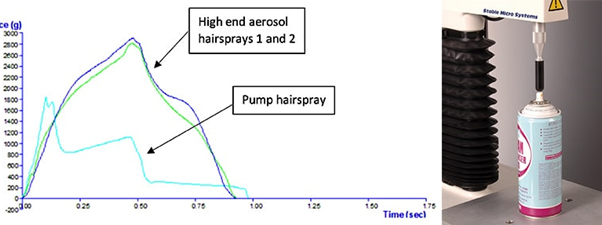

Typical graph showing actuation force measurement comparison of dispensers.

Typical graph showing actuation force measurement comparison of dispensers. Image Credit: Stable Micro Systems Ltd​​​​​​​

Metered Dose Inhalers

Actuation mechanisms are often used for drug delivery. For example, a metered-dose inhaler is commonly used to treat lung conditions such as asthma, delivering a precise drug dose into the lung with each pump. Patients rely on this precision and often need the inhaler to provide them with their medication at a time when their physical strength is low.

The actuation properties of an inhaler can be measured using a Texture Analyser, which imitates the downward movement of the finger, measuring the force needed to actuate the spray and administer the dose. This is a simple test and uses a specially designed Metered Dose Inhaler Test Rig.

The metering valve, which is assessed using this test, is a critical component of a finished metered-dose inhaler. Metering valve systems can be affected by alterations to design, and product performance is dependent on the interaction between the elastomeric components and the drug formulation.

Re-designs of the valve are often necessary after changes to the formulation, such as the use of a new propellant system, to ensure the drug can still be delivered with minimum difficulty.

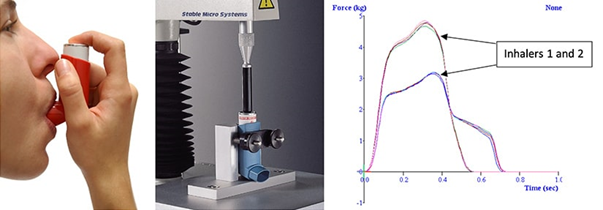

Typical measurement of a metered dose inhaler.

Typical measurement of a metered-dose inhaler. Image Credit: Stable Micro Systems Ltd​

Electronics

The actuation properties of electronic buttons and switches are assessed in a similar way. This applies to objects such as camera and mobile phone buttons as well as in determining the life of a membrane switch. To achieve switch contact closure or the actuation of a motion, it is important the button or switch can be pressed with enough force with ease.

However, the tactile actuation (click felt under the operator’s finger) and electronic actuation (the actual point at which the button press is registered electronically) do not always occur simultaneously, so they are measured separately. Two of these methods are described below.

Computer Keyboard

During an objective test on a keyboard, the switches are primarily under investigation, and these are actuated by pressing keys. During a key actuation test, the keyboard is placed on the base of the Texture Analyser and a domical probe used to press and retract a key in a controlled manner. Each key may be tested in this way.

The key’s force-distance profile gives information on the force required to overcome the ‘tactile bump’, as well as the distance at which this force peak occurs. Electronic actuation can happen at any point on the key’s travel.

To record this point, texture analysis software is set up to record an ‘event’ when the key is actuated, marking a point on the curve. This can be used to measure the key’s pre-travel before actuation and to compare the tactile and electronic actuation points.

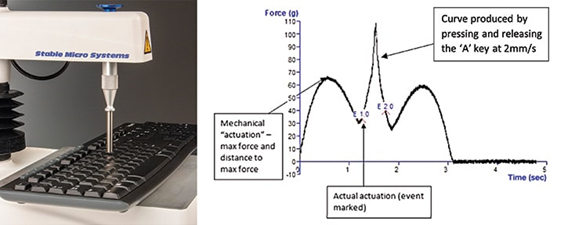

Typical measurement of computer keyboard key.

Typical measurement of a computer keyboard key. Image Credit: Stable Micro Systems Ltd​

Push Button

The mechanical actuation of a push-button switch can be measured using a spherical probe and studying the force profile, as with the keyboard test. The electronic actuation is measured by connecting the switch to a Resistance Conversion Unit, a constant current source, to pinpoint the exact actuation point.

When the switch is actuated, the resistance drops down to ~0 ohms. When the load is removed, the resistance rises again, to 2000 ohms in the example used here.

The distance to actuation or 'pretravel' is found by locating the distance at which the resistance drops to ~0 ohms. The 'tactile force' is measured as the maximum force felt before actuation, and the 'tactile point' is the distance at this point.

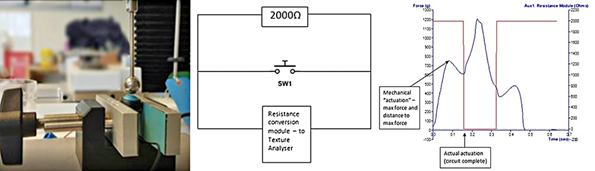

Typical measurement of electronic button actuation force and simultaneous resistance.

Typical measurement of electronic button actuation force and simultaneous resistance. Image Credit: Stable Micro Systems Ltd​

In the case of all electronics buttons including keyboards and push buttons, there are several other calculations from the actuation graph that may be of interest. For example, the shape of the force profile, the reset point (when the key is no longer activated upon unloading), the time before actuation, and the hysteresis (the distance between actuation and reset).

Several other aspects of the key performance could also be investigated using this type of test setup, for example, the effect of post-test speed on the forces involved, the force profile itself, and the unloading behavior. These can all be added to the analysis macro as necessary.

The addition of an Acoustic Envelope Detector adds useful information regarding the user’s experience of pressing the button, as the sounds involved are distinctive and an important contribution to the feel and perceived quality of the product.

Stable Micro Systems manufactures instruments that measure the tensile and compressional properties of all types of materials. As with any manufacturing innovation, a large amount of research takes place during development, and the end product must go through a quality control process to assess its physicochemical properties.

A Texture Analyser/Materials Tester is a crucial part of this procedure, giving a reliable way to test the mechanical properties of products or materials by applying a choice of compression, tension, extrusion, adhesion, bending, or cutting tests to measure a product’s physical properties e.g. tensile strength, puncture strength, fracturability, and compressibility, to name but a few.

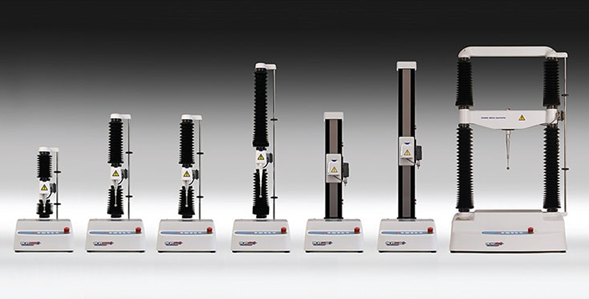

 A range of Texture Analysers/Material Testers varying in maximum force capacity.

A range of Texture Analysers/Material Testers varying in maximum force capacity. Image Credit: Stable Micro Systems Ltd​
