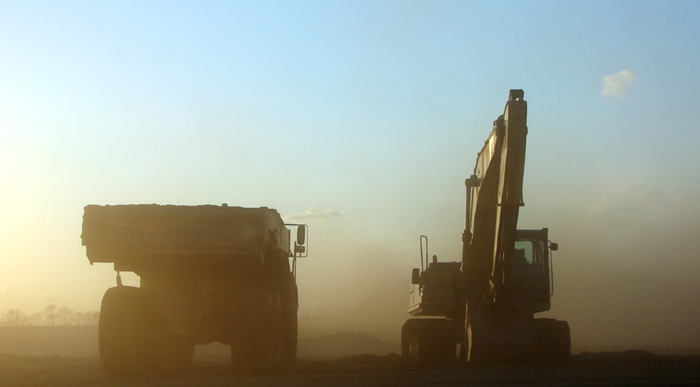

"Fugitive dust" refers to airborne particulate matter released into the environment due to both human and natural activities across large, open areas. This type of dust is commonly produced by operations such as soil disturbance, vehicular traffic on unpaved roads, heavy machinery use, blasting, and wind erosion.
Frequent sources include road construction sites, where dirt becomes aerosolized, and agricultural equipment moving across dry or unpaved terrain. The storage, handling, and transport of aggregate materials also contribute to fugitive dust, often creating conditions similar to historical "dust bowl" events.
Image Credit: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
Unlike particulates from combustion (e.g., vehicle exhaust or internal combustion engines) or from industrial processes such as soldering, welding, or brazing, fugitive dust does not stem from a defined point source and is typically released in an uncontrolled manner.
While environmental agencies do provide definitions for dust sources and enforce exposure limits, verifying whether a dust control strategy is effective remains challenging. For this reason, having a reliable method to rapidly detect when your site exceeds allowable exposure thresholds is vital for maintaining regulatory compliance.
History
The Clean Air Act (CAA) of 1970 established National Ambient Air Quality Standards (NAAQS) for a number of hazardous pollutants, one of which was particulate matter (PM).
The first regulation related to PM was introduced in April 1971, requiring the measurement of total suspended particulates (TSP) within the 25–45 micron (μm) range. Exposure limits were defined based on mass concentration, including a 24-hour average limit of 260 μg/m3 and an annual geometric mean of 75 μg/m3.
Over the following four decades, both the allowable exposure limits and the particle size criteria were revised and reduced. PM2.5 (particulate matter with a diameter of 2.5 μm or smaller) has since become the standard due to its significant impact on human health. However, for many fugitive dust applications, PM10 measurements remain most common due to their relevance in broader environmental effects.
To ensure compliance with the NAAQS, a network of State and Local Air Monitoring Systems (SLAMS) feeds data into the EPA’s Office of Air and Radiation (OAR) Aerometric Information Retrieval System (AIRS) database.
Although fugitive dust is not directly regulated under the NAAQS, its emissions significantly contribute to overall particulate levels and exposure limits.
Typically, emissions are overseen by local regulatory bodies such as state environmental protection agencies (EPAs), air quality management districts, air resource boards, or dedicated program agencies.
Permissible exposure limits and enforcement practices vary widely. In most regions, specific limits are set for projects known to generate high levels of particulate matter, and these limits are usually outlined within the operating permit.
Operating permits vary depending on the type of project—such as construction, remediation, or demolition—and often allow for higher dust exposure than the NAAQS due to the nature of the work.
As exposure limits are approached, dust emissions can be managed using localized containment methods. Temporary strategies include water sprays and cover materials to suppress airborne dust during active operations. As a project nears completion, longer-term measures such as paving or landscaping may be used to bring emissions down to standard ambient levels.
One example of a specialized regulatory program is the New York State Department of Environmental Conservation (DEC) technical guidance document DER-10, which outlines procedures for site investigation and remediation.
This is not intended for worker safety (e.g., respiratory protection), but instead aims to safeguard areas beyond the active work zone. It provides monitoring protocols designed to prevent off-site exposure.
Appendix 1B specifically outlines guidance for fugitive dust and particulate monitoring, as well as dust control techniques. Critical requirements include real-time monitoring, broad measurement ranges, data logging, and visible alarms.
Real-time data is vital because site conditions can shift rapidly—particularly during earth-moving activities or as new areas are opened (see reference A). While DER-10 is specific to New York State, it serves as a strong model for effective monitoring and reflects practices used widely across the United States and internationally.
The impact of fugitive dust extends well beyond being a mere nuisance. In areas of high concentration, reduced visibility can increase the risk of traffic accidents. Wind can carry away valuable topsoil, lowering crop yields. The health consequences for both workers and nearby residents can also be severe.
Most PM-10 particles in the environment stem from fugitive dust. Even when the dust is chemically inert, inhalation can lead to asthma and other respiratory issues. If the particles contain hazardous substances (such as rubber from tires, heavy metals from sandblasting, asbestos from demolition, or silica from mining), the risks increase significantly, with potential for permanent lung damage.
Thermo Scientific Solution
Effective fugitive dust monitoring requires instruments that deliver fast response times, dependable operation, easy deployment or relocation, and performance specifications that align with applicable guidelines or site permits.
To enable immediate corrective action when exposure limits are exceeded, light scattering devices (nephelometers) are often preferred for their ability to deliver real-time measurements. However, it's important to ensure the selected device also includes the additional capabilities typically required by regulatory standards.
Because dust concentrations can vary significantly depending on the task at hand, instruments should offer a wide measurement range to capture both low and high levels accurately.
Prolonged exposure to high concentrations can result in heavy dust buildup on filter-based nephelometers, which may impair particulate sizing components (e.g., cyclones or impactors) by restricting airflow.
Lastly, due to the often-changing nature of active work zones, it's important to choose monitoring equipment that sets up quickly and withstands typical environmental conditions such as heat, rain, and wind.

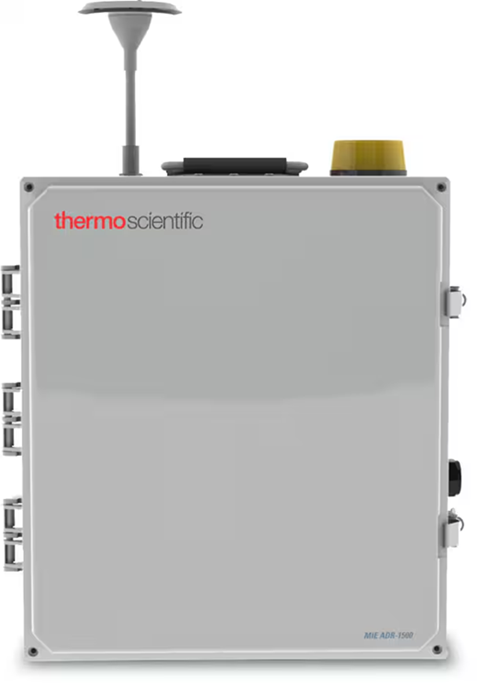

The Thermo Scientific™ ADR-1500 Area Dust Monitor is specifically engineered for these challenges. Housed in a weatherproof IP65-rated enclosure, it is a self-contained system ideal for fugitive dust applications. Lightweight and highly portable, it features a handle for easy transport and can be mounted on walls, posts, or industrial tripods.
The monitor operates on external AC or DC power, and an internal 12-volt lead-acid battery provides up to 100 hours of autonomous operation. Integrated sensors for pressure, flow, temperature, and humidity enable precise volumetric flow control—critical for maintaining cyclone cut-point accuracy throughout varying conditions.
To handle high particulate concentrations, the ADR-1500 includes a large HEPA filter that allows extended, unattended operation. Its wide measurement range is the broadest of any deployable particulate monitor on the market. An integrated heater ensures dust—not condensed moisture—is being measured, maintaining data integrity even in humid environments.
An optional filter cassette holder enables gravimetric sample collection for post-monitoring mass analysis, enhancing the correlation between nephelometric readings and true particulate mass. A bright beacon allows for fast identification of alarms, and the internal data logging provides sufficient memory for several months of monitoring results.
The Thermo Scientific™ pDR-1500 Personal Data Ram Aerosol Monitor offers exceptional utility and long operational life with commercially available batteries. It shares many key features with the ADR-1500 monitor, including volumetric flow control, a wide concentration range, and a 37mm filter for post-monitoring analysis.
The unit is also suitable for any NIOSH Method 0500 or 0600 monitoring applications. Its compact size allows workers to wear it comfortably, providing instantaneous feedback on exposure levels. This enables workers to quickly respond to elevated levels, moving to safer areas and taking action to mitigate risks.
For enhanced accuracy, the unique combination of a beta gauge and nephelometer in the Thermo Scientific™ 5030iQ SHARP Monitor delivers both the speed of light scattering and the precision of beta attenuation.
This installed monitor offers higher precision and accuracy for long-term operations. Its long-life filter tape automatically advances based on time or particulate loading, resulting in low maintenance.
Its Intelligent Moisture System gently heats the sample stream just above the dew point, ensuring consistent measurements in varying ambient conditions. The 5030iQ SHARP monitor is also U.S. EPA PM-2.5 Equivalent Certified, making it suitable for regulatory compliance monitoring.
For critical applications, deploying a 5030iQ SHARP monitor alongside multiple ADR-1500 units enables effective perimeter monitoring and accurate identification of heavy particulate sources.
The triangulated ADR-1500 units deliver detailed data on dust origin, including the location and timing of elevated readings, while the SHARP monitor provides the low-end sensitivity necessary to ensure compliance with applicable regulations—all at a reasonable cost.
Table 1. Summary of National Ambient Air Quality Standard Promulgated for Particulate Matter 1971-2006. Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
Final
rule |
Indicator |
Average time |
Level |
Form |
1971
(36 FR 8186) |
TSP—Total suspended Particulate
(≤25—45 μm) |
24 hour |
260 μg/m3 (primary) |
Not to be exceeded more than one year |
| 150 μg/m3 (secondary) |
| Annual |
150 μg/m3 (secondary) |
Annual average |
1987
(52 FR 24634) |
PM10 |
24 hour |
150 μg/m3 (primary) |
Not to be exceeded more than one year on an average over a 3-year period |
| Annual |
50 μg/m3 (secondary) |
Annual arithemtic mean, average over 3-years |
1997
(62 FR 38652) |
PM2.5 |
24 hour |
65 μg/m3 |
98th percentile, averaged over 3-years |
| Annual |
15 μg/m3 |
Annual arithemtic mean, average over 3-years |
| PM10 |
24 hour |
150 μg/m3 |
Initially promulgated 99th percentile averaged over 3-years; when 1997 standards were vacated, the form of 1987 standards remained in place (not to be exceeded more than once per year on average over a 3-year period) |
| Annual |
50 μg/m3 |
Annual arithemtic mean, average over 3-years |
2006
(71 FR 61144) |
PM2.5 |
24 hour |
35 μg/m3 (primary) |
98th percentile, averaged over 3-years |
| 15 μg/m3 (secondary) |
Annual arithemtic mean, average over 3-years |
| PM10 |
Annual |
150 μg/m3 (secondary) |
Not to be exceeded more than once per year on average over a 3-year period |
Conclusions
Fugitive dust presents ongoing risks to both human health and the environment due to the activities that produce it. While each site requires a customized approach, the ability to quickly detect dust concentrations and pinpoint potential sources is crucial for ensuring regulatory compliance.
Thermo Fisher Scientific provides a broad portfolio of monitoring solutions, backed by expert technical support, to help you effectively address these challenges.
Acknowledgements
Produced from material originally authored by Bob Gallagher from Thermo Fisher Scientific.
This information has been sourced, reviewed and adapted from materials provided by Thermo Fisher Scientific – Environmental and Process Monitoring Instruments.
