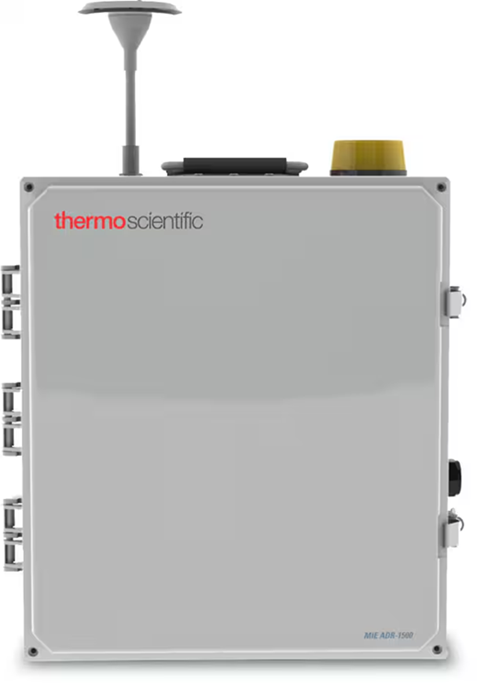

Users can easily carry and install the Thermo Scientific™ ADR1500 Area Dust Monitor for continuous monitoring.
Product Overview
The Thermo Scientific Model ADR1500 Dust Monitor uses the same very sensitive light-scattering photometer (nephelometer) technology as the pDR series. The intensity of light dispersed by airborne particles moving through the detecting chamber is related to their concentration. This optical setup responds well to particles, giving continuous measurements of airborne particle concentrations for total particulate and cut-points ranging from PM10 to PM1.
The ADR1500 has a temperature and relative humidity (RH) sensor, as well as an internal heater, to reduce the positive bias caused by high ambient RH. Furthermore, the flow control is volumetric, with digital feedback from the onboard barometric pressure sensor, temperature sensor, and calibrated differential pressure across a precise orifice. The ADR1500 incorporates the principles of real volumetric flow, which results in an exact sample volume and precise particle cut-point.
Key Features
- Long-lasting primary HEPA filter and modular optics for convenience of maintenance
- Durable, weatherproof IP65 enclosure
- Volumetric flow control
- Multiple power and communications capabilities
Additional Information
- The two-line LCD readout display shows the observed particulate matter concentration in real time
- Additional variables that could be presented include run start time and date, time-averaged concentrations, elapsed run time, and many more
- The ADR1500's adaptable power capabilities enable it to run on internal battery power, external DC (12-24 VDC), or AC (100-240 VAC)
- There are USB, RS-232, analog, and wireless communication options available
- The robust and small device is prepared for quick deployment and unsupervised use
- With mounting choices for wall, post, or tripod placements, a top-mounted handle makes transportation and installation simple
Recommended for
- Fugitive dust monitoring
- Perimeter monitoring
- Area monitoring
- Site remediation
- Alarm conditions
- Asthma studies
- Exposure monitoring
Specifications
Source: Thermo Fisher Scientific – Environmental and Process Monitoring Instruments
| . |
| Flow Rate |
1 to 3.5 L/min. |
Temperature (English)
Operating |
14 °F to 122 °F |
Temperature (Metric)
Operating |
10 °C to 50 °C |
| 2-sigma Values |
±0.5% of reading or ±0.0015 mg/m3, whichever is larger, for 10-second averaging time |
| Accuracy |
±5% of reading ±precision) traceable to SAE Fine test dust |
Aerodynamic Particle
Cut-Point Range |
1.0 to 10 μm, with optional cyclone accessories |
| Alarm Averaging Time |
Real-time (1 to 60 seconds) or STEL (15 minutes) |
| Alarms |
Load impedance >100 kw , Alarm ON = short to ground, Alarm OFF = open |
| Certifications/Compliance |
UKCA |
Concentration
Measurement Range |
0.001 to 400 mg/m3 (auto-ranging) |
Data Logging
Averaging Periods |
1 second to 1 hour |
| Depth (English) |
17 in. |
| Depth (Metric) |
215 mm |
| Description |
Area Dust Monitor |
| Frequency |
50/60 Hz |
| Height (English) |
21 in. |
| Height (Metric) |
431 mm |
| Optional Cyclones |
GK 2.05 (Red) primarily for PM4 through PM10, SCC 1.062 (blue) primarily for PM1 through PM4 |
| Particle Size Range |
0.1 to 10 µm |
| Precision |
±2%, for 1-second averaging time |
| Real-time Analog Signal |
0 to 2 V and 4 to 20 mA, with selectable full scale ranges between 0.1 and 400 mg/m3; 0-0.1, 0-0.4, 0-1.0, 0-4.0, 0-10, 0-40, 0-100 and 0-400, mg/m3 |
| Real-time Digital Signal |
Concentration, flow, temperature, relative humidity, barometric pressure, time, date |
| Repeatability |
±0.005 mg/m3, for 1-second averaging time |
| Resolution |
0.1 μg/m3 |
| RH correction |
±0.2% or reading or ±0.0005 mg/m3, whichever is larger, for 60-second averaging time |
| Run Summary |
Site number, average and max. concentrations, time/date of maximum, number of logged points, start time/date, elapsed time (run duration), averaging (logging) period, calibration factor and tag number |
Scattering Coefficient
Range |
1.1 x 10-6 to 0.6 m-1 (approximately) @ l = 880 nm |
| Serial Interface |
High speed, USB/RS-232 (reserved for wireless applications), 19,200 baud |
| Voltage |
100/240 VAC, 12/24 VDC for solar or auxiliary battery options |
| Weight (English) |
28.5 lb. |
| Weight (Metric) |
12.9 kg |
| Width (English) |
17 in. |
| Width (Metric) |
431 mm |
| Unit Size |
Each |
