The microspectrophotometer is part of a class of hyphenated analytical instruments that combine an optical microscope with a UV-visible-NIR spectrophotometer. Through this integration, the instrument can collect molecular absorbance, reflectance, and emission spectra from microscopic sample volumes or microscopic areas within larger specimens, covering the deep ultraviolet through the near-infrared.
Based on its setup, a microspectrophotometer can measure absorbance, reflectance, transmittance, and fluorescence or phosphorescence emission from regions down to a single square micron. Adding dedicated computational algorithms lets the same platform determine thin-film thickness through interference evaluation or operate as a microscope colorimeter.
Three key advantages justify the use of microspectrophotometry. First, spectra can be gathered from sample regions on the order of a single micron, which is substantially smaller than the sampling footprint of standard benchtop spectrophotometers.
Second, the method demands minimal sample mass, whether solid or liquid, and is often non-destructive or minimally invasive. Third, the intrinsically quantitative nature of spectrophotometric measurement offers a more objective and reproducible foundation for color and material comparison than visual assessment.
By utilizing a wide spectral range, correcting for illumination variance, and acquiring wavelength-resolved intensity data, the system minimizes the subjectivity intrinsic to human color perception.
Before the development of microspectroscopic instrumentation, characterization of microscopic specimens depended on microchemical assays followed by visual or microscopic inspection.
These techniques are usually consumptive, require comparatively large sample quantities, and are restricted by the acuity and consistency of the human observer. UV-visible-NIR microspectroscopy overcomes these limitations by offering greater speed, extending detection past the limits of human vision, and generating quantitative, linearly comparable data instead of qualitative color impressions.
Instrumentation

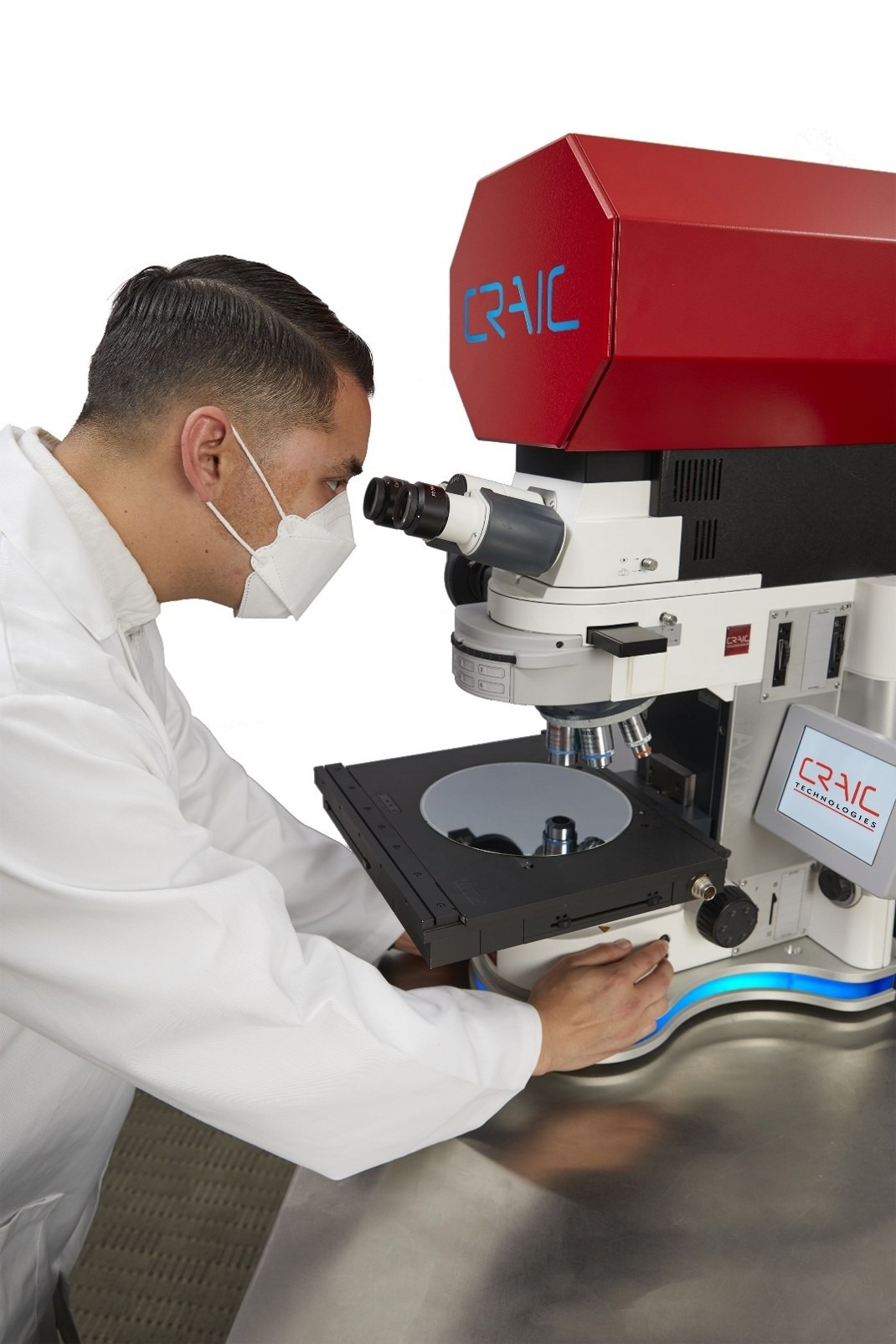

Figure 1. A microscope is integrated with a spectrophotometer so that UV-Visible-NIR range spectra can be taken from microscopic samples. Image Credit: CRAIC Technologies
A microspectrophotometer incorporates an optical microscope, an image-forming subsystem to locate and define the sampling area, and a spectrophotometer for wavelength-resolved detection (Figure 1).
The microscope section magnifies sub-millimeter features for visual and optical evaluation, whereas the spectrophotometer quantifies electromagnetic radiation intensity as a function of wavelength across the ultraviolet, visible, and near-infrared regions. Combining these tools enables collection of absorbance, reflectance, and emission spectra from micron-scale sampling regions.
Purpose-built optical components are essential to achieve broadband performance while maintaining both spectral quality and imaging fidelity. Traditional optical microscopes are restricted to a portion of the visible spectrum, a limitation imposed by the optical materials and illumination sources used in their design.
For this reason, instruments engineered for UV-visible-NIR microspectroscopy incorporate custom reflective or specially coated refractive optics and broadband illumination sources optimized for transmission from the deep UV through the NIR.
The spectrophotometer subsystem must likewise be designed for microscale measurement. A broad dynamic range is crucial, as operators regularly alternate between transmission or reflectance measurements and fluorescence measurements at the same sample locations to obtain complementary spectral data. This requires elevated detector sensitivity while preserving spectral resolution.
Since microspectrophotometers are single-beam instruments, reference (baseline) spectra must be collected before sample measurement, making optical and thermal stability key performance parameters.

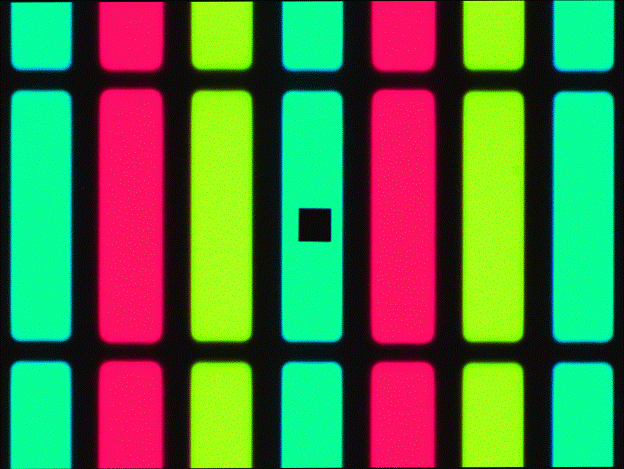

Figure 2. When imaging a sample with a microspectrophotometer, the black square in the center of the image is the spectrophotometer's entrance aperture. The user simply moves the sample stage so the black square is superimposed over the area to be measured. Image Credit: CRAIC Technologies
Coupling the spectrophotometer to the microscope poses the most significant engineering hurdle. The interface must direct the UV-Visible-NIR electromagnetic energy gathered by the microscope objective into the spectrophotometer, all while enabling the user to visualize the measurement area alongside the surrounding field of view.
This is accomplished by placing the spectrophotometer's entrance aperture at the same focal plane as the sample image; the sample stage is then translated until the target area falls within the projected aperture (see Figure 2, where the dark square indicates the aperture boundary). Simultaneous imaging of both the sample and the aperture facilitates instantaneous alignment, enabling quick and reproducible positioning of the measurement region.

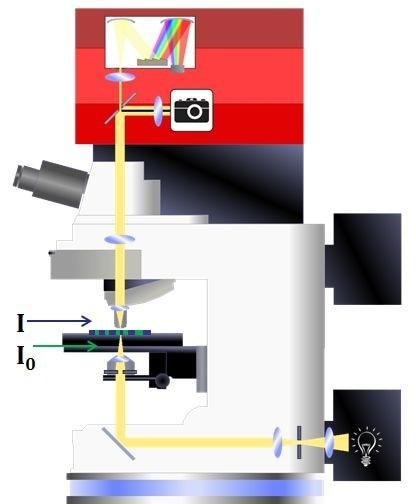

Figure 3. Schematic showing the optical path for a microspectrophotometer configured for absorbance microspectroscopy. Image Credit: CRAIC Technologies
As depicted in Figure 3, the microscope objective focuses incident radiation onto the sample. Photons interacting with the sample produce transmitted, reflected, or emitted radiation, which the same or a complementary objective gathers and focuses onto the spectrophotometer's entrance aperture.
A digital camera images most of the field for navigation and aperture alignment, while radiation passing through the aperture is directed into the spectrophotometer for spectral acquisition.
The choice of illumination geometry depends on the measurement objective. Incident (epi-illumination) white light enables reflectance microspectroscopy from the deep-UV to near-IR range and can also be configured for fluorescence or photoluminescence excitation. Transmission microspectroscopy is achieved by directing white light through the sample using the microscope condenser.
Applications of Microspectroscopy
Since the initial development of microspectrophotometers in the 1940s, their utility has broadened significantly. Today, academic, industrial, and forensic labs employ this method for quality control, failure analysis, and fundamental research. The following sections review established application areas along with several more recently developed uses.
Forensic Science
Beginning in the early 1980s, microspectrophotometry has been essential to trace evidence analysis, particularly for paint chips and textile fibers. Because this evidence is generally microscopic and must be preserved for further testing or courtroom presentation, non-destructive evaluation is critical.
Fiber analysis depends on UV-visible-NIR absorbance and fluorescence spectra obtained from individual filaments; paint evidence is typically cross-sectioned, and the absorbance spectrum of each layer is measured to enable high-discrimination comparison between known and questioned samples.
Questioned-document examination is another forensic application, in which inks and substrates undergo characterization via reflectance microspectroscopy–since most papers are too opaque for transmission measurement–supplemented by fluorescence spectroscopy. Microspectroscopy is particularly valuable in this context because it can resolve micro-printing, security features, and individual pen strokes.
Thin-Film Metrology
In the semiconductor and flat-panel display sectors, microspectrophotometers are used to measure the thickness of thin films deposited throughout integrated-circuit manufacturing.
Depending on the substrate's transparency, either a reflectance or a transmission spectrum is obtained from a small sampling region. Dedicated software then analyzes the resulting interference pattern–analogous to the color fringes observed in an oil film on water–to determine film thickness.
This capability has since extended beyond semiconductor quality control to the development and production of flat-panel displays, optical coatings, and other layered devices.
Energy and Geosciences
In petroleum and coal geochemistry, microspectrophotometers are employed to evaluate source rock thermal maturity, and by extension its energy content, by quantifying the reflectance of vitrinite and other macerals in polished sample sections. Reflectance values are correlated with established maturation scales to characterize hydrocarbon generation potential.
Materials Science
Microspectrophotometers support a wide variety of materials characterization, as a single instrument can measure transmission, reflectance, and emission spectra from the same sample area.
Notable applications include the optical characterization of gold and silver nanoparticles, where measuring surface plasmon resonance impacts is critical for evaluating size- and shape-dependent optical characteristics.
These devices are also used to characterize thin-film materials–polymeric or otherwise, such as diamond-like carbon films–to determine thickness and to analyze electronic structure using absorbance and reflectance spectroscopy.
Biotechnology and Life Sciences
In biological research, microspectrophotometers support both the development and quality control of microfluidic devices thanks to their versatility in probing arbitrarily small measurement points across a device. In vision science, the method tracks photochemical changes in ocular tissue by comparing the spectral response before and after light exposure.
Other applications include characterizing structural coloration in biological materials, including the optical characteristics of individual feather barbules and the pigment and photonic-structure mapping of butterfly wing scales, research that has advanced both biological knowledge and fundamental optics.
Emerging and Additional Applications
Beyond these established domains, several newer application areas have implemented UV-visible-NIR microspectroscopy as instrumentation and computational tools have advanced.
Pharmaceutical Solid-State Characterization
Microspectrophotometry is finding increasing use for distinguishing polymorphic forms, assessing crystallinity, and mapping the spatial distribution of active pharmaceutical ingredients within microparticles or tablets, thereby supporting formulation development and dissolution behavior research.
Cultural Heritage and Art Conservation
Non-destructive reflectance and fluorescence microspectroscopy is utilized on varnishes, dyes, and pigments in manuscripts, textiles, and paintings, enabling identification of historical materials, detection of restoration or overpainting, and authentication research without sampling the object.
Two-Dimensional and Quantum Materials
Exfoliated or grown 2D materials, including graphene and transition-metal dichalcogenides, are characterized using micro-reflectance and micro-transmission spectroscopy, in which optical contrast and interference-based techniques enable rapid estimation of layer number and identification of localized strain or defects. In addition, microspectrophotometers can obtain circular dichroism spectra for further material characterization.
Gemology
Microspectrophotometers aid in differentiating natural gemstones from synthetic or treated ones by resolving diagnostic absorption characteristics associated with trace-element chromophores, frequently from regions too small for standard bench spectrophotometry.
Battery and Energy-Storage Materials
Microscale reflectance and absorbance measurements facilitate the study of thin coatings and electrode materials used in battery research, including in situ tracking of optical changes associated with degradation or phase transitions.
Single-Cell and Live-Cell Spectroscopy
Developments in low-light detection have allowed microspectrophotometry to perform single-cell measurements, including label-free monitoring of intracellular chromophores and time-resolved spectral changes during cellular processes.

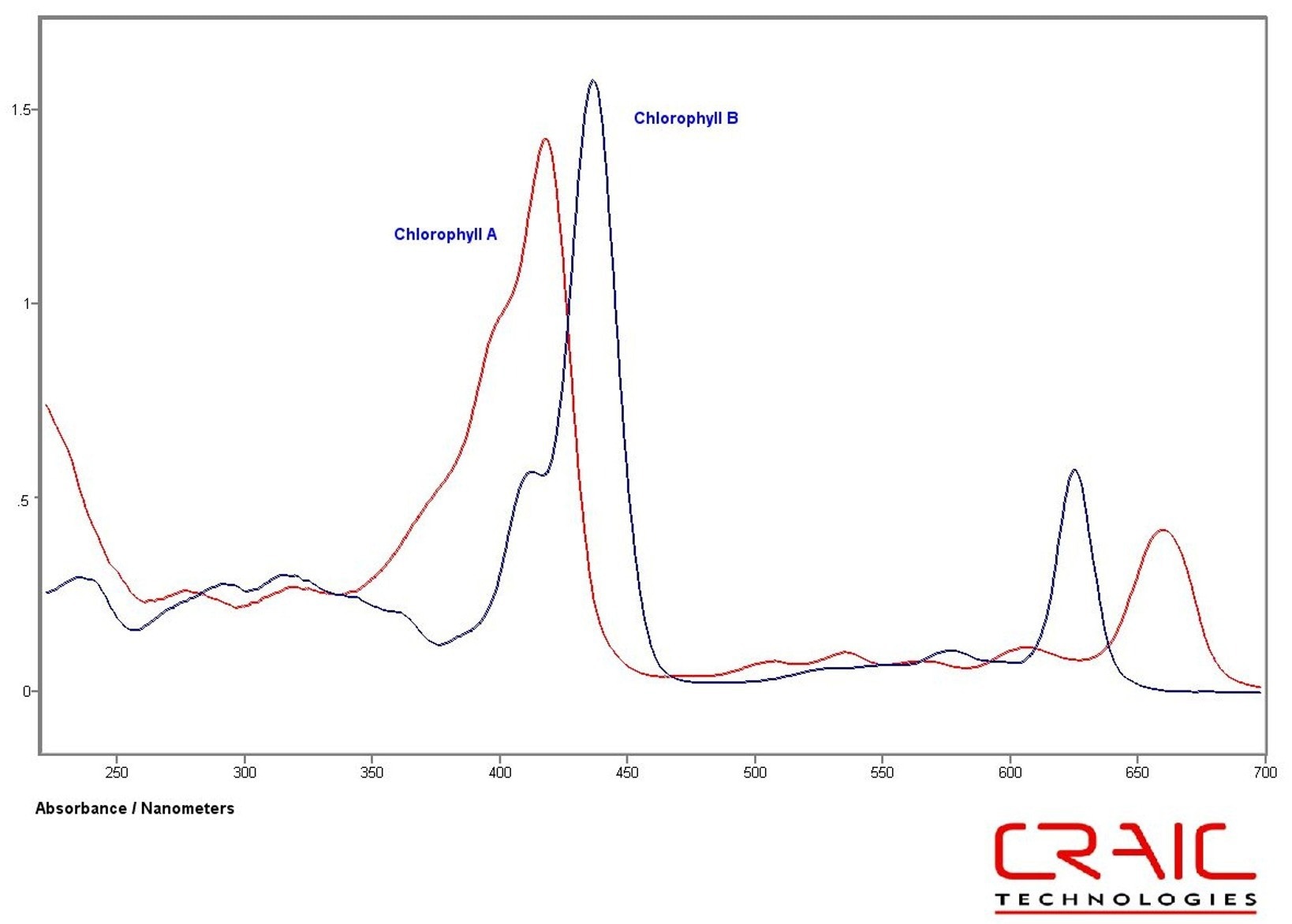

Figure 4. UV-Visible absorbance spectra of chlorophyll. Image Credit: CRAIC Technologies
Conclusion
By combining the spatial resolution of optical microscopy with the quantitative rigor of UV-visible-NIR spectrophotometry, the microspectrophotometer enables absorbance, reflectance, and emission measurements from microscopic sample areas.
This hybrid capability has established the method across forensic science, semiconductor and optical thin-film metrology, energy geochemistry, materials science, and biotechnology. Meanwhile, ongoing advancements in instrumentation continue to unlock novel application areas, from pharmaceutical and cultural heritage analysis to 2D materials and single-cell biology.
As a flexible, largely non-destructive analytical platform, the UV-visible-NIR microspectrophotometer remains an essential instrument for extending spectroscopic evaluation into the micro-world.
