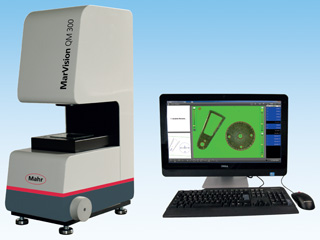

MarVision Video Workshop Measuring Microscope QM 300 with M3 Software from Mahr

Mahr’s MarVision video workshop measuring microscope QM 300 with M3 software is a tool that is capable of measuring and/or determining geometric elements such as lines, points, distances, intersection and circles through automatic edge detection. It can be used on punched and flexible parts, plastic parts and electronic circuit boards.

Key Features

The main features of the microscope QM 300 include:

  • Telecentric fixed lens
  • LED transmitted light
  • LED ring light: dimmable
  • Depth of focus ca. 10mm
  • Height adjustable measuring table
  • DXF function to compare measurements with CAD drawings
