Standard Vacuum Mixer with Touch Panel

Thinky Mixer is a planetary centrifugal mixer with the ability to perform mixing as well as defoaming of materials, at the same time. The mixer supports an extensive range of applications from material development to production.

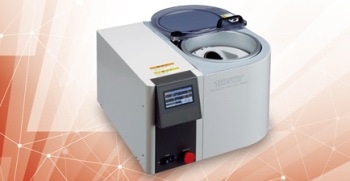

The ARV-310P mixer from THINKY Corporation is a newly launched vacuum mixer provided with vacuum decompression function, apart from the rotation and revolution mixing system. During operation, overflow is prevented, and submicron-level defoaming can be performed within a short period.

The device is supplemented with the communication function (RS-232C connection), thus allowing the use of an external terminal to perform recipe selection, recipe readout, and operation. Moreover, data such as this can be recorded each second, in terms of the number of rotations, thus enabling better traceability in the production process.

Main Features of Thinky Mixer ARV-310P

  • Mixing, dispersion, and removal of foam at the submicron level is performed at the same time; the device has the ability to deal with low- to high-viscosity materials
  • The vacuum decompression function and the rotation and revolution method allow high-precision defoaming within a short period, without spilling at the time of operation
  • Touch panel provides real-time display of operation status and progress
  • Up to 20 recipes can be registered through the touch operation
  • The communication function (RS-232C connection) ensures better traceability by performing operation and data acquisition through an external terminal

Touch Panel Function

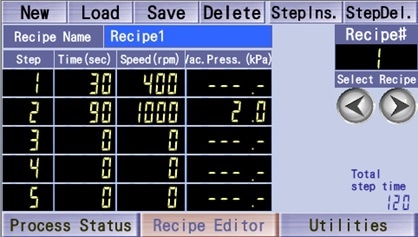

Recipe Registration Screen

The touch panel optimizes visibility and operability. Up to 20 recipes can be set and registered by using their original names.

*Recipe setting information of the device, such as the number of rotations and operation time

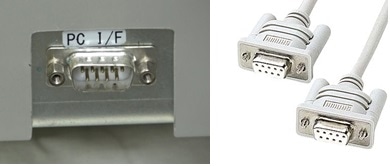

Communication Function (Traceability)

Output Data

  • Start of operation
  • Remaining operation time
  • Vacuum pressure
  • End of operation
  • Execution step
  • Alarm number
  • Executing recipe No.
  • Operating rotation speed


*Connect one Thinky Mixer to one serial port

Main Product Specifications

Method Vacuum type, rotation and revolution mixing without use of propellers
Revolution speed Maximum 2000 rpm (range between 0 rpm and 200 to 2000 rpm, can be set in 10 rpm units)
Rotation speed Maximum 1000 rpm (follow at 1/2 of the revolution speed)
Number of memories 20 (five steps can be registered for each)
Maximum and minimum throughput At atmospheric pressure When using a 300 ml container: 250 ml/310 g When using a 150 ml container: 120 ml/310 g
In the vacuum mode When using a 300 ml container: 200 ml/310 g When using a 150 ml container: 100 ml/310 g
Main body dimensions 450 mm (H) × 555 mm (W) x 645 mm (D)
Body weight About 90 kg
Switch / display unit Touch panel (4.3 inches)
Communication function (RS232C) Data collection function (traceability function) Operation start and stop/recipe editing and saving from the terminal

*Please contact the company for product specification details
