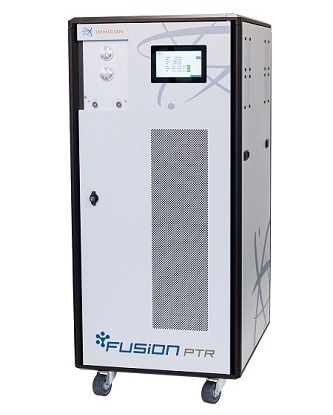

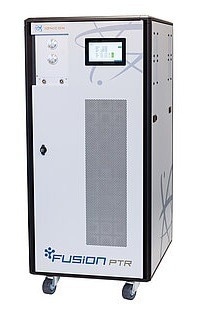

Creating the standard for the future of PTR-TOF instruments, the new FUSION PTR-TOF 10k integrates all benefits that only authentic IONICON PTR technology could provide:

  • Ultra-clean FUSION reaction chamber
  • Fast-SRI ion source for almost immediate reagent ion switching
  • Market-leading detection limits <200 ppqv
  • TRU-E/N certified ion-chemistry quality

Download the Brochure for More Information

At a Glance

The FUSION PTR-TOF 10k provides an exceptional combination of sensitivities of a maximum of 80,000 cps/ppbv, LoDs down to less than 200 ppqv, and quick reagent ion switching in approximately one second. The FUSION PTR technology is best integrated with ioniTOF 10k, providing a mass resolution of usually 10,000–15,000 m/Δm.

Intro to FUSION PTR: the Next-Gen PTR-TOF

Video Credit: Ionicon Analytik


  • Sensitivity: up to 80,000 cps/ppbv
  • Mass resolution: >10,000
  • Detection limit: <0.2 pptv

Technical Specifications

Source: Ionicon Analytik

. .
Mass resolution > 10,000 m/Δm (FWHM) certified for m/z > 121
up to 15,000 m/Δm (FWHM) achievable for selected m/z
Sensitivity > 40000 cps/ppbv certified at m/z 121 (trimethylbenzene) at 10000 m/Δm
up to 80,000 cps/ppbv achievable for selected compounds
Detection limits at m/z 121 (trimethylbenzene): < 200 ppqv averaged over 60s, < 1 pptv averaged over 1 s
Ion Source New fast-SRI ion source for switching between H3O+, NH4+, NO+ or O2+
PTR reactor Ultra-clean, gastight FUSION reaction chamber
Weight < 190 kg
Dimensions (w x h x d) 60x135x80 cm
Power supply 115/230 V, standby/typical operation: < 1500 W

*Specifications are subject to change without prior notice.


Download the Brochure for More Information
