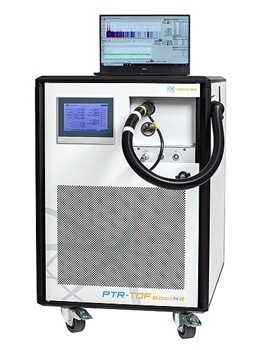

PTR-TOF 6000 - Trace VOC Analyzer - PTR-TOFMS

The PTR-TOF 6000 analyzes trace VOCs using high-performance PTR-TOF-MS (proton transfer reaction-time of flight mass spectrometry).

  • Sensitivity: >2000 cps/ppbv
  • Detection limit: <1 pptv
  • Mass Resolution: >6000


The PTR-TOF 6000 combines a high-resolution ioniTOF with IONICON’s exclusive PTR technology and TRU-E/N™, delivering a powerful PTR-TOFMS experience.

The X2 technology on this instrument integrates the latest generation of the ION-BOOSTER funnel and the hexapole ION-GUIDE. The ion funnel concentrates ions into the hexapole ion guide, enabling nearly lossless transmission of a highly focused ion beam into the TOF mass spectrometer. This enhancement increases sensitivity and improves the instrument’s mass-resolving power.

The patented IONICON ion-chemistry quality guarantees precise E/N conditions, consistently reproducible measurement results, and the utmost accuracy in quantification.

Download the Brochure for More Information

Technical Specifications

Source: IONICON Analytik

. .
Mass resolution > 6000 m/Δm (FWHM) for m/z > 147
Response time < 100 ms
Sensitivity > 2000 cps/ppbv for m/z 181
Detection limits for m/z 181 < 10 pptv (in 1 sec)
< 1 pptv (in 60 sec)
Linearity range 1 pptv - 100 ppbv
Adjustable flow 50 - 800 sccm
Inlet system heating range 40 - 180 °C
(2nd inlet system and other inlet options on request)
Reaction chamber heating range 40 - 120 °C
Weight < 145 kg (319,7 lbs)
Dimensions (w x h x d) 60x91x87 cm (23.7 x 35.9 x 34.3 in.)
Power supply 115/230 V, standby/typical operation: < 400/600-900 W
Interfaces - Touchscreen display
8x DI/O, 2x AI, 2x AO
Selected optional features & Accessories
  • SRI/SRI+ options
  • SRI-MS technology
  • Multiplexing units

Find more options, application-specific inlet systems, and accessories here


Accessories and Inlet Systems

  • SRI/SRI+
    • H3O+, NO+ and NH4+, O2+ / Kr+, Xe+ precursor ions
  • Extended Volatility Range (EVR)
    • Ultra-Fast Time Response Even for IVOCs & SVOCs
    • Real-Time Aerosol Inlet for IONICON PTR-TOFMS
  • Buffered End-Tidal Breath Sampling Inlet (BET)
    • Inlet System for Buffered End-Tidal (BET) Breath Analysis
  • Multiplexing
    • Multiple Inlet Systems for Analytical Instruments
  • Liquid Calibration Unit (LCU)
    • Trace gas calibration using liquid standards
  • N.A.S.E. (Nosespace Air Sampling Extension)
    • A heated inlet system for nosespace air samples
  • Autosampler for PTR-MS
    • Autosampler for automated head-space analysis with PTR-MS

Find more options and accessories here


  • SRI-MS
    • Benefits of Selective Reagent Ionization - Mass Spectrometry
  • IONICON PTR-TOFMS Performance
    • Excellence in mass resolution, sensitivity, and detection limits
  • PTR-MS
    • Benefits of Proton Transfer Reaction - Mass Spectrometry
  • X2 Performance Technology
    • ION-BOOSTER funnel combined with a Hexapole ION-GUIDE

Learn more on IONICON technologies here
