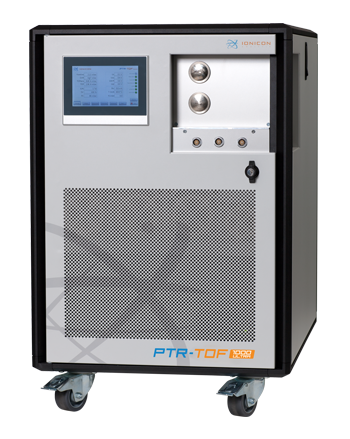

Compact Ultra-Sensitive VOC Analyzer: PTR-TOF 1000 Ultra

Compact and extremely sensitive, the PTR-TOF 1000 Ultra is a VOC analyzer.

  • Sensitivity: > 2000 cps/ppbv
  • Resolution: > 1500
  • LoD: < 5 pptv


Compared to the PTR-TOF 1000, there is 10× more sensitivity because of the innovative ION-BOOSTER funnel technology.

The new industry standard for a reliable and portable real-time volatile organic compound (VOC) analyzer is the PTR-TOF 1000 ultra. Built on the popular PTR-TOF 1000 platform, it provides all the advantages of a PTR-TOFMS instrument that is small, light, and reasonably priced, along with exceptional sensitivity.

With the PTR-TOF 1000 ultra, users can explore the world of time-of-flight-based PTR-MS instruments.

Download the Brochure for More Information

Technical Specifications

Source: IONICON Analytik

. .
Mass resolution > 1500 m/Δm (FWHM) for m/z > 79
Response time < 100 ms
Sensitivity > 2000 cps/ppbv for m/z 181
Detection limits for m/z 181 < 5 pptv (averaged over 1 minute)
Linearity range 5 pptv - 100 ppbv
Adjustable flow 50 - 800sccm
Inlet system heating range 40 - 180 °C
(2nd inlet system and other inlet options on request)
Reaction chamber heating range 40 - 120 °C
Weight < 130 kg
Dimensions (w x h x d) 60x91x80 cm (23.7 x 35.9 x 31.5 in.)
Power supply 115/230 V, standby/typical operation: < 400/550-850 W
Interfaces - Touchscreen display
8x DI/O, 2x AI, 2x AO


Accessories and Inlet Systems

  • SRI/SRI+
    • H3O+, NO+ and NH4+, O2+/Kr+, Xe+ precursor ions
  • Extended Volatility Range (EVR)
    • Ultra-Fast Time Response Even for IVOCs and SVOCs
  • Permeation Source for Calibration (PerMaSCal)
    • Accurate TOF mass-scale calibration with PerMaSCal
  • FastGC
    • A FastGC Module for PTR-TOF

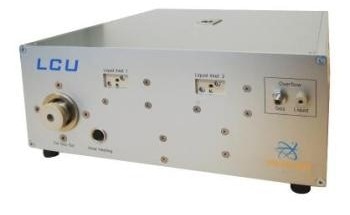

  • Liquid Calibration Unit (LCU)
    • Trace gas calibration using liquid standards
  • Multiplexing
    • Multiple Inlet Systems for Analytical Instruments
  • Buffered End-Tidal Breath Sampling Inlet (BET)
    • Inlet System for Buffered End-Tidal (BET) Breath Analysis
  • Autosampler for PTR-MS
    • Autosampler for automated head-space analysis with PTR-MS.
  • N.A.S.E. (Nosespace Air Sampling Extension)
    • A heated inlet system for nosespace air samples

Learn more about available accessories and options here.


  • SRI-MS
    • Benefits of Selective Reagent Ionization - Mass Spectrometry
  • PTR-MS
    • Benefits of Proton Transfer Reaction - Mass Spectrometry
  • IONICON PTR-TOFMS Performance
    • Excellence in mass resolution, sensitivity, and detection limits
  • Essentials of IONICON PTR-MS
    • Ion Chemistry Quality TRU-E/N Label qualified

Learn more about IONICON technologies here.
