Accurate And Fast Analysis And Measurement Of Shaft Sealing Surfaces

Integrating MountainsMap® analysis software from Digital Surf, the new Portal System from Confovis measures and analyzes shaft sealing surfaces fast and with very high accuracy in accordance with the Daimler automotive industry standard MBN 31 007-07.

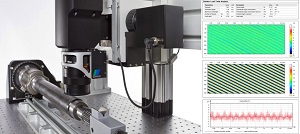

The Confovis Portal System with rotation unit measures shaft sealing surface fast and precisely. Integrated MountainsMap software from Digital Surf generates a lead twist analysis report in accordance with the Daimler MBN 31 007-07 standard automatically.

The surface texture of lead structures imprinted on shaft sealing surfaces influences the flow characteristics of fluid in the contact zone between sealing surfaces and lip seals. It has a major impact on seal efficiency and leak-tightness. Lead structures consist of continuous or interrupted threads at an angle of zero or a few arc minutes to the circumference of the axisymmetric sealing surface or, in the case of structures with a higher number of threads, at even larger angles. In addition lower frequency macro lead structures and higher frequency micro lead structures are distinguished. In accordance with the Daimler standard lead structures are measured by obtaining 72 scan lines with a length of 2 mm using a rotation unit. The measurement data is analyzed in accordance with Daimler’s second generation lead analysis algorithm.

The Confovis Portal System scans a complete surface area instead of single spots point-by-point. In this way it provides a very high scanning speed and reduces processing time for this application significantly. The Portal System integrates high-quality microscope components from Nikon. With a 2.15 mm x 1.4 mm field of view the Nikon objective lens makes it possible to obtain each 2 mm scan line in one single measurement step. Complex “stitching” is no longer necessary. High resolution measurement down to a nanometer is achieved using a Z-positioning piezo actuator.

Once the measurement data has been obtained, MountainsMap® automatically generates an analysis report in accordance with Daimler MBN 31 007-07, by running the second generation lead twist analysis algorithm under license from Mercedes-Benz.

“The Confovis Portal System with MountainsMap® speeds up lead twist analysis by measuring lead structures in five minutes with demonstrated 99% correlation with results obtained by tactile system and then generating the analysis report automatically,” stated Frank Thielert, CEO of Confovis. “Automotive component manufacturers using the system get reliable results quickly and cost-efficiently.”

“Thanks to the licensing agreement with Mercedes-Benz, MountainsMap® is able to provide a lead twist analysis report in accordance with the MBN 31 007-07 standard automatically,” stated François Blateyron, COO of Digital Surf.
