Optical Inspection

Featured Equipment
The 78877 Oriel LineSpec™ CCD Array Spectrometer makes use of a 2048 pixel CCD detector and includes a MS125™ Spectrograph, customer’s choice of grating, choice of entrance slit with input slit holder, a 2048 CCD detector with mounting flange, and LineSpec™ Software.
Malvern offers a modular multi-angle light scattering detector called Viscotek SEC-MALS 20. The system can be utilized to calculate the absolute molecular weight of synthetic and natural polymers, proteins, as well as the molecular size over the broadest possible range.
Semilab offers a unique modular optical platform, the SE-2000, which includes a spectroscopic ellipsometer with rotating compensator optics.
IF-Robot, the sophisticated robot-assisted 3D measurement instrument from Alicona features a 6-axis robot and the rugged InfiniteFocus measurement sensor. The measurement sensor is appropriate to all industrial robots.
The MS257 is a fully automated, highly efficient 1/4m instrument, versatile enough to satisfy most spectroscopy applications.
Optometrics Corp. has manufactured over 20,000 Mini-Chrom monochromators since their initial introduction in 1978. The majority have been incorporated into a variety of analytical and biomedical instruments made and marketed by leaders in their respective fields.
Other Equipment
For over 40-years, the Model D polarimeter and sodium lamp outfit has been the primary choice of leading industrial and academic institutions throughout the world, offering practical assessment of optically active materials combined with high accuracy measurement.
EP5, EP12 and EP20 tools from Semilab are based on Ellipsometric porosimetry (EP) having various degree of automation and wafer size capabilities. EP measures the change of the optical properties and thickness of the materials during adsorption and desorption of either an organic solvent or water at reduced pressure.
The New AA-55 series polarimeters are low cost, versatile, fully automatic instruments for measuring numerous types of samples from sugars to pharmaceuticals.
Princeton Instruments is pleased to offer GigE Vision data interface for the entire line of MEGAPLUS® cameras. These high-resolution Princeton Instruments cameras, whose resolution ranges from 1.6 to 16 megapixels, are used in some of the most demanding vision applications around the world. The GigE Vision interface enhances the versatility of MEGAPLUS cameras, which also feature Camera Link and FireWire (IEEE 1394a) interfaces.
The SE 500adv can be operated as a laser ellipsometer, film thickness probe FTPadv or as a Combined Ellipsometry and Reflectometry (CER) ellipsometer. As a result, it offers maximum flexibility never reached by standard laser ellipsometers.

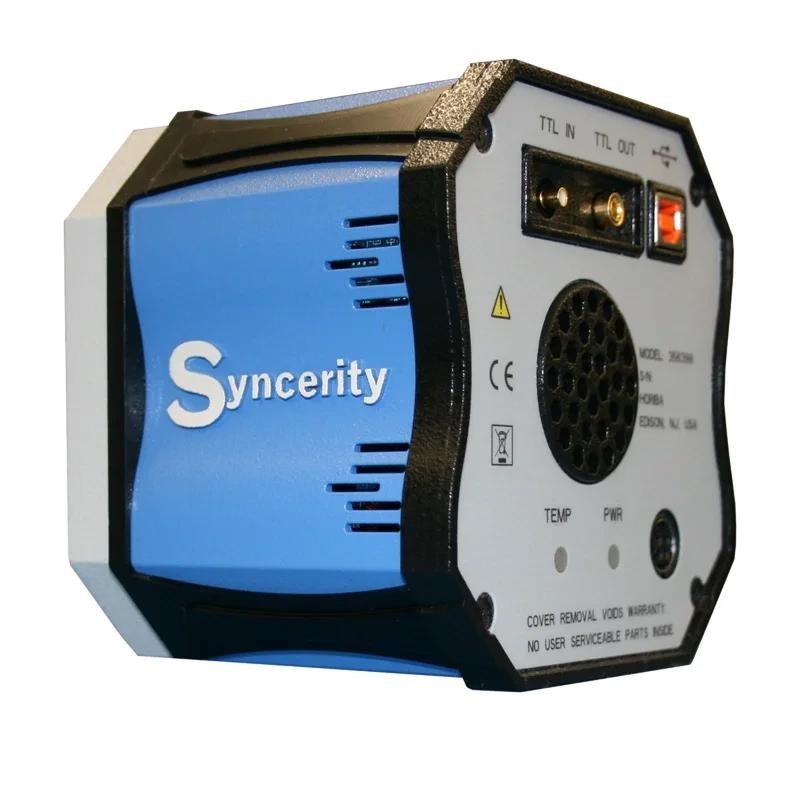

HORIBA Scientific has released an advanced Syncerity deep cooled Open-Electrode 1024 x 256 CCD Camera which has been specifically designed for OEM and research applications.
The Go!SCAN 3D™ series provides users with simple, portable 3D scanning tools which can measure in a fast and consistent manner. With these handheld 3D scanners, 3D data can be captured in full color.
Creaform’s MetraSCAN 3D optical CMM scanning systems provide precise scanning and probing solutions.
The PT-5 panel tester Gen5 is designed to measure properties of thin film solar cells that meet the GEN-5 standard. It incorporates an ellipsometer, a non-contact resistivity mapper and a haze meter.
The Evolve 512 "Intelligent" EMCCD camera is the first scientific imaging solution that is capable of reading out pixel data in photoelectrons resulting in repeatable and accurate data.
Lumenera’s Lw1570 OEM digital camera is designed for use in a wide variety of scientific and industrial applications where higher resolution is routinely required.
The advanced high-performance, fully integrated, 4-port readout, thermoelectrically cooled Quad-RO: 4096 camera with electronically balanced quadrants, dual speed readout, on board memory to guarantee images w/o losses, capability to read images at 4-port or single port and industry standard firewire (IEEE 1394a) interface is designed for indirect imaging of X-rays or other Lambertian sources.

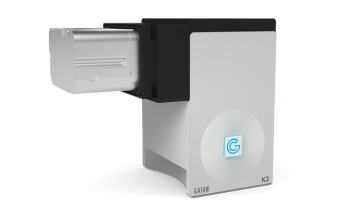

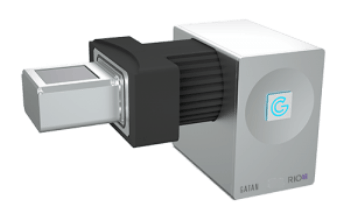

Gatan’s OneView camera allows the use of a single camera to capture high quality 16 megapixel still video and images for transmission electron microscopy (TEM) applications.
The SENresearch broadband spectroscopic ellipsometer family is designed to meet the requirements of modern research with special emphasis on speed and accuracy for an unmatched variety of applications.
The Evolve 128 offers extremely high frame rates with high sensitivity for challenging low-light applications ranging from single molecule fluorescence to in vivo imaging.
SensoPRO LT from Sensofar is software that, when combined with their S neox and S mart optical profilers, assists in carrying out rapid and simple quality control in a production line.
The brinell optical scanning system, BOSS enhances the quality control with sophisticated data acquisition and analysis capabilities and determines the brinell impressions faster, more accurately and consistently than ever.
Allied Vision’s Prosilica GT camera series comprises CCD and CMOS sensors with resolutions of up to 29MP and robust thermal housings.
The revolutionary CCI MP-HS non-contact optical profiler ensures that one receives guaranteed results whatever the component and however quickly it needs to be analyzed.
Andor’s Newton CCD and EMCCD spectroscopy detectors have been designed specifically for fast and low-light spectroscopic applications.
Raptor Photonics offers the KI247-CL digital KITE EMCCD camera that has excellent resolution, speed and sensitivity.
Contour Elite™ 3D optical microscopes from Bruker are designed with the ContourGT® platform’s industry-leading metrology and Vision64® analysis software, which is capable of high-fidelity imaging.

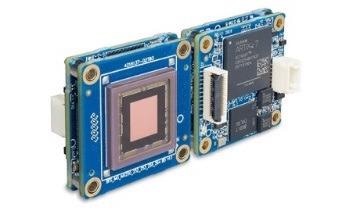

Lumenera’s Lu160 series of board level megapixel cameras is designed to be used in a wide variety of industrial and scientific OEM applications, particularly in low-light conditions and where high dynamic range is required.
HORIBA’s EFiS UV EMCCD is a scientific frame transfer EMCCD camera. The 1004x1002 sensor size helps to facilitate the most advantageous data resolution. Additionally, the frame transfer technology eliminates the need for shuttering of the incident light.
Alicona offers an advanced optical 3D micro coordinate system, InfiniteFocus, which is specifically designed for measuring form and roughness across large measurement areas and volumes.
The QuantEM:512SC from Photometrics is the only scientific camera that provides electron-multiplying (EM) gain with true quantitative stability across 16 bits at 10, 5, and 1.25-MHz operation speeds.
The QImaging MicroPublisher with real-time-viewing capability offers excellent productivity and interactivity.
Allied Vision’s Mako is a type of GigE vision camera constructed with a compact and tough industrial housing.
The Specialised Imaging Duplex Ultra Fast Framing Camera, using high resolution image intensifiers and no-compromise optical design, provides high quality ultra fast framing images. It offers the ultimate in ultra-high-speed imaging performance to scientists and engineers across all disciplines.
The Optilab® T-rEX™ (refractometometer with EXtended range) from Wyatt Technology is designed for use with HPLC, FPLC, FFF or GPC separation units along with a Wyatt multi-angle light scattering (MALS) detector such as the DAWN® HELEOS® II or miniDAWN™ TREOS®, for the absolute determination of the molar mass of all kinds of macromolecules in solution.
The S neox from Sensofar has been designed for non-contact optical 3D profiling. It uses a high-resolution CCD sensor of up to 1360 x 1024 pixels, along with high-resolution displays of 2560 x 1440.
The Micron Tablet-1 is a comprehensive, all-in-one camera and display unit. It features an innovative 2MP camera which is capable of auto balancing the exposure and white balance.
Hamamatsu offers C9300-124, a 4k×2.6k high-resolution digital camera that uses a sophisticated interline transfer CCD chip with on chip micro-lens.
SAM 400 QUAD is a high performance tool enabling non destructive acoustic investigations for high throughput analysis, quality control and research applications. It features a new high speed linear motion scanner and new rf and transducer technologies of up to 400 MHz, controlled through a user friendly graphical interface.
The ADP440+ is a single wavelength, high precision polarimeter that can be used in a range of applications and is particularly suitable for use in pharmaceutical laboratories where compliance with Pharmacopoeia is needed.
Hamamatsu offers an advanced digital camera called C9300-201 that comes with improved speed and includes low noise properties of the traditional digital CCD camera.
The Alpha SE™ is the newest addition to the JA Woollam line of ellipsometers. This new ellipsometer is designed to make SE measurements as fast and simple as possible. The Alpha-SE™ will measure both thickness and index with the use of the Alpha-SE software. With the compact, fully integrated design and USB connection make the ultimate table top tool.
UNECS-3000A is an advanced, ultra-fast spectroscopic ellipsometer that uses snap shot measurement technique with automated mapping to measure optical and thickness parameters of thin films.
Alicona offers IF-Profiler, a portable 3D measurement system specifically designed for measuring surface roughness and form. The system allows traceable and intuitive measurement of various positions and measurement fields. Results are obtained within a matter of seconds.
The Electro-Optics Group specializes in designing and producing advanced electro- optical assemblies and products that are utilized in a number of markets, such as defense, industrial, life sciences and semiconductor industries.
The QImaging Retiga™ 4000R digital camera features improved well capacity and resolution resulting in increased sensitivity that is ideal for LCD inspection, bright field and automated imaging applications.
Creaform’s HandyPROBE arm-free probing system is designed to provide highly accurate measurements of up to 22µm. The system provides the user with complete freedom of movement, thereby ensuring better productivity and quality control.
Creaform’s HandySCAN 3D™ handheld scanners are designed to handle 3D measurements of physical objects and meet the requirements of product development and engineering professionals.
The NewView 7000 Series optical profilers are powerful tools for characterizing and quantifying surface roughness, step heights, critical dimensions, and other topographical features with excellent precision and accuracy. All measurements are nondestructive, fast, and require no sample preparation. Profile heights ranging from < 1 nm up to 15000 µm at high speeds, independent of surface texture, magnification, or feature height!
The QImaging QIClick™ digital CCD camera offers excellent performance and integrates speed and resolution enabling exceptional adaptability to all imaging requirements.
QImaging’s Retiga 6000 is a high resolution fluorescence snapshot CCD camera that allows users to view larger areas with more clarity and in greater detail. With unmistakable advancement in fluorescence documentation, the CCD camera can capture the largest field of view without affecting the sensitivity or resolution.
The FilmTek™ 2000SE is a high performance spectroscopic ellipsometer for thin film characterization that measures from the deep UV to NIR (190-1700nm). Based on a rotating compensator design, the FilmTek™ 2000SE spectroscopic ellipsometer combines spectroscopic ellipsometry with multiple angle reflectometry to make it ideally suited for measuring the thickness and optical constants (n & k) of very thin films.
The SIR3 series of cameras from Specialised Imaging are compact, lightweight and robust, making them ideally suited for the harsh indoor and outdoor environments associated with proofing ground and industrial use.
QImaging is proud to introduce the Rolera EM-C2, the latest addition to its line-up of high-speed, high-sensitivity cameras. This camera is specifically designed to detect extremely low light levels at super-high frame rates with unparalleled spatial resolution. It enables life science researchers to take high-resolution, low-light video rate images capturing events never seen before.
The TEAM™ EBSD analysis system is integrated with the smooth operation of the TEAM™ software with the analytical power of OIM™ to offer state-of-the-art characterization of crystal structures.
The QImaging QICAM digital camera has been developed for quantitative analysis and high-resolution imaging in brightfield, life science and industrial applications.
The AM 300 is a simple to use scanning acoustic microscope for advanced industry quality control and research. It is a cost-effective tool enabling non destructive acoustic investigations using new rf and transducer technologies of up to 400 MHz.
QCapture Pro 7 offers advanced imaging and analysis capability for obtaining, improving and analyzing images with simple to use live true color imaging and correction.
The advanced high-sensitivity, thermoelectrically cooled family of PIXIS-XO camera systems is designed with special back-illuminated CCDs without anti-reflection coating for direct imaging of very low energy X-rays (< 30 eV). The rotatable conflat flange design provides ultra-high vacuum hard metal seals with ability to align the CCD.
The C5405-50 CCD camera available from Hamamatsu can be used for a wide range of applications, particularly for measurement and observation applications.
The ICAM scanning acoustic microscope is a high speed, fully digital and integrated system designed for rapid non-destructive inspection of integrated circuit (IC) packages and similar parts. It can be used in development, production and failure analysis situations to give repeatable and detailed information on internal features, showing the presence of manufacturing, processing and in-service defects.
The Nexview 3D optical surface profiler from Zygo can measure topography of almost any surface, from smooth to rough with sub-nanometer accuracy, independent of field of view.
Qimaging's optiMOS is a high-framerate, now-noise, budget friendly sCMOS camera. As an affordable sCMOS solution, optiMOS brings the advantages of low noise and high speed imaging to a broader range of applications.
Till now researchers who were interested in NIR imaging were compelled to either use front- or back-illuminated, deep-depletion CCDs.
Hamamatsu offers the C9300-221 which is a VGA-format high-speed digital CCD camera. It consists of a high-speed progressive interline transfer CCD without mechanical shutter.
The IPLEX RX/ IPLEX RT are lightweight industrial videoscopes featuring the unique PulsarPic image processor to produce exceptionally high-resolution and bright images.
The S-MAX3000 pinhole SAXS camera design is offered with a range of conventional or high brilliance X-ray sources.
Allied Vision offers the Goldeye short-wave infrared (SWIR) cameras which feature an advanced scientific design, with a nitrogen gas-filled cooling chamber option and a compact sturdy industrial design without a fan.
The Zeta-20 enables analysis and imaging of surface characteristics on all kinds of samples, namely low reflectivity to high reflectivity, smooth to rough and transparent to opaque based on the proprietary ZDot™ technology.
Economy video borescopes serves as a good handy flexible video inspection tools for various type of jobs.
The T-Cam Compact Hi-Spec scientific CCD Camera permits high resolution imaging of ultra fast events in either ambient or low light environments coupled with instantaneous access to the data. It will provide an invaluable tool to engineers studying aerodynamics and flow mechanics.
The Retiga™ 2000R Digital Camera is suited for high-accuracy quantitative analysis in low light/brightfield/darkfield/ fluorescence imaging in life science and industrial applications.
Andor’s expertise in scientific performance optimization has been harnessed once again. Clara has been designed to deliver the highest sensitivity performance achievable from an interline CCD camera.
The Kassoy Polariscope is a quality alternative to higher-priced units.
The CCI UHSM is an innovative instrument that is designed to handle ultra high speed piezo-less 3D profiling. The proper functioning of a component depends on three elements of surfaces – dimension, form and texture.
The CoolSNAP HQ2 from Photometrics is a high-resolution and rapid camera developed quantitative fluorescence microscopy applications.
Alicona offers IF-EdgeMaster, a sophisticated optical 3D measurement device specifically designed for measuring cutting tools of different types, sizes and surface finishes.
Machida’s largest body type is particularly suited to longer borescope lengths up to 20 feet. The most outstanding feature of the smooth knob type scope is the huge, high definition images you’ll be able to achieve.
The Acton Standard Series of monochromators and spectrographs has long been known as the industry standard for delivering the highest quality data for research labs worldwide.
The DynaFiz interferometer available from Zygo is an advanced optical system that is exclusively designed for carrying out precise metrology of optics in the presence of intense vibrations and turbulent air.
The OPTi digital hand-held refractometers are manufactured in UK as a highly reliable premium quality instrument suitable for arduous environments to be suitable for a large number of applications.
Using ultra high-resolution image intensifiers and no-compromise optical design, takes image quality to the next level in ultra high-speed framing. The Specialised Imaging Multi-Channel Framing Camera offers the ultimate in ultra-high-speed imaging performance to scientists and engineers across all disciplines. The all-new custom optical design offers up to 16 separate channels without compromising on resolution, shading, or parallax
Pacer provides a range of red and near infrared Laser Diode Modules from Monocrom, with output powers in the range of 1mW to 3W. Typical wavelengths range from 405nm to 1550nm, enabling the modules to cover a wide field of applications including industrial and medical applications, imaging and laser lighting.
ATAGO's Abbe Refractometers are highly reliable instruments which measure Refractive Index. Compared with other types of refractometers, the Abbe refractometers are capable of measuring liquid and solid samples such as plate glasses, plastic sheets, and other solid films.
HORIBA Scientific’s PTI RatioMaster is a monochromator-based wide-field microscope system designed for measuring ratio-fluorescence or fluorescence dye intensity of labeled proteins in nanomolar concentrations.
Buehler’s OmniMet™ is designed to perform powerful image analysis coupled with an adjustable database.
The Rolera Bolt, QImaging's new scientific CMOS camera, was developed for low-light and high-speed imaging.
Strainoptics’ PS-100 Polarimeter System is a modular system, available in a variety of sizes and configurations.
The digital FALCON BLUE EMCD camera model FA285B-CL integrates high sensitivity, speed and high resolution.
Mahr’s MarVision workshop measuring microscope MM 320 with M3 software is designed to handle measurement of electronic parts such as printed circuit boards, small features on micromechanical parts, 2D profile measurements on plastic and metal parts, and production control of turned components.
Horiba Scientific’s AToR EMCCD is a scientific interline EMCCD camera. The 658x496 sensor size allows for optimum data resolution, and the interline transfer technology enables short integration times sans image smudging as an outcome of the rapid transfer of signal charge to the lightshielded storage column.
MicroFlex Flexible or Semi-Rigid borescopes use a 10,000 fiber image bundle for very good image quality in such a small diameter package.
​Andor has introduced a new addition to the iXon EMCCD cameras which are ultrasensitive digital cameras specifically designed to drive the absolute best from EMCCD technology across all performance parameters and specifications.
Photon etc.’s ZEPHIR camera is a low-cost, deep-cooled SWIR camera that can be operated from 0.8 to 2.6µm. Initially designed for complex faint-flux applications such as hyperspectral imaging, the camera integrates a four-stage TE cooler.
The Micron CoolR is equipped with a superior quality grade Sony ICX285 CCD for handling challenging research applications. The 1.4MP chip provides high refresh rates with versatile capture options and the 6.5µm x 6.5µm pixel size offers excellent light transmission.
IF-ToolPrecision, the advanced measurement device from Alicona, has been designed to measure taps and shaft tools and allows high resolution measurement of form, contour, roughness and roundness.

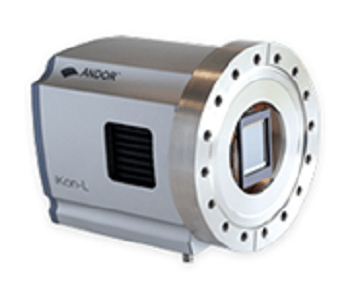

Andor's iKon-L 936 [DO] USB X-ray CCD camera is designed with x-ray imaging in mind, an ideal system to interface to vacuum chambers for direct X-ray detection. The 2048 x 2048 array and 13.5µm2 pixels combine to deliver a 27.6 x 27.6mm active image area, TE cooled down to -100°C.
The DV2 from Photometrics is an emission splitting system that enables a user to obtain two spatially identical but spectrally distinct images at the same time.
Refractometers are important for veterinary and human use. The duo scale OPTi-Sport plays an important role in determining hydration levels of athletes and also in controlling the content of sugar in sports drink before consuming.
The new ADP600 Series of Peltier temperature controlled polarimeters can measure optical rotation to four decimal places in the highly sensitive ultra-violet region. This renders the instrument especially suited for use by scientists who wish to measure chiral compounds and other optically active substances in the chemical, pharmaceutical and food sectors as well as for use in academic research.
More stringent requirements of quality control and, in some cases, changing legislation, mean that greater accuracy is being demanded of refractometers. The Abbe 60 Direct Reading models, available in two measuring ranges, have been designed to meet these requirements.
Creaform’s MetraSCAN-R optical CMM 3D scanning systems are fast, precise, robot-mounted scanning solutions specifically designed for automated inspection of parts on shop floors and production lines.
IF-Portable, the advanced optical 3D micro coordinate measurement device from Alicona is designed for measuring roughness and form on large components with plane and curved geometries.
The Photometrics Evolve EMCCDs are the ultimate deep-cooled, back-thinned EMCCD cameras. Years of engineering expertise have enabled Photometrics to perfect every element of the Evolve EMCCDs. The Evolve EMCCDs offers life science researchers the world’s first advanced feature set designed specifically for EMCCD cameras and for low-light-level bio-imaging applications.
Based on Princeton Instruments’ popular deep-cooled PIXIS platform, PIXIS CCD Cameras with eXcelon cameras utilize proprietary eXcelon back-illuminated and deep depletion sensor technology to provide significant improvements in sensitivity and fringe suppression.
Hand held refractometers are used for quick and convenient measurement of concentration in several semi-solid and liquid samples.
Lumenera’s Lg11059 features the quality Kodak KAI-11002 CCD image sensor, 4008 x 2672 resolution, large dynamic range with up to 66 dB and selectable 8 or 14-bit data output, providing exceptionally high resolution and sensitivity.
The Form Talysurf i-series is a high precision instrument range designed with instantaneous surface finish and contour measurement.
Alicona’s InfiniteFocusSL is an advanced optical measurement system that combines a 3D measurement system and surface finish measurement device in a single product.
Nikon's benchtop optical comparator with enhanced features for improved precision and ease of operation.
InfiniteFocus Real3D, the high-end optical 3D micro coordinate measurement system from Alicona, is designed to provide a complete form measurement of tap tools.
Princeton Instruments, a pioneer in low-light-level imaging technology, has been at the forefront of EMCCD technology for the better part of this decade. The Princeton Instruments ProEM camera is the culmination of years of working with leading researchers and skillfully implementing our own ultra-low-noise electronics, deep cooling, and EMCCD expertise.
Oriel offers the 74004 Cornerstone 130 1/8m motorized monochromator, which can support two gratings concurrently.
The ZetaScan is a fully automated 300mm capable defect inspection tool capable of addressing a range of substrates such as polished, unpolished, transparent, opaque, rough ground substrates and touch panels.
PI's unique VersArray cameras feature large format CCD detectors for wide-area imaging. These high-tech systems also offer the lowest read and dark noise in the industry via cryogenic air cooling.
HORIBA Scientific’s Synapse CCD and EMCCD scientific cameras are designed to assist in highly challenging spectroscopic measurements, ranging from Raman to single molecule spectroscopy.
The BioSAXS-2000 SAXS camera supplied by Rigaku is particularly designed to meet the needs of structural biologists.
Zygo’s NewView 7300 white light interferometer is a 3D optical surface profiler, which is exclusively designed for differentiating and quantifying topographical features such as critical dimensions, surface roughness, step heights, etc.
Excelitas has announced a high power surface mount laser diode family which produces very high power optical pulses centred at a wavelength of 905 nm.
Allied Vision’s Manta is a versatile GigE vision camera designed with advanced color correction capabilities, three look-up tables (LUTs), and many modular options such as angled heads and board level versions.
QImaging offers Retiga 3000, a high resolution snapshot fluorescence CCD camera. The camera features a 4.54µm pixel pitch, 2.8 million pixels, and a high quantum efficiency of 75%. These features allow it to provide higher sensitivity and resolution than most conventional fluorescence microscopy cameras.
Refracto 30GS is a compact, easy-to use portable refractometer for measurements in laboratory and production environments. It offers an extended measuring range thanks to it's special prism design.
Adding the Rolera Thunder to your research portfolio helps in capturing images that elucidate results. This EMCCD is aggressively priced and was added to the Rolera family of cameras from QImaging.
The PTI EasyRatioPro from Horiba Scientific is an advanced monochromator-based wide-field microscope system designed for measuring fluorescence dye intensity or ratio-fluorescence of labelled proteins in nanomolar concentrations.
IF-EdgeMasterHOB, the advanced optical 3D cutting edge measurement device from Alicona, is designed to measure discrete teeth of hob cutters. The system is based on Focus-Variation technology.
A 50" horizontal beam heavy duty floor mounted side screen optical comparator with fully corrected image.
The OWL SW1.7 CL-640 is a robust, high-sensitivity, digital VIS-SWIR camera. With a 640x512 InGaAs sensor from SCD the OWL enables high sensitivity imaging from 0.4 to 1.7µm.
The Intra series offers precision shop floor solutions for surface finish and contour measurement. There are two versions in this series - Intra Touch and Intra Ultra.
Starrett offers a wide range of high speed roundness systems for the automotive, bearings and precision industries.
The GES5E is the SOPRA core instrument for R&D applications. GES5E integrates advanced and well proven opto-mechanical designs coupled to high performance electronics, Spectrometers and spectrographs and user friendly Windows software. GES5E is the most recent model of 5 generations of spectroscopic ellipsometers developed by SOPRA.
After launching the Kingfisher CCD, Raptor has launched a deep-cooled vacuum version of the same camera.
The Pro-Juice refractometer has been specifically developed to focus on the practical handling of the sample prior to high accuracy measurement in order to achieve a measurement accuracy of 0.01 °Brix for sucrose solutions.
The spectroscopic ellipsometer SENpro represents a new generation of cost effective spectroscopic ellipsometers featuring simple operation, measurement speed and combined data analysis of ellipsometric measurements at single or multiple angle of incidence.
The UVISEL 2 available from HORIBA Scientific is a fully integrated and automated ellipsometer which has been specifically designed for industrial and research-oriented users.
The Calowear is used for determining coating thicknesses. A rotating sphere with a known diameter is pressed on the coating surface.
Digital Refractometer with built-in thermostat. 5 place digital refractometer for measurement of refractive index, BRIX, HFCS or concentration of aqueous solutions.
The Axometrics Stokes Vector Polarimeter measures the complete polarization state of a beam of light. An easy-to-use graphical user interface provides real-time measurements of the polarization state and degree of polarization. The system attaches to you Windows-based PC via the USB port.
The OSPREY Scientific CMOS camera model OS4MPc-CL, features a 2kx2k low noise scientific CMOS sensor that is exclusive due to its high resolution, high sensitivity, high speed and high quantum efficiency.
EVOLUTION I is a simple to use scanning acoustic microscope for advanced industry quality control and research. It is a cost-effective tool enabling non destructive acoustic investigations using new rf and transducer technologies of up to 100 MHz, optionally up to 230 MHz.
The SIM02 Specialised Imaging Multi-Channel Framing Camera, using ultra high-resolution image intensifiers, no-compromise optical design, and double pulsing takes ultra high-speed framing to the next level of flexibility. The SIM02 Specialised Imaging Multi-Channel Framing Cameras offer the ultimate in ultra-high-speed imaging performance to scientists and engineers across all disciplines.
The Hawk EMCCD camera is a a compact and highly robust EMCCD camera with a range of digital or analogue outputs and offers a resolution of 658x496 with frame rate of 25 / 30Hz.
HDV640W: HD VideoScope with Wireless Handset/Articulating Probe. Inspection Camera with Wireless Handset & 6mm Semi-Rigid, Articulating (320°) Probe (1m).
The C5405-51CCD camera available from Hamamatsu can be utilized for a variety of applications, patricianly for measurement and observation applications.
A high-precision optical comparator geared for measurement and inspection of larger parts.

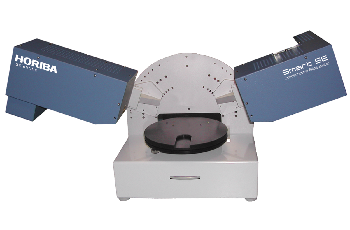

HORIBA Scientific has unveiled the Smart SE Spectroscopic Ellipsometer which is a powerful, versatile and cost-effective instrument for quick and precise thin film measurements.
The new Focus™ Lite 14" Horizontal Contour Projector® is an extremely high quality, rugged benchtop machine with industry-leading technologies, at an attractive price point. With Focus Lite, you always get the most for your money, with innovative features.
Photometrics offers the Evolve™512 Delta EMCCD Camera with excellent speed and imaging performance.
The Zeta-560 from Zeta Instruments is a completely automated wafer metrology system that can process 6 or 8in wafers. The system caters to a number of applications including wafer bow, film thickness, etch depth, roughness and bump height.
The Micron 5 is an all-round digital microscopy camera equipped with 5MP resolution. It is an ideal instrument for numerous applications in microscopy.
The CCI MP-L interferometer is an innovative tool that provides high quality, 3D measurement. Automatic surface detection is possible with AutoFringeFind. This feature enhances inspection throughput by eliminating the need for manual assembly.
The C8484-16C UV CCD digital camera available from Hamamatsu uses a sophisticated 1/2" progressive scan interline CCD chip with high sensitivity in the ultraviolet (UV) region, and provides improved noise properties at high frame rates.
A desktop Polariscope with built in light source.
Yokogawa offers a new short wavelength optical spectrum analyzer (OSA) called AQ6373.
This device is designed for determining double refraction in flat blanks and products of transparent and weakly tinted materials, and is used for quantitative assessment of double refraction value by Senarmon method.
The precision optical coating systems from Dynavac offer consistent results regularly every year. Dynavac systems are being used in facilities globally, handling the most advanced optical coating challenges with high reliability and performance.
The iRiS is a 4.2 MP scientific CMOS camera from Horiba. The size of the sensor (2048x2048) allows a large field of view and exceptional image resolution. The camera is Peltier cooled and thus enables low dark current.
Mahr’s MarVision video workshop measuring microscope QM 300 with M3 software is a tool that is capable of measuring and/or determining geometric elements such as lines, points, distances, intersection, and circles through automatic edge detection.
The CoolSNAP MYO is a high sensitivity, high resolution camera for moderate to low-light life science applications.
Compared with traditional optical comparators, our VisionGauge® Digital Optical Comparators are competitively priced and offer numerous benefits.
GEMMODUL is a series of modular gemological instruments that can be used alone or can be combined in one unit.
The new PI-MAX3 is a ground-up design that advances the intensified camera technology to the next level. As the newest addition to Princeton Instruments' acclaimed ICCD camera line, it is a culmination of years of experience in designing gated camera technology and application knowledge.
AMT’s XR50 TEM camera is equipped with a retracting side-mount or mid-mount, a large format sensor with 5 megapixels, and a high performance lens.
Karl Storz Mini Borescopes can reach inspection areas through holes as small as 1 mm (.025") in diameter. The bright images eliminate shadows and false indications to assure more accurate inspections as well as high quality images for documentation.
Cole-Parmer PolyStat heated circulating baths and refrigerated circulating baths are available in multiple configurations to deliver the ideal combination of precision, versatility, and repeatability for your requirements. These next generation circulating baths feature touch-pad setting, making it easier to adjust the temperature to your requirements.
The TEAM™ EDS Analysis System from EDAX is an intuitive analytical solution used for SEM purposes. Combined with the TEAM™ EDS Software Suite, the tool delivers automated workflow functions.
The Polariscope is an essential tool for determining strain patterns developed during fabrication and manufacturing. It permits immediate determination of strains in most transparent materials. It is valuable in production or as a laboratory tool wherever glass is fabricated, welded or bent.
The measuring range of the successful half Brix OPTi which was launched in 2011 is extended by OPTi+ hand held refractometers.
The fully integrated high-performance, thermoelectrically cooled PIXIS-XF camera utilizes a scientific grade 2048 x 2048 pixel CCD for lensless, indirect imaging of X-rays using phosphor screens. Supported under LabView and Linux OS, the camera features a compact single-head design, an easy-to-use USB 2.0 interface, and comes equipped with WinView software.
The Optilab® UT-rEX™ (UHPLC refractometer with EXtended range) from Wyatt Technology is the first RI detector that can be coupled with any UHPLC unit.
The IF-SensorR25 available from Alicona is a sophisticated optical 3D measurement device designed for automatic in-line measurement of form, roughness and orientation in production.
Photon etc. offers the V-EOS widefield hyperspectral camera, which gives complete information about the target with full resolution images at wavelengths ranging from 400 to 1000nm. With a patented design based on volume Bragg gratings, the V-EOSTM redefines spectral analysis and offers a range of monochromatic images at user-specified wavelengths.
Hamamatsu offers the advanced ORCA-3CCD cooled digital color camera, which is integrated with three cooled CCD chips to deliver high resolution, fast readout and excellent S/N ratio of the Hamamatsu ORCA digital camera series.
A number of leading companies consider the RFM300+ series refractometers as the ultimate instrument to be installed in challenging factory environments and also as a primary quality control tool.
PyLoN™ from Princeton Instruments is a new line of controllerless, cryogenically cooled CCD cameras designed for quantitative spectroscopy applications that demand the highest possible sensitivity.
QExtraTechnology, available from HORIBA Scientific, is an advanced, anti-reflective multi-layer coating that offers excellent quantum efficiency for experiments requiring coverage from UV to NIR,
Lumenera’s new Lw1160 CCD OEM digital camera is specifically designed for use in a wide variety of scientific and industrial applications where low-light conditions and high dynamic range are present.
A useful laboratory and manufacturing tool, the LCPM-3000 Polarimeter covers various applications, from aligning optics to measuring optical retardance or optical activity. The LCPM-3000 accurately measures the Stokes Parameters that quantify the State of Polarization (SOP) and then graphically displays this state on the Poincaré sphere, polarization ellipse or running stripchart.
