Stainless Steel - Martensitic - 1.4006 Bar Properties, Fabrication and Applications

Grade 410 / 1.4006 is a hardenable martensitic stainless steel. Alloy designations of 1.4006 are similar, but may not be considered as a direct equivalent to: 410S, UNS S41000, and 410S21.

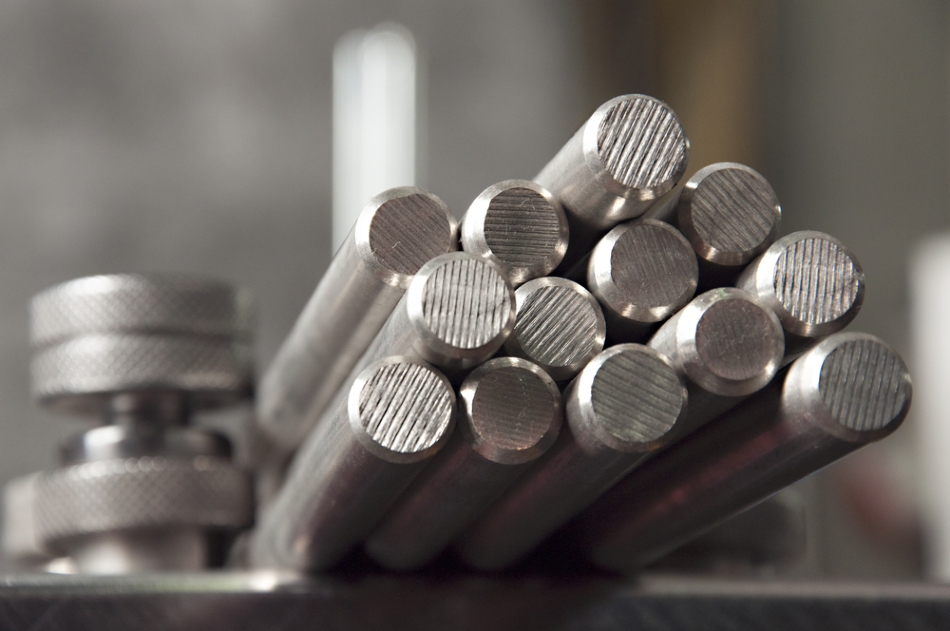

This grade of steel is supplied in the form of bar. It exhibits moderate corrosion resistance in non-chloride containing environments.

Chemical Composition

1.4006 Steel EN 10088-3:2005
Chemical Element % Present
Carbon (C) 0.08 - 0.15
Chromium (Cr) 11.50 - 13.50
Silicon (Si) 0.0 - 1.00
Manganese (Mn) 0.0 - 1.50
Phosphorous (P) 0.0 - 0.04
Sulphur (S) 0.0 - 0.02
Nickel (Ni) 0.0 - 0.75
Iron (Fe) Balance

Properties

Physical Property Value
Density 7.75 g/cm³
Thermal Expansion 9.9 x10^-6 /K
Modulus of Elasticity 300 GPa
Thermal Conductivity 24.9 W/m.K
Electrical Resistivity 0.0570 x10^-6 Ω .m
Bar - Up to 160mm Dia or Thickness EN 10088-3:2005
Mechanical Property Value
Proof Stress 450 Min MPa
Tensile Strength 650 - 850 MPa
Elongation A 15 Min %

This information has been sourced, reviewed and adapted from materials provided by Aalco - Ferrous and Non-Ferrous Metals Stockist.

For more information on this source, please visit Aalco - Ferrous and Non-Ferrous Metals Stockist.
