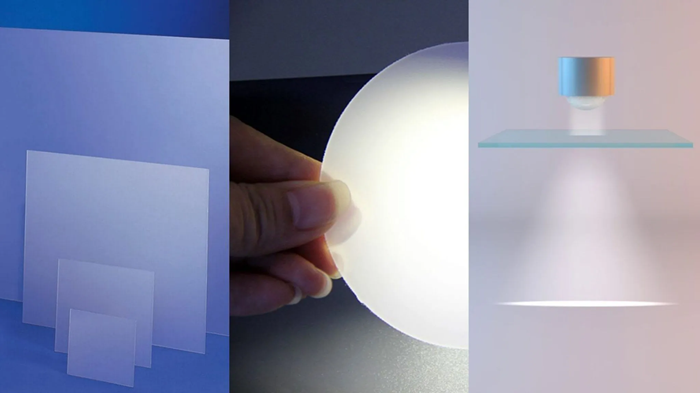

Light Shaping Diffusers are used across a wide range of applications. They are most commonly found in architectural, decorative, pool, event, and wall-wash lighting, where dramatic visual effects are required.
Image Credit: Materials Direct
They are also widely used in LED illumination systems, from aircraft inspection lights to backlit displays in mobile phones, LCD screens, and other devices - thanks to the many benefits they provide.
Applications for Light Shaping Diffusers
Light Shaping Diffusers are suitable for a broad range of applications. Common applications include architectural lighting, decorative lighting, pool lighting, set/event lighting, and wall wash lighting, where dramatic light effects may be needed.
Thanks to their numerous benefits, LED Light Shaping Diffusers are integrated into illumination systems such as aircraft inspection lights and into backlit systems, including mobile phones and LCD screens.
Lighting Applications

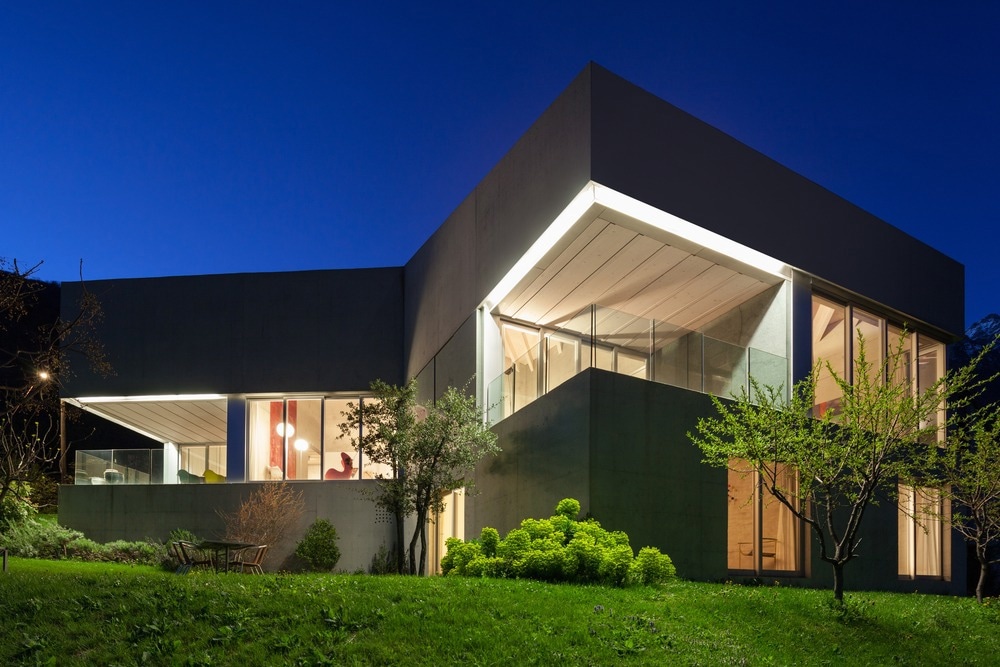

Light Shaping Diffusers serve a wide variety of lighting purposes including architectural lighting, recessed downlights, pool lighting, set and event lighting, decorative lighting, and wall wash illumination.
Image Credit: alexandre zveiger/Shutterstock.com
Display Applications

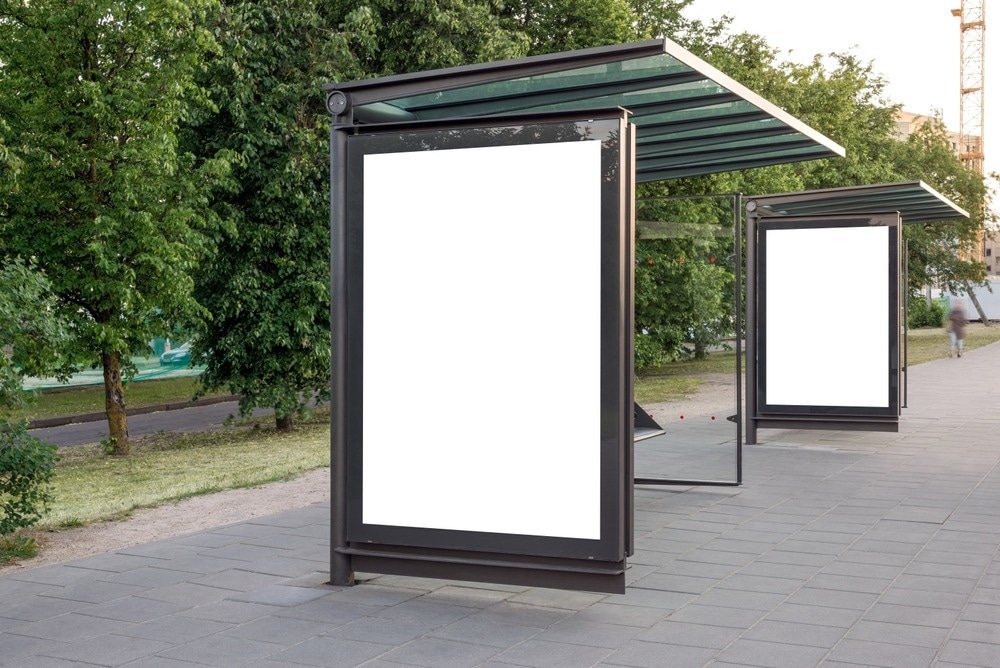

When employed as direction-turning or prismatic film, light shaping diffusers can be used to spread the LED light in LCD displays while simultaneously enhancing LCD display brightness.
Image Credit: photodonato/Shutterstock.com
High Tech Applications

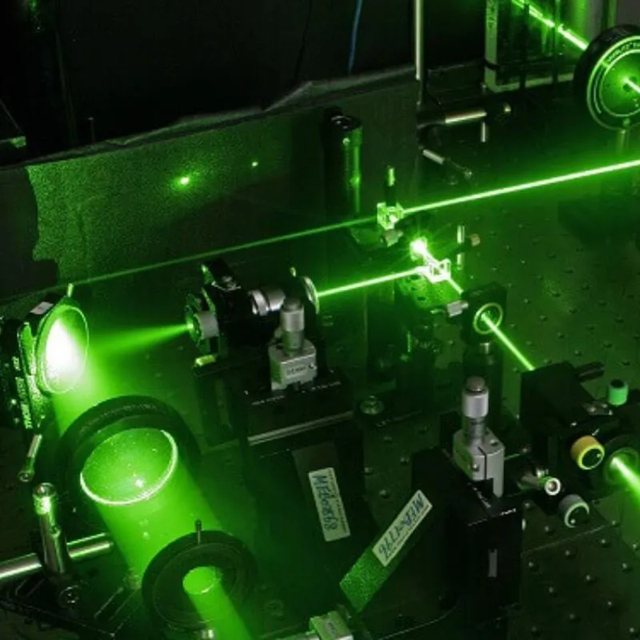

Light Shaping Diffusers are well-suited for high-power and high-temperature applications, including machine vision inspection systems, laser systems, and biomedical devices.
Image Credit: Materials Direct
Automotive Applications

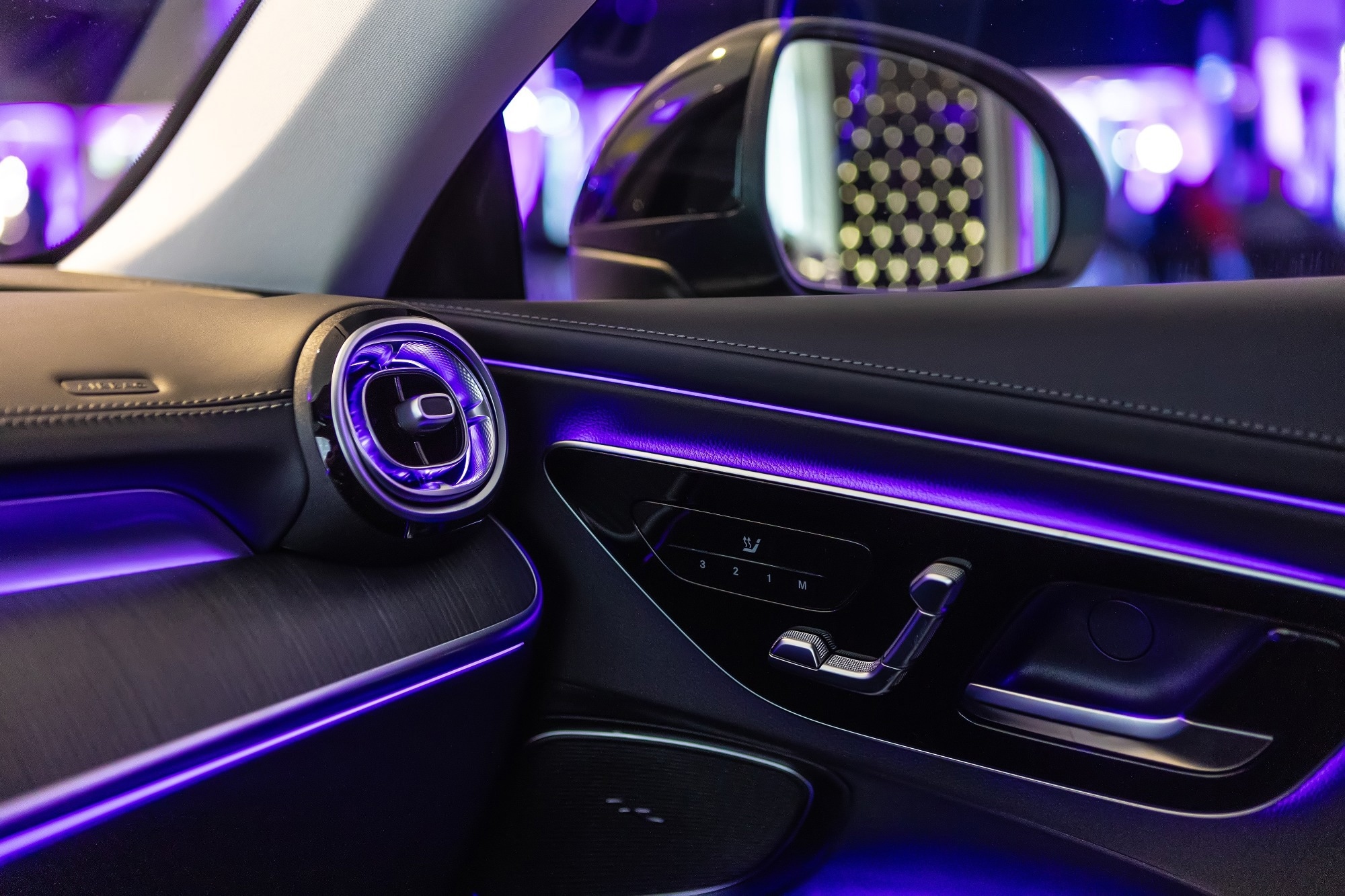

LED light Diffuser films are specifically engineered for both automotive interior and exterior use. Automotive lighting specialists apply these diffusers to taillights and running lights to unify LED output and regulate beam angles.
Additional applications include automotive interior lighting, cluster panels, LCD displays, and welcome mat lighting.
Image Credit: SARYMSAKOV ANDREY/Shutterstock.com
Other Applications Include:
- Barcode Scanners
- Fibre-Optic Illumination
- Projection Systems & Screens
- Mobile Phones & PDAs
- Inspection Systems
- Microscopic Illumination
The Most Effective Light Shaping Diffusers
For the most effective light diffusion material, Materials Direct recommends Luminit. Unlike other manufacturers, Luminit replicates LED lighting diffusers directly onto rigid panels rather than relying on a lamination process. The result is a far superior product built for long-term durability.
Why Choose Luminit Light Shaping Diffusers?
Luminit Light Shaping Diffusers push the boundaries of what’s possible with light through advanced holographic beam-shaping technology. Their highly efficient diffusion capabilities enable the design of high-efficacy fixtures, delivering both performance and reliability.
Image Credit: Materials Direct
Transmission Efficiency
Luminit diffusers employ surface-relief-based refraction rather than volume or bulk scatter. As a result, their high-efficiency rating tends to be significantly high, ranging between 85 %-92 %, depending on the angle. This high rating is attributed to the diffractive microstructure technology employed by Luminit. For higher transmissions, smaller angle diffusers are recommended.
Reducing LED Hotspots
A key benefit of Light Shaping Diffusers is their ability to minimize LED hotspots without reducing overall brightness. To maintain consistent illumination, it is best practice to place the diffuser at least as far from the LEDs as the LEDs are spaced apart.

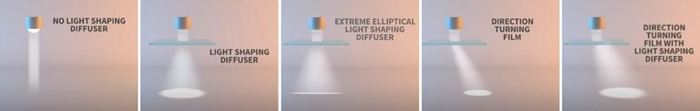

Shaping Light Beams
Thanks to their precision-engineered design, Luminit Light Shaping Diffusers can shape, control, and distribute light with remarkable accuracy. Using a holographic master recording process, they create both circular and elliptical light patterns, with a wide selection of standard elliptical angles available to suit different applications.
Long-Lasting and Non-Yellowing
Unlike laminated alternatives, Luminit diffusers are replicated directly onto rigid sheets. This process prevents brittleness, peeling, and yellowing over time, ensuring long-lasting clarity and performance.
Are Luminit Light Diffusers the Right Choice for your Application?
Determining the best materials for your LED application depends entirely on the effects and benefits you want to achieve. When planning your setup, it’s important to think not only about the visual results but also about the long-term conditions your LEDs will be exposed to.
Choosing the right material allows professionals to both optimize lighting performance and protect their systems. This ensures high-quality illumination while also extending the lifespan of the installation.
This information has been sourced, reviewed and adapted from materials provided by Materials Direct.
For more information on this source, please visit Materials Direct .
