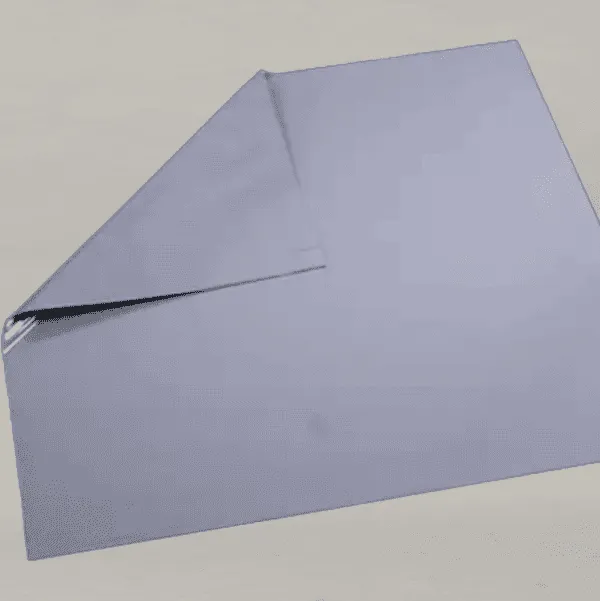

CoolZorb 200 is a hybrid material designed for both EMI mitigation and thermal management. It functions as a traditional thermal gap filler, placed between a heat source - like an integrated circuit (IC) - and a heat sink, metal chassis, or other heat-dissipating component.
In addition to conducting heat away from sensitive components, CoolZorb 200 helps suppress unwanted energy coupling, resonances, and surface currents that can lead to board-level EMI issues.
Benefits
- Cost-effective hybrid material offering both good thermal management (2 W/mK) and EMI absorption
- Effective EMI suppression across the 1–25 GHz frequency range
- Naturally tacky surface, similar to standard thermal gap fillers
- Tested to meet UL 94 V0 flame requirements
Types Available
- 0.5 mm | Laird (SKU: 93920)
- 0.75 | Laird (SKU: 93921)
- 1 mm | Laird (SKU: 93922)
- 1.5 mm | Laird (SKU: 93924)
- 1.75 mm | Laird (SKU: 93925)
- 2 mm | Laird (SKU: 93926)
- 2.25 mm | Laird (SKU: 93927)
- 2.5 mm | Laird (SKU: 93928)
- 2.75 mm | Laird (SKU: 93929)
- 3 mm | Laird (SKU: 93930)
- 3.25 mm | Laird (SKU: 93931)
- 3.5 mm | Laird (SKU: 93932)
- 3.75 mm | Laird (SKU: 93933)
- 4 mm | Laird (SKU: 93934)
- 4.25 mm | Laird (SKU: 93935)
- 4.5 mm | Laird (SKU: 93936)
- 4.75 mm | Laird (SKU: 93937)
- 5 mm | Laird (SKU: 93938)
