Analysis of Surface Plasmons in Films and Sensors with Microspectrometry

CRAIC Technologies is the worlds leading developer of UV-visible-NIR range scientific instruments for microanalysis. These include the QDI series UV-visible-NIR microspectrophotometer instruments designed to help you non-destructively measure the optical properties of microscopic samples. CRAIC's UVM series microscopes cover the UV, visible and NIR range and help you analyze with sub-micron resolutions far beyond the visible range. CRAIC Technologies also has the CTR series Raman microspectrometer for non-destructive analysis of microscopic samples. And don't forget that CRAIC proudly backs our microspectrometer and microscope products with unmatched service and support.

Image Credit:Shutterstock/udaix

Effects of Surface Plasmon Resonance (SPR) on Biosensors and Microfluidic Devices

Surface Plasmon Resonance (SPR) effects are the basis behind many biosensors and microfluidic device detectors currently in use or under development. Simply put, surface plasmons are electromagnetic waves that propagate along the surface of an interface between a metal and a dielectric. The plasmons are excited by illuminating them with ultraviolet, visible or near infrared light and the spectral characteristics of the plasmons can be measured with instruments such as CRAIC Technologies microspectrophotometers. Changes in the metal-dielectric interface, such as when the surface is in contact with water or a biological molecule, cause the spectra of the plasmons to change. This variation can be measured by the microspectrophotometer and is the basis for this class of sensor. As such, the SPR sensor can be tuned to detect many different analytes with a high level of sensitivity. These sensors can be made on the microscopic scale sensors and can even be patterned to maximize their utility and sensitivity to different materials in different locations.

Analysis of Surface Plasmon Resonance Sensors Using UV-Vis Microspectrophotometer

UV-visible-NIR microspectrophotometers are required for the development and analysis of SPR sensors for several reasons. Firstly, the sensors can be made on the micron scale and the microspectrophotometer can easily measure their spectral characteristics at that scale. Patterning does not present an issue as the microspectrophotometer measurement area is usually much smaller than the pattern features. This is especially important as it allows for a complete characterization of the sensors that are to be used in the next generation of lab-on-a-chip devices and WMD sensors. Even more importantly, a microspectrophotometer can be configured to monitor the spectral characteristics of SPR devices by a number of different means.

Measurement of Surface Reflectance and Transmission Through an SPR Film

Microspectrophotometers can monitor the reflectance off the surface, the transmission through an SPR film or even it's fluorescent emission. Using microspectrophotometers means that ever smaller sensors with denser patterns can be developed.

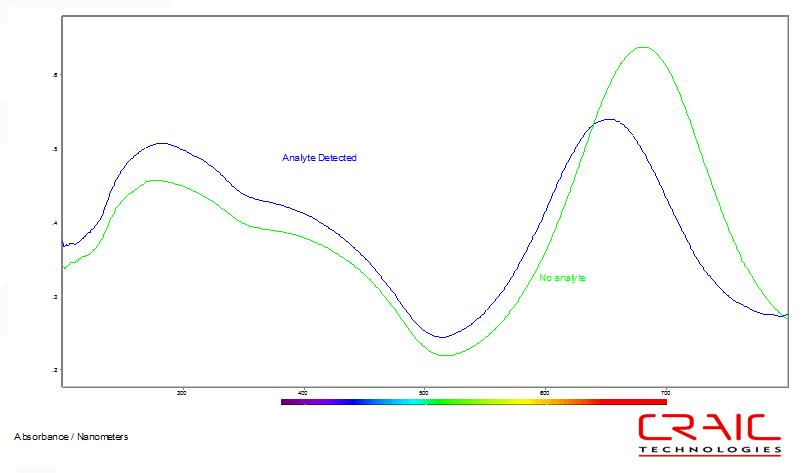

The spectra in the figure below show how the optical characteristics of SPR particles change when they come in contact with target analytes. The blue trace is that of the SPR sensor when in contact with the analyte. The green trace is shows that the analyte has not been detected. For this particular film, the shift occurs from 680 to 650 when the surface comes in contact with the analyte.

This information has been sourced, reviewed and adapted from materials provided by CRAIC Technologies.

For more information on this source, please visit CRAIC Technologies.
