One Component Silicone Elastomer MasterSil 709 Meets MIL-A-46146

Fast curing, single component MasterSil 709 has been developed for bonding, sealing and formed in place gaskets. MasterSil 709 is non-corrosive, flowable and is tack free in 15-20 minutes at 75°F. The rapidity of the cure depends on the thickness of the layer and the humidity; the thicker the layer the slower the cure.

Master Bond MasterSil 709 has a viscosity of 30,000-40,000 cps. Its moderate viscosity and good flow properties make it ideal for conformal creating applications. It has a Shore A hardness of 25-35 and a translucent color. MasterSil 709 features high thermal stability up to 400°F and bonds well to a wide variety of substrates. Its volume resistivity is > 1015 ohm-cm.

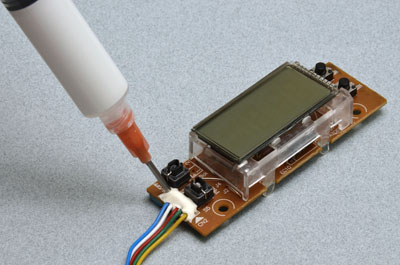

Figure 1

Master Bond offers a wide variety of environmentally friendly one component silicone compounds. They require no mixing and are solvent free. Specific formulations are optically clear, thermally conductive, electrically conductive, and resist exposure to extreme heat and humidity. They are easy to apply and are noted for their high flexibility.

Additional Silicone Compounds Meet Military Specifications

Master Bond has developed one part silicone systems that meet the requirements of the following military specifications: MIL-A-46146 and MIL-A-46146A Type 1. These products require no mixing and cure at room temperature. They feature superior electrical insulation properties and exceptional durability.

This information has been sourced, reviewed and adapted from materials provided by Master Bond Inc.

For more information on this source, please visit Master Bond Inc.
