Customized Hydraulic Testers for Mechanical Testing

Tinius Olsen has continuously been receiving request to customize its Super L test frames to handle various sizes and shapes of specimen. Although, the company offers standard options for the lengths of pulling screws and columns, it had received a request for a non-magnetic load frame for the first time in its 133 years of operation.

Need for a Non-Magnetic Load Frame

A division of the Russian Academy of Science is conducting a suite of experiments to explore the correlation between magnetic fields and stress loading. Hence, the use of a loading frame made of steel with a capacity of 60,000 lbf (300 kN) will apparently have a negative impact on any magnetic measurements.

Solution from Tinius Olsen

In order to resolve the aforementioned issue, Tinius Olsen closely worked with the customer for the development of a stiff loading frame featuring aluminum crossheads. The newly developed stiff loading frame enabled the customer to perform its tests without any magnetic interference from the test frame.

The machine with the aluminum crosshead is shown in Figure 1.

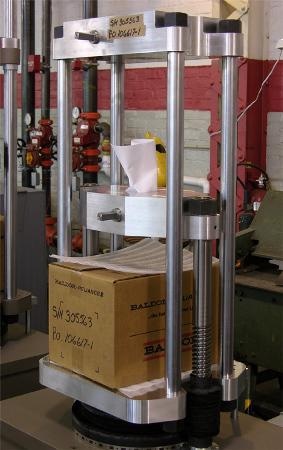

Tinius Olsen Super L stiff loading frame with aluminium crosshead

Figure 1. Tinius Olsen Super L stiff loading frame with aluminium crosshead

Different options of the same machine available are shown in Figure 2, demonstrating the customization available from Tinius Olsen.

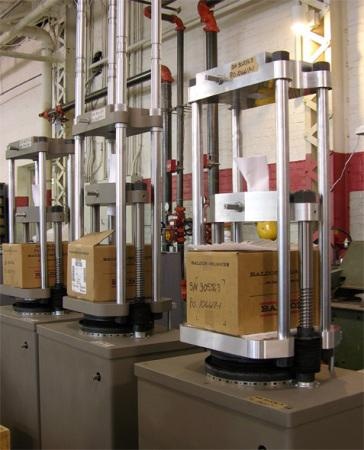

Tinius Olsen Super L loading frame with adjustable height crosshead

Figure 2. Tinius Olsen Super L loading frame with adjustable height crosshead

The machine next to the first machine in Figure 2 is also a 60,000lbf capacity Super L but is equipped with an adjustable height top crosshead on columns, which have an additional length of 3 ft. with strategically positioned spots for the top crosshead to be anchored.

This information has been sourced, reviewed and adapted from materials provided by Tinius Olsen.

For more information on this source, please visit Tinius Olsen.
