Designed for testing materials and assemblies under tension, compression, flexure, and shear, the Model 1000SL offers a dependable solution for high-force applications. Its robust construction, using high-quality components, reflects Tinius Olsen’s commitment to reliable system performance, ease of use, and long-term durability.
Tinius Olsen has long been recognized as a standard-setter in the field of hydraulic testing systems. With thousands of systems installed worldwide, the SL series continues to represent the highest standard in hydraulically powered universal testing machines.
Features and Benefits
- Supports a maximum force of 1000 kN / 200,000 lbf for tension, compression, transverse, and shear tests
- Four-column frame provides structural stability and accommodates larger specimens
- Friction-free piston design ensures smooth, controlled operation and minimizes downtime

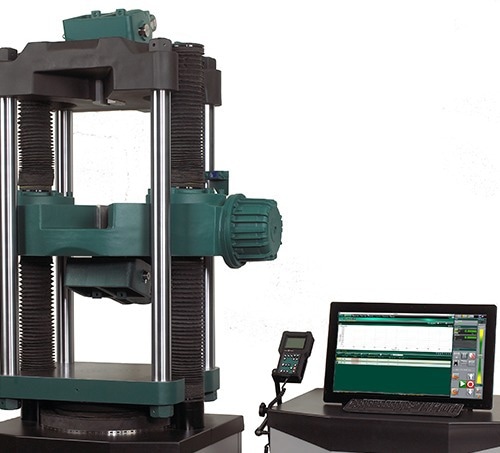

- Multiple interface options available, including a tethered handheld unit, wireless Bluetooth panel, or virtual machine controller
- Integrates seamlessly with Tinius Olsen’s Horizon data analysis software

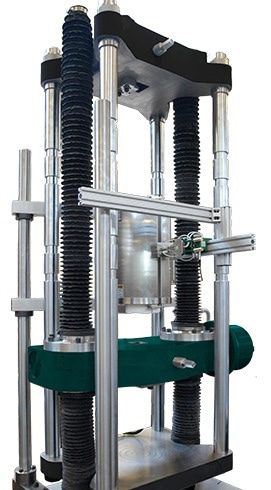

Image Credit: Tinius Olsen
Options and Accessories
- Columns can be extended by up to 914 mm (36 in) to increase test area size
- Adjustable top crosshead and column notching allow for more ergonomic specimen positioning
- Crossheads can be configured as closed, semi-open, or fully open for ease of loading and unloading
- In-head pocket grips and external fixtures can be mounted securely, depending on sample type
- Compatible with a full range of extensometers and deflectometers using video, laser, encoder, strain gauge, and/or LVDT technologies
- Furnaces and environmental chambers can be installed for high or low temperature testing
- Safety enclosures with interlocks are available to help protect operators from specimen failure
- Tinius Olsen’s Horizon software can be connected to the tester by the operator

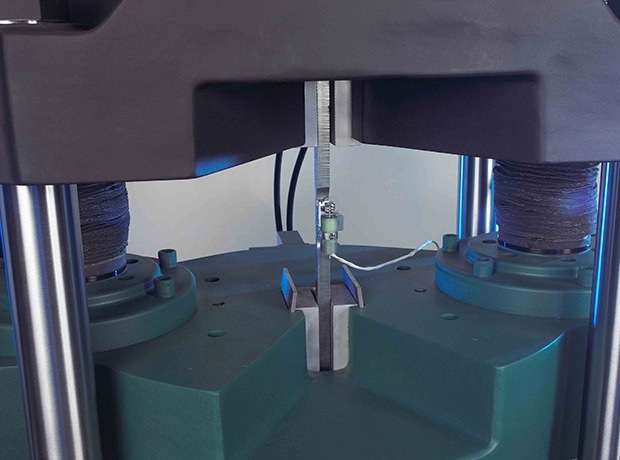

Image Credit: Tinius Olsen
