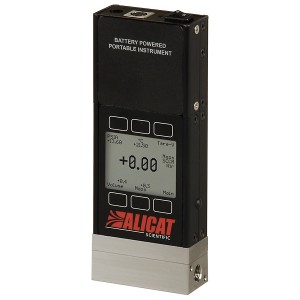

Portable Mass Flow Meters - Alicat MB Series

Alicat has developed the MB series portable mass flow meter that serves as a perfect tool for confirming flow rates in remote places. Powered by a single 9VDC battery, the full featured mass flow meter is often utilized as a portable transfer standard flow meter.

In addition, the MB series meter is fitted with connectors for analog and digital output as well as for hard power, thus enabling it to be utilized in fixed installations. The 9VDC battery serves as a backup power source when there is loss of hard power.

Key Features

The main features of the MB Series mass flow meter are:

  • Fully functional digital display
  • No warm up time
  • Low pressure drop operation
  • 9VDC battery pack powered electronics
  • Multiple parameter measurement: Volumetric flow, mass flow, pressure, and temperature
  • Choice of 0-5VDC or 1-5VDC analog output
  • NPT process connections
  • 30 user selectable on-board gas calibrations
  • 200:1 turndown ratio and Viton seals
  • Standard barrel type power connector
  • 8 pin mini din electronic connector
  • RS-232 multi-drop digital output
  • Can be ordered in any flow range between 0.5SCCM and 3000SLPM
