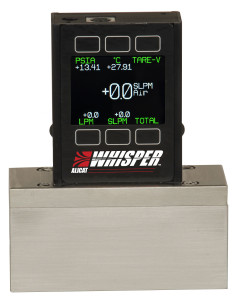

Low Pressure Drop Mass Flow Meters and Controllers -The Whisper Series from Alicat

Alicat has developed the Whisper series mass flow meters and controllers, suitable for low pressure drop applications. When expensive systems/gases with very little total pressure are used, pressure drop becomes a major concern.

The Whisper series mass flow meters are particularly developed for such low pressure drop applications.

The Whisper series uses the patented LFE and flow cavity design to offer unparalleled performance with as little as 0.06 PSID. Both meters and controllers have full-scale flow rates from 0.5SCCM through 500SLPM.

Key Features

The main features of the Whisper Series are:

  • Fully functional digital display
  • Multiple parameter measurement: Volumetric flow, mass flow, volumetric flow, pressure, and temperature
  • No warm up time
  • Very low pressure drop operation
  • Viton seals
  • Option of 0-5VDC, 0-10VDC, or 1-5VDC analog output
  • Option of 0-5VDC, 0-10VDC, 1-5VDC, or 4-20mA analog input (controllers only)
  • Standard barrel type power connector
  • 8 pin mini din electronic connector
  • RS-232 Multi-drop digital output
  • RS-232 multi-drop digital input (controllers only)
  • 200:1 turndown ratio
  • NPT process connections
  • 30 user selectable on-board gas calibrations
  • User tunable PID valve tuning (controllers only)
  • Can be ordered in any flow range between 0.5SCCM and 500 SLPM
