Portable Calibration Unit (PCU) from Alicat

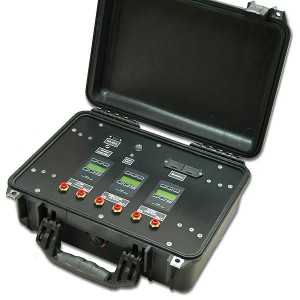

The Portable Calibration Unit (PCU) available from Alicat was designed as a portable, self contained secondary calibration standard for ease of use and transport.

While verifying calibration on in service flow systems, companies waste significant amount of time and money for equipment downtime. In contrast, Alicat PCUs are made to operate in the field as secondary calibration standards without the necessity for any hard power sources. In addition, the PCU is built into an industrial briefcase and can be taken anyplace and anywhere in the world to validate the operation of flow equipment.

Key Features

The main features of the Portable Calibration Unit are:

  • Auto switch when hard power is available and connected
  • 3 individual Alicat M series flow meters powered by two standard 9V batteries
  • 9-20VDC hard power connector for non-battery operation
  • Standard high accuracy calibration on all meters if range permits
  • Digital display for each meter
  • Display of volumetric flow, mass flow, temperature and pressure on each meter
  • LED low battery indicator
  • No large mechanical parts
  • Continuous flow reading
  • RS-232 digital output for digital communication and easy datalogging
  • Optional RS-485 output of all measured parameters
  • 30 on board user selectable gas calibrations
  • No need for special battery chargers or cables.
  • Available with FlowVisionSC software
